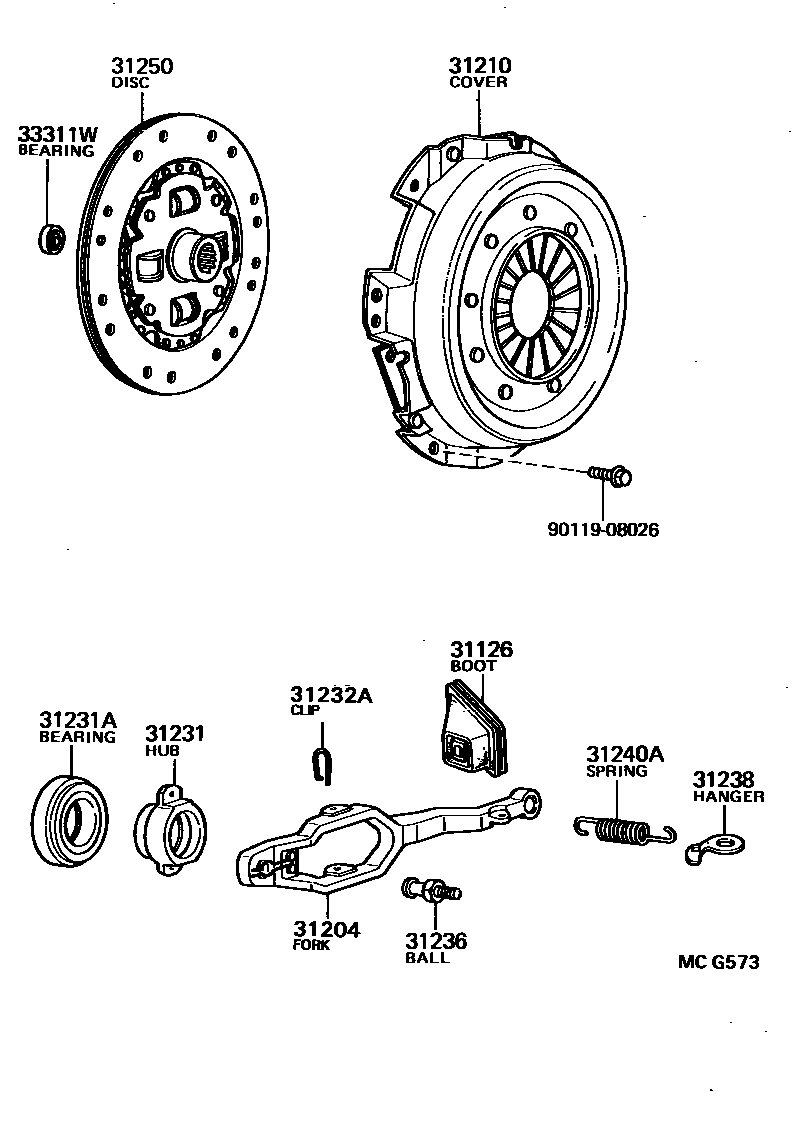

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iCR2#,3#,YR2#,3#..MTM198808-199201

main31126-20070iKR27199008-199201

main31126-27020iKR26198808-199008

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iCR2#,3#,YR2#,3#..MTM198808-199201

main31204-22040iKR27199008-199201

main31204-27011iKR26198808-199008

31210COVER ASSY, CLUTCH

main31210-12180iKR27199104-199201

sub31210-12181

main31210-22120iCR27,YR20,25,28..MTM198812-199201

sub31210-22121

main31210-27010iKR26198808-198907

main31210-27011iKR2#198907-199104

main31210-35080iCR27,YR20,25,28..MTM198808-198812

main31210-35090iCR21,28,3#,YR21,3#..5F198808-199201

sub31210-22100

31231HUB, CLUTCH RELEASE BEARING

main31231-27030iKR26198808-199008

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iKR26198808-199008

31232ACLIP, RELEASE BEARING HUB

main31232-30020×2iKR26198808-199008

main31232-35020iCR2#,3#,YR2#,3#..MTM198808-198911

main31232-35040iCR2#,3#,KR27,YR2#,3#..MTM198911-199201

31236BALL, RELEASE FORK

main31236-30060iCR2#,3#,KR2#,YR2#,3#..MTM198808-199201

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKR26198808-199008

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKR26198808-199008

31250DISC ASSY, CLUTCH

main31250-20114iCR27..5F198808-198811

main31250-20115iCR27..5F198812-199007

main31250-20116iCR27..5F199007-199201

sub31250-20117

main31250-20121iYR21,3#..5F198808-199201

sub31250-25122

main31250-27025iKR26198808-198910

sub31250-27060

main31250-27061iKR2#198910-199201

sub31250-28140

main31250-28021iCR36..5F198808-199201

sub31250-28022

main31250-28060iCR30,37..5F198808-199201

sub31250-28061

main31250-28070iCR21,28..5F198808-199201

sub31250-28071

main31250-35062iYR20,25,28..MTM198808-198811

main31250-35063iYR20,25,28..MTM198812-199007

main31250-35064iYR20,25,28..MTM199007-199201

sub31250-35065

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYR2#,3#..MTM198808-199201

sub90363-12024

main90363-12003iKR2#198808-199201

main90363-12004iCR2#,3#..5F198808-199201

9011908026

main90119-08026

12 parts on this diagram · 2 diagrams in section
