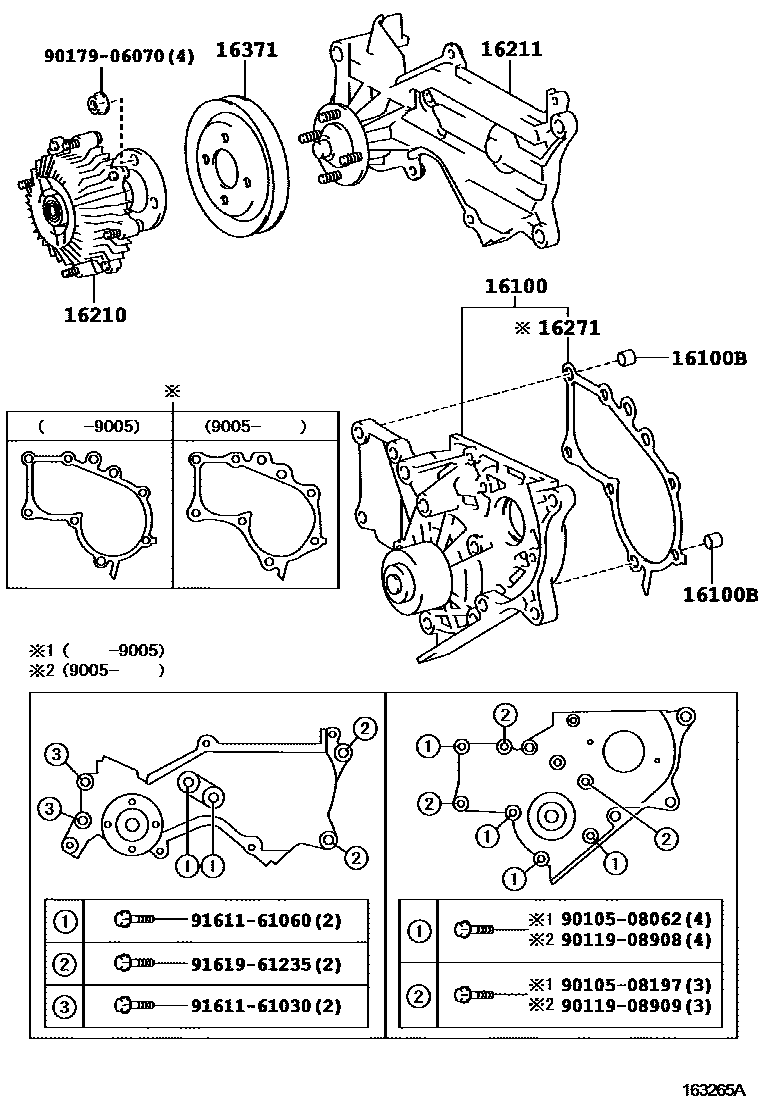

WATER PUMP

0001 1 0002 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-19155i4KJ..KR26198808-198912

sub16100-19156

main16100-19156i4KJ,5KJ..KR2#198912-199201

main16100-69085i2C#..CR2#,3#198808-198912

sub16100-69275

main16100-69275i2C#..CR2#,3#198912-199005

sub16100-64H00

sub16100-64H01

main16100-69295i2C#..CR2#,3#199005-199201

sub16100-69296

main16100-79036i2Y#,3YEU..YR2#,3#198808-199201

sub16100-79037

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i2C#..CR2#,3#198808-199201

16210COUPLING ASSY, FLUID

main16210-13010i4KJ..KR26198808-199008

main16210-31010i2YJ..YR25198808-199201

main16210-38050i5KJ..KR27199008-199201

main16210-64010i2C..CR27;2C..CR36..5F198808-199201

main16210-64020i2C..CR36..4FC;2CT..CR21,28,30,37198808-199201

main16210-73010i2YU,3YEU..YR20,21,28,3#198808-199201

16211BRACKET, FLUID COUPLING

main16307-64012i2C#..CR2#,3#198808-199008

main16307-64020i2C#..CR2#,3#199008-199201

sub16307-64021

16271GASKET, WATER PUMP

main16271-13021i4KJ..KR26198808-198912

sub16271-13030

main16271-13030i4KJ,5KJ..KR2#198912-199201

main16271-64010i2C#..CR2#,3#198808-198912

sub16271-64020

main16271-64020i2C#..CR2#,3#198912-199005

main16271-64030i2C#..CR2#,3#199005-199201

sub16271-64031

16371PULLEY, FAN

main16371-13010i4KJ,5KJ..KR2#198808-199201

main16371-64030i2C#..CR2#,3#198808-199008

main16371-64040i2C#..CR2#,3#199008-199201

main16371-73011i2Y#,3YEU..YR2#,3#198808-199201

9010508062

main90105-08062

9010508197

main90105-08197

9011908908

main90119-08908

9011908909

main90119-08909

9017906070

main90179-06070

9161161030

main91611-61030

9161161060

main91611-61060

9161961235

main91619-61235

14 parts on this diagram · 3 diagrams in section
