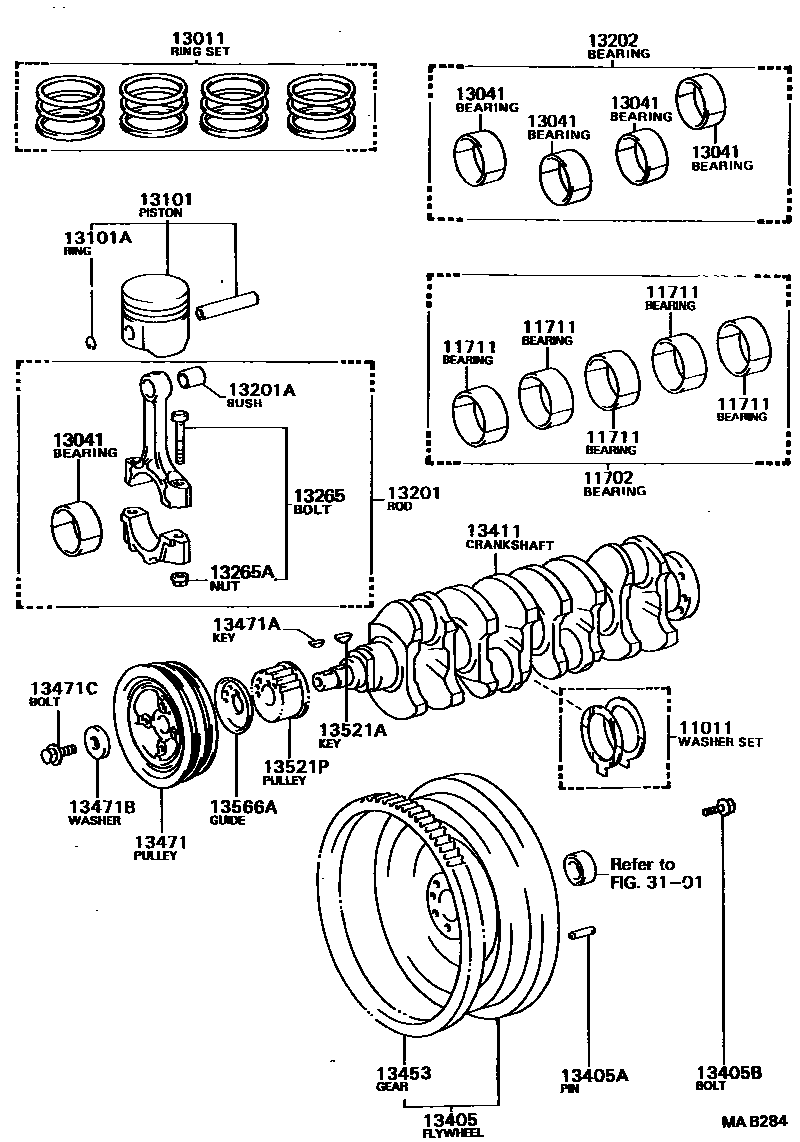

CRANKSHAFT & PISTON

0001 1 0002 1 0004 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-22011i4KJ,5KJ..KR2#198808-199201

main11011-25010i2Y#,3YEU..YR2#,3#198808-199201

main11011-64010i2C#..CR2#,3#198808-199201

main11012-22011i4KJ,5KJ..KR2#198808-199201

main11012-64010i2C#..CR2#,3#198808-199201

main11013-22011i4KJ,5KJ..KR2#198808-199201

main11013-64010i2C#..CR2#,3#198808-199201

11702BEARING SET, CRANKSHAFT

main11704-13011i4KJ,5KJ..KR2#198808-199201

sub11704-13012

main11704-64040i2CT..CR21,28,30,37198808-199008

sub11704-64070

main11704-64050i2C..CR27,36198808-199008

main11704-71020i2Y#,3YEU..YR2#,3#198808-199201

main11705-13011i4KJ,5KJ..KR2#198808-199201

sub11705-13012

11711BEARING, CRANKSHAFT

main11701-13011-03×5i4KJ,5KJ..KR2#198808-199201

MARK 3

sub11701-13012

main11701-13011-04×5i4KJ,5KJ..KR2#198808-199201

MARK 4

sub11701-13012

main11701-13011-05×5i4KJ,5KJ..KR2#198808-199201

MARK 5

sub11701-13012

main11701-13011-06×5i4KJ,5KJ..KR2#198808-199201

MARK 6

sub11701-13012

main11701-13011-07×5i4KJ,5KJ..KR2#198808-199201

MARK 7

sub11701-13012

main11701-64040-01i2CT..CR21,28,30,37198808-199008

MARK 1

sub11701-64070

main11701-64040-02×5i2C#..CR2#,3#199008-199201

MARK 2

sub11701-64070

main11701-64040-03×5i2C#..CR2#,3#199008-199201

MARK 3

sub11701-64070

main11701-64050-01×5i2C..CR27,36198808-199008

MARK 1

main11701-64050-02×5i2C..CR27,36198808-199008

MARK 2

main11701-64050-03×5i2C..CR27,36198808-199008

MARK 3

main11701-71020-01×5i2Y#,3YEU..YR2#,3#198808-199201

MARK 1

main11701-71020-02×5i2Y#,3YEU..YR2#,3#198808-199201

MARK 2

main11701-71020-03×5i2Y#,3YEU..YR2#,3#198808-199201

MARK 3

13011RING SET, PISTON

main13011-13030i4KJ..KR26198808-199008

main13011-13090i5KJ..KR27199008-199201

main13011-64190i2C..CR27,36198808-199201

main13011-64210i2CT..CR21,28,30,37198808-199201

main13011-71021i2Y#,3YEU..YR2#,3#198808-199201

sub13011-71012

main13013-13030i4KJ..KR26198808-199008

main13013-13090i5KJ..KR27199008-199201

main13013-64190i2C..CR27,36198808-199201

main13013-64210i2CT..CR21,28,30,37198808-199201

main13013-71021i2Y#,3YEU..YR2#,3#198808-199201

main13014-13030i4KJ..KR26198808-199008

main13014-71021i2Y#,3YEU..YR2#,3#198808-199201

main13015-13030i4KJ..KR26198808-199008

main13015-71021i2Y#,3YEU..YR2#,3#198808-199201

13041BEARING, CONNECTING ROD

main13041-13040-03×4i4KJ,5KJ..KR2#198808-199201

MARK 3

main13041-13040-04×4i4KJ,5KJ..KR2#198808-199201

MARK 4

main13041-13040-05×4i4KJ,5KJ..KR2#198808-199201

MARK 5

main13041-13040-06×4i4KJ,5KJ..KR2#198808-199201

MARK 6

main13041-13040-07×4i4KJ,5KJ..KR2#198808-199201

MARK 7

main13041-64041-01×4i2CT..CR21,28,30,37198808-199008

MARK 1

sub13041-64070

main13041-64041-02×4i2C#..CR2#,3#199008-199201

MARK 2

sub13041-64070

main13041-64041-03×4i2C#..CR2#,3#199008-199201

MARK 3

sub13041-64070

main13041-64050-01×4i2C..CR27,36198808-199008

MARK 1

main13041-64050-02×4i2C..CR27,36198808-199008

MARK 2

main13041-64050-03×4i2C..CR27,36198808-199008

MARK 3

main13041-71011-06×4i2Y#,3YEU..YR2#,3#198808-199201

MARK 6

sub13041-73010

main13041-71011-07×4i2Y#,3YEU..YR2#,3#198808-199201

MARK 7

sub13041-73010

main13041-71011-08×4i2Y#,3YEU..YR2#,3#198808-199201

MARK 8

sub13041-73010

13101PISTON SUB-ASSY, W/PIN

main13101-13030-01×4i5KJ..KR27199008-199201

main13101-13030-02×4i5KJ..KR27199008-199201

main13101-13030-03×4i5KJ..KR27199008-199201

main13101-24011-01×4i4KJ..KR26198808-199008

main13101-24011-02×4i4KJ..KR26198808-199008

main13101-24011-03×4i4KJ..KR26198808-199008

main13101-64110-01×4i2C..CR27,36198808-199201

main13101-64110-02×4i2C..CR27,36198808-199201

main13101-64110-03×4i2C..CR27,36198808-199201

main13101-64120-01×4i2CT..CR21,28,30,37198808-199006

main13101-64120-02×4i2CT..CR21,28,30,37198808-199006

main13101-64120-03×4i2CT..CR21,28,30,37198808-199006

main13101-64121-01×4i2CT..CR21,28,30,37199006-199201

main13101-64121-02×4i2CT..CR21,28,30,37199006-199201

main13101-64121-03×4i2CT..CR21,28,30,37199006-199201

main13101-72010-01×4i2Y#..YR20,25,28198808-199201

main13101-72010-02×4i2Y#..YR20,25,28198808-199201

main13101-72010-03×4i2Y#..YR20,25,28198808-199201

main13101-73010-01×4i3YEU..YR21,3#198808-199201

main13101-73010-02×4i3YEU..YR21,3#198808-199201

main13101-73010-03×4i3YEU..YR21,3#198808-199201

main13103-13030×4i5KJ..KR27199008-199201

main13103-24010×4i4KJ..KR26198808-199008

main13103-64110×4i2C..CR27,36198808-199201

main13103-64120×4i2CT..CR21,28,30,37198808-199006

main13103-64121×4i2CT..CR21,28,30,37199006-199201

main13103-72010×4i2Y#..YR20,25,28198808-199201

main13103-73010×4i3YEU..YR21,3#198808-199201

main13104-24010×4i4KJ..KR26198808-199008

main13104-72010×4i2Y#..YR20,25,28198808-199201

main13104-73010×4i3YEU..YR21,3#198808-199201

main13105-24010×4i4KJ..KR26198808-199008

main13105-72010×4i2Y#..YR20,25,28198808-199201

main13105-73010×4i3YEU..YR21,3#198808-199201

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-21088×8i4KJ,5KJ..KR2#198808-199201

main90521-29003×8i2C#..CR2#,3#198808-199201

13201ROD SUB-ASSY, CONNECTING

main13201-13010×4i4KJ,5KJ..KR2#198808-199201

main13201-69065×4i2C..CR27,36198808-199008

sub13201-69135

main13201-69075×4i2CT..CR21,28,30,37198808-199201

sub13201-69076

main13201-69115×4i2C..CR27,36199008-199201

sub13201-69076

main13201-71011×4i2Y#..YR20,25,28198808-199201

main13201-79045×4i3YEU..YR21,3#198808-199201

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73070×4i4KJ,5KJ..KR2#198808-199201

main90999-73102×4i2C#..CR2#,3#198808-199201

sub90999-73138

13202BEARING SET, CONNECTING ROD

main13204-13040i4KJ,5KJ..KR2#198808-199201

main13204-64041i2CT..CR21,28,30,37198808-199008

sub13204-64070

main13204-64050i2C..CR27,36198808-199008

main13204-71011i2Y#,3YEU..YR2#,3#198808-199201

sub13204-73010

main13205-13040i4KJ,5KJ..KR2#198808-199201

main13206-13040i4KJ,5KJ..KR2#198808-199201

13265BOLT, CONNECTING ROD

main13265-29025×8i2Y#,3YEU..YR2#,3#198808-199201

main13265-49015×8i2C#..CR2#,3#198808-199201

main13265-70020×8i4KJ,5KJ..KR2#198808-199201

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i2Y#,3YEU..YR2#,3#198808-199201

main90179-09006×8i4KJ,5KJ..KR2#198808-199201

main90179-10042×8i2C#..CR2#,3#198808-199201

13405FLYWHEEL SUB-ASSY

main13405-29125i4KJ,5KJ..KR2#198808-199201

main13405-64031i2C#..CR21,28,3#..5F198808-199201

main13405-64040i2C..CR27..5F198808-199201

main13405-71011i2YJ..YR25..MTM198903-199201

main13405-72011i2YU,3YEU..YR20,21,28,3#..MTM198903-199201

main13405-79045i2YU,3YEU..YR20,21,28,3#..MTM198808-198902

main13405-79055i2YJ..YR25..MTM198808-198902

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i2C#..CR2#,3#..5F198808-199201

main90250-08120×3i4KJ,5KJ..KR2#198808-199201

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i2Y#,3YEU..YR2#,3#..MTM198808-199201

main90105-10045×8i2C#..CR2#,3#..5F198808-199201

main90913-01005×6i4KJ,5KJ..KR2#198808-199201

13411CRANKSHAFT

main13411-13900i4KJ,5KJ..KR2#198808-199201

sub13411-13903

main13411-64900i2C#..CR2#,3#198808-199104

main13411-64901i2C#..CR2#,3#199104-199201

sub13411-64904

main13411-72010i2Y#..YR20,25,28198808-199201

sub13411-72900

main13411-73010i3YEU..YR21,3#198808-199201

sub13411-73900

13453GEAR, FLYWHEEL RING

main13453-10010i4KJ,5KJ..KR2#198808-199201

main13453-20010i2Y#,3YEU..YR2#,3#..MTM198808-199201

main13453-64011i2C#..CR2#,3#..5F198808-199201

13471PULLEY, CRANKSHAFT

main13408-13010i4KJ,5KJ..KR2#198808-199201

main13408-64050i2C#..CR2#,3#198808-199008

main13408-64080i2C#..CR2#,3#199008-199201

main13408-73010i2Y#,3YEU..YR2#,3#198808-199201

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i2Y#,3YEU..YR2#,3#198808-199201

main95161-20516i2C#..CR2#,3#198808-199201

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90201-14007i2C..CR27..4FC..D198808-199006

main90201-14030i2C#..CR2#,3#199006-199105

main90209-13003i4KJ,5KJ..KR2#198808-199201

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i4KJ,5KJ..KR2#198808-199201

main90105-14013i2Y#,3YEU..YR2#,3#198808-198901

main90105-14069i2Y#,3YEU..YR2#,3#198901-199201

main90105-14077i2C#..CR2#,3#199006-199105

main90105-14089i2C#..CR2#,3#199105-199201

main91511-61435i2C#..CR2#,3#198808-199006

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-13020i4KJ,5KJ..KR2#198808-199201

main13521-33010i2Y#,3YEU..YR2#,3#198808-199201

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i2Y#,3YEU..YR2#,3#198808-199201

main95161-20622i2C#..CR2#,3#198808-199201

sub95161-30622

13521PPULLEY, CRANKSHAFT TIMING

main13521-64010i2C#..CR2#,3#198808-199105

main13521-64011i2C#..CR2#,3#199105-199201

13566AGUIDE, TIMING BELT

main13566-64010i2C#..CR2#,3#198808-199102

main13566-64011i2C#..CR2#,3#199102-199201
