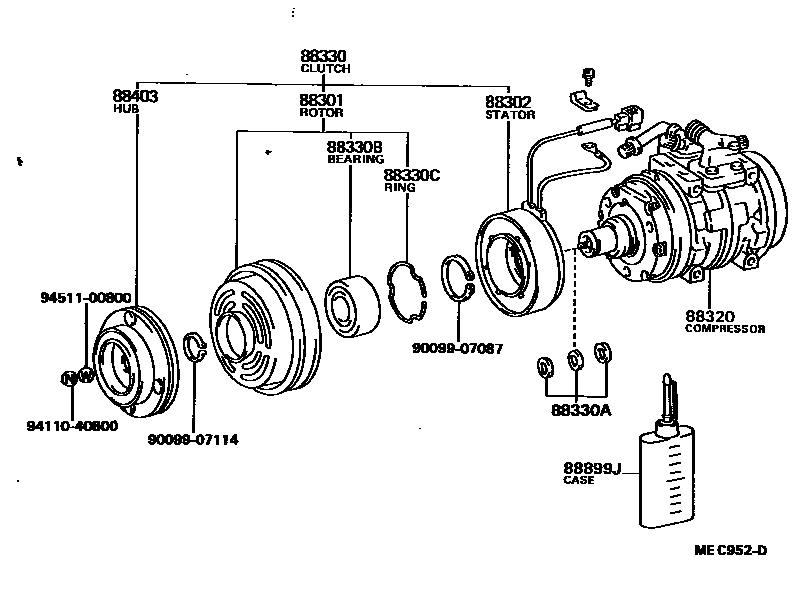

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iKR26198211-198508

main88412-20070iCR21,27..4FC198408-198508

main88412-22030iYR2#198211-198508

main88412-28010iCR21,26..5F198211-198508

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iCR2#,YR2#198211-198508

main88411-14060iKR26198211-198508

88320COMPRESSOR ASSY, COOLER

main88320-27080iCR3#198510-198808

main88320-28030iYR20,26,28..B,D,N198508-198808

sub88320-28031

main88320-28040iCR2#198211-198808

main88320-28060iKR26198211-198508

main88320-28080iYR20..MRF..08S;YR20..HRF..5F..G;YR20,21..HRF..(E,Q)198508-198808

main88320-28100iKR26198508-198808

88330CLUTCH ASSY, MAGNET

main88410-14110iKR26198211-198508

main88410-14120iCR2#,3#198508-198808

main88410-22080iYR2#198211-198508

sub88410-60140

main88410-28010iCR21,26..5F198211-198508

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iCR2#,3#,KR26,YR2#,3#198211-198808

88330BBEARING, MAGNET CLUTCH

main90099-10133iCR2#,YR2#198211-198508

main90099-10135iKR26198211-198508

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iKR26,YR2#,3#198211-198808

main90099-07118iCR2#,3#198211-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iCR2#,YR2#198211-198508

main88403-14040iKR26198211-198508

88899JCASE, OIL

main88899-87011iCR21,YR20,21..E,G,Q,X198211-198808

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

13 parts on this diagram · 3 diagrams in section
