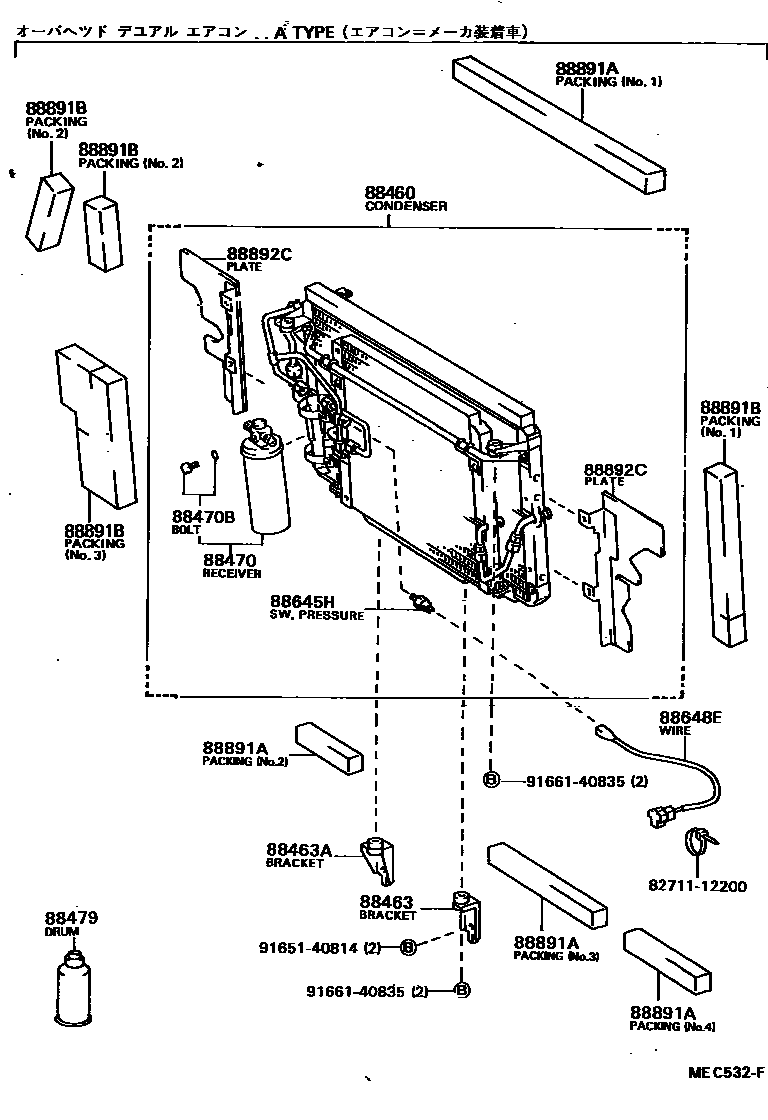

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1

88460CONDENSER ASSY, COOLER

main88450-87002iYR20,21..Q198211-198508

A TYPE

main88450-87007iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

NO.2

sub88450-87005

main88460-87006iCR2#,KR26,YR20,26..D,E,G,N,R198211-198508

B TYPE

main88460-87007iCR21,YR20,21..E,G,Q,X198211-198508

B TYPE,W/*ODAC

main88460-87008iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

NO.1

main88460-95D00iYR3#198510-198808

NO.2

main88460-95D01iCR30198510-198808

main88460-95D03iCR36,37198510-198808

NO.1

main88460-95D04iCR30..4FC198708-198808

NO.1,W/SUB RADIATOR

main88460-95D05iCR30..4FC198708-198808

NO.2,W/SUB RADIATOR

88463BRACKET, COOLER CONDENSER, NO.1

main88463-87008×2iYR20,21..Q198211-198508

A TYPE

main88463-87010iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main88463-87012iCR2#,KR26,YR2#198211-198508

B TYPE

main88688-95D05iYR3#198510-198808

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main88463-87011iYR20,21..Q198211-198508

A TYPE

main88463-87013iCR2#,KR26,YR2#198211-198508

B TYPE

main88688-95D12iYR3#198510-198808

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iCR2#,KR26,YR2#198211-198808

sub04884-33110

main88471-16010iCR3#,YR3#198510-198808

88470BBOLT, FUSE

main88475-12020iCR30,36,YR3#198510-198808

main90099-04579iCR2#,KR26,YR2#198211-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×4iCR2#,3#,KR26,YR2#,3#198211-198808

sub90986-02004

sub90986-02005

88645HSWITCH, PRESSURE NO.1

main88645-12010iCR21,26,KR26,YR20,26..D,E,G,N,R198211-198508

sub88645-12020

main88645-90D01iYR20..MRF..08S;YR20..HRF..5F..G;YR20,21..HRF..(E,Q)198508-198808

W/*ODAC

sub88645-10020

88648EWIRING, COOLER

main88648-28070iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

W/*ODAC OR W/*AAC

main88648-87004iCR2#,KR26,YR2#198211-198508

main88648-87018iCR30,36,YR3#198508-198808

main88648-95D01iCR37198708-198808

W/SINGLE AIR CONDITIONER

main88648-95D03iCR30..4FC198805-198808

W/SUB RADIATOR

88891APACKING A (FOR COOLER)

main88578-87001iCR21,26,27,KR26,YR20,21,26198211-198808

NO.1

sub88899-95407

main88578-87003iCR2#,YR2#198211-198508

NO.3

main88578-87004iCR21,26,27,KR26,YR20,21,26198211-198808

NO.4

main88578-87005iCR21,26,27,YR20,21,26198211-198808

NO.2

main88578-87006iCR21,26,27,KR26,YR20,21,26198211-198808

NO.5

main88578-87007iKR26198211-198508

NO.3

main88578-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

NO.3

88891BPACKING B (FOR COOLER)

main88893-28010iYR20,21..Q198309-198408

NO.3

main88893-28020×2iYR20,21..Q198309-198408

NO.2

main88893-28030iYR21198408-198508

NO.1

main88893-28040iCR21,YR20..E,G,Q,X198408-198508

NO.1

88892CPLATE, CONDENSER, NO.1

main88362-87001iCR2#,KR26,YR2#198211-198508

RH

main88362-87002iCR2#,KR26,YR2#198211-198508

LH

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9165140814

main91651-40814

9166140835

main91661-40835
