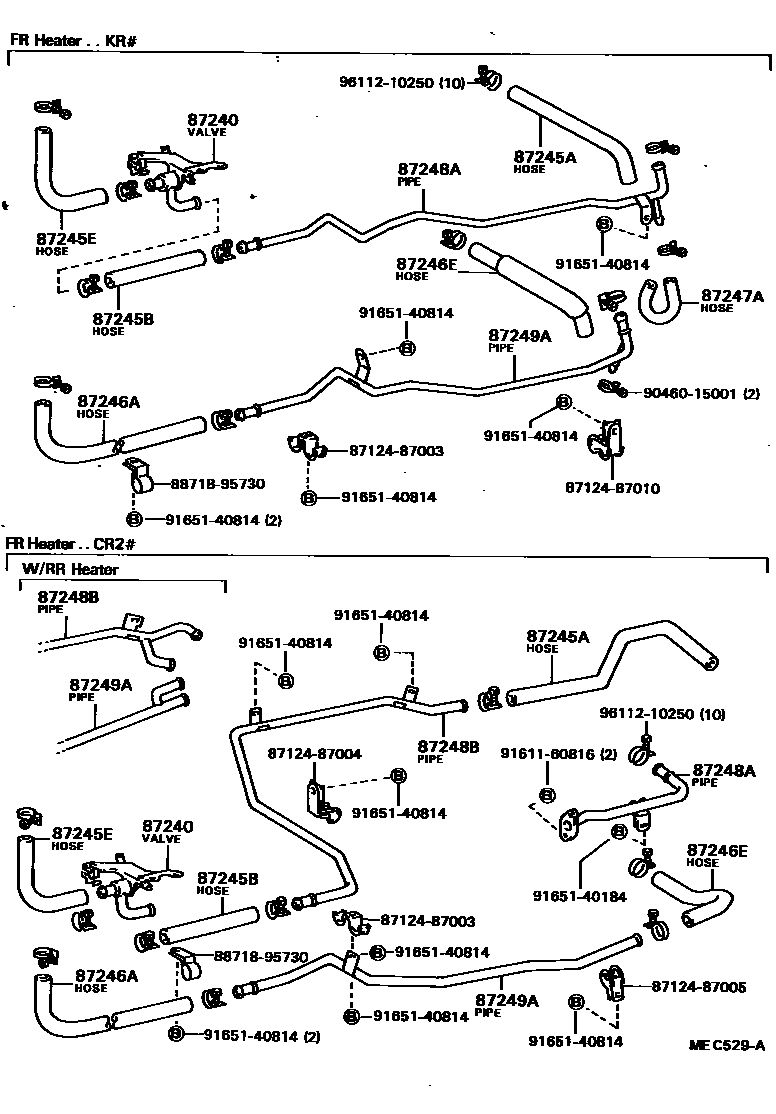

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

87240VALVE ASSY, HEATER WATER

main87240-87008iCR2#,KR26,YR2#198211-198508

main87240-87009iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198708

main87240-87010iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198708-198808

main87240-95D00iCR3#,YR3#198510-198708

87245AHOSE, HEATER WATER, INLET A

main87245-87014iYR2#198211-198808

main87245-87015iCR2#198211-198508

main87245-87020iKR26198211-198808

main87245-87030iCR2#198508-198808

main87245-95D09iYR3#198510-198808

main87245-95D11iCR3#198510-198808

87245BHOSE, HEATER WATER, INLET B

main99552-30500iCR2#,KR26,YR2#198211-198308

*H,L=400

main99556-30500iCR3#,YR3#198510-198708

87245EHOSE, HEATER WATER, INLET E

main99552-30200iCR2#,KR26,YR2#198211-198408

*H,L=180

sub99556-30200

main99556-30165iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198607-198808

sub99556-30200

main99556-30180iCR2#,3#,KR26,YR2#,30198408-198607

sub99556-30200

87246AHOSE, HEATER WATER, OUTLET A

main87245-87024iCR2#,KR26,YR2#198211-198508

sub99552-31000

main87245-87031iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198602-198808

main99556-30980iCR3#,YR3#198602-198808

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-87016iYR2#198211-198808

main87245-87017iCR2#198211-198808

main87245-87021iKR26198211-198808

main87245-95D08iYR3#198510-198808

main87245-95D10iCR3#198510-198808

87247AHOSE, HEATER WATER, A

main87245-87022iKR26198211-198808

87248APIPE, HEATER WATER INLET, A

main87208-28010iYR2#,3#198211-198808

main87208-28030iCR2#198211-198307

main87208-28031iCR2#198307-198508

main87208-87013iKR26198211-198808

87248BPIPE, HEATER WATER INLET, B

main87208-87002iYR26..V4D..N198211-198508

W/RR HEATER

sub87208-28070

main87208-87003iCR21,27;CR26..V4D..05S198211-198508

W/RR HEATER

main87208-87004iYR20,26..D,N198211-198508

main87208-87009iCR2#..D,N198211-198508

main87208-87018iCR2#..B,D,N198508-198808

main87208-87019iYR26..V4D..N198508-198808

W/RR HEATER

main87208-87020iYR20,26,28..B,D,N198508-198808

main87208-87023iCR21,27,28198508-198808

W/RR HEATER

main87208-95D04iYR36198608-198808

main87208-95D05iYR3#198510-198808

W/RR HEATER

main87208-95D06iCR36,37198510-198808

main87208-95D07iCR36..V4D..05S198510-198808

W/RR HEATER

87249APIPE, HEATER WATER OUTLET, A

main87208-87005iCR21,28,YR20,21,28198211-198808

W/RR HEATER

main87208-87007iCR2#,YR20,26,28..B,D,N198211-198808

main87208-87014iKR26198211-198808

main87208-95D01iYR3#198510-198808

W/RR HEATER

main87208-95D02iCR36,37198510-198808

main87208-95D03iCR36..V4D..05S198510-198808

W/RR HEATER

main87208-95D11iYR36198608-198808

8712487003CLAMP, HEATER

main87124-87003

8712487004CLAMP, HEATER

main87124-87004

8712487005CLAMP, HEATER

main87124-87005

8712487010CLAMP, HEATER

main87124-87010

8871895730PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95730

9046015001

main90460-15001

9161160816

main91611-60816

9165140184

main91651-40184

9165140814

main91651-40814

9611210250

main96112-10250

20 parts on this diagram · 3 diagrams in section
