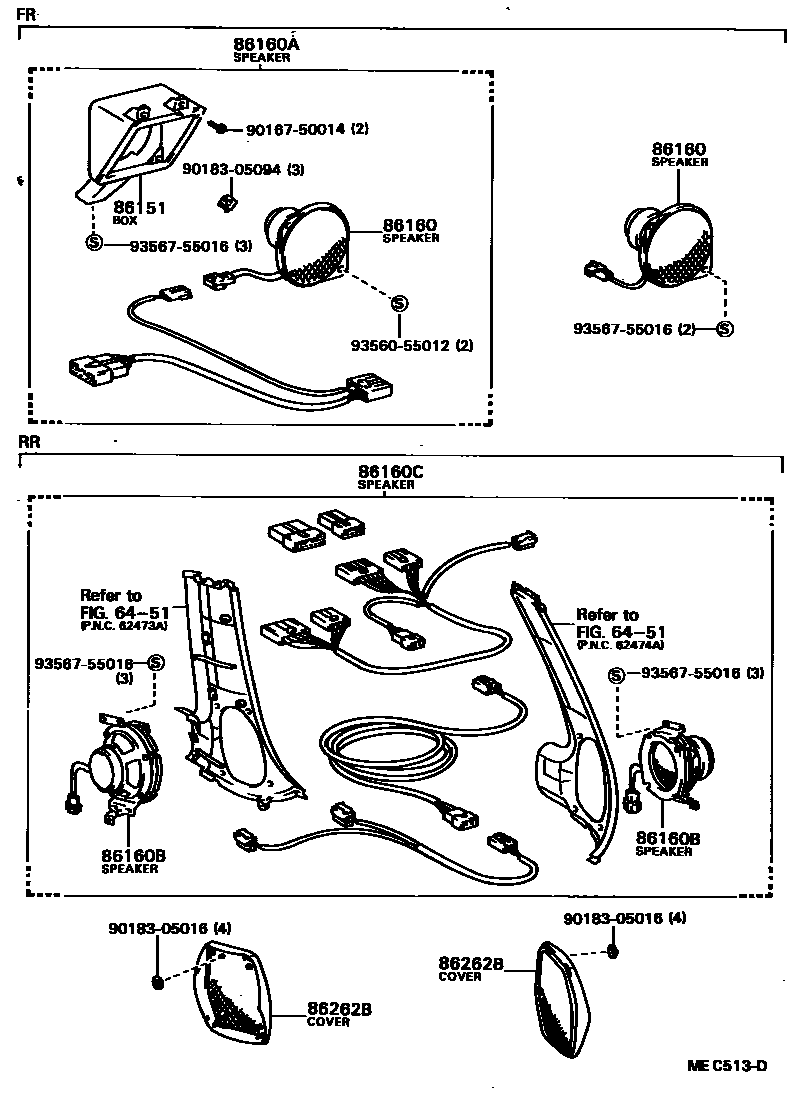

SPEAKER

0001 1 0002 1 0003 1 0004 1 0005 1

6451

86151BOX, SPEAKER

main86151-87001iYR36198211-198808

86160SPEAKER ASSY, FRONT NO.1

main86160-10140iCR2#,3#,KR26,YR2#,3#198211-198808

main86160-10140iCR21,YR2#..4FC,5F198211-198311

W/SPEAKER BOX

main86160-87011iCR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30..B,E,G,N,Q,X198311-198808

W/SPEAKER BOX

86160ASPEAKER SET, FRONT

main86150-29015iCR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30..B,E,G,N,Q,X198211-198808

STEREO,2 SPEAKER

main86150-29015iCR37,YR36198608-198808

86160BSPEAKER ASSY, REAR

main86160-87007iCR21,30,YR20,21,30..07S198211-198808

RH

main86160-87008iCR21,30,YR20,21,30..07S198211-198808

LH

86160CSPEAKER SET, REAR

main86160-29515iCR21,YR20,21,30..07S198211-198808

GRAY

main86160-29525iYR20,21..07S198211-198408

BEIGE

main86160-29745iCR21,YR20,21,30..07S198408-198808

BEIGE

86262BCOVER, SPEAKER, REAR

main86225-87001-03iCR21,30,YR20,21,30..07S198211-198808

RH,GRAY,GRAY,TRIM1#,8#

sub86225-87001

main86225-87001-05iYR20,21..07S198211-198408

RH,BEIGE,BEIGE,TRIM4#

sub86225-87001

main86225-87001-15iYR20,21..07S198408-198508

RH,BEIGE,BEIGE,TRIM4#

sub86225-87001

main86225-87001-25iCR21,30,YR20,21,30..Q198508-198808

RH,BEIGE,BEIGE,TRIM4#

sub86225-87001

main86226-87001-03iCR21,30,YR20,21,30..07S198211-198808

LH,GRAY,GRAY,TRIM1#,8#

sub86226-87001

main86226-87001-05iYR20,21..07S198211-198408

LH,BEIGE,BEIGE,TRIM4#

sub86226-87001

main86226-87001-15iYR20,21..07S198408-198508

LH,BEIGE,BEIGE,TRIM4#

sub86226-87001

main86226-87001-25iCR21,30,YR20,21,30..Q198508-198808

LH,BEIGE,BEIGE,TRIM4#

sub86226-87001

9016750014

main90167-50014

9018305016

main90183-05016

9018305094

main90183-05094

9356055012

main93560-55012

9356755016

main93567-55016

12 parts on this diagram · 5 diagrams in section
