RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

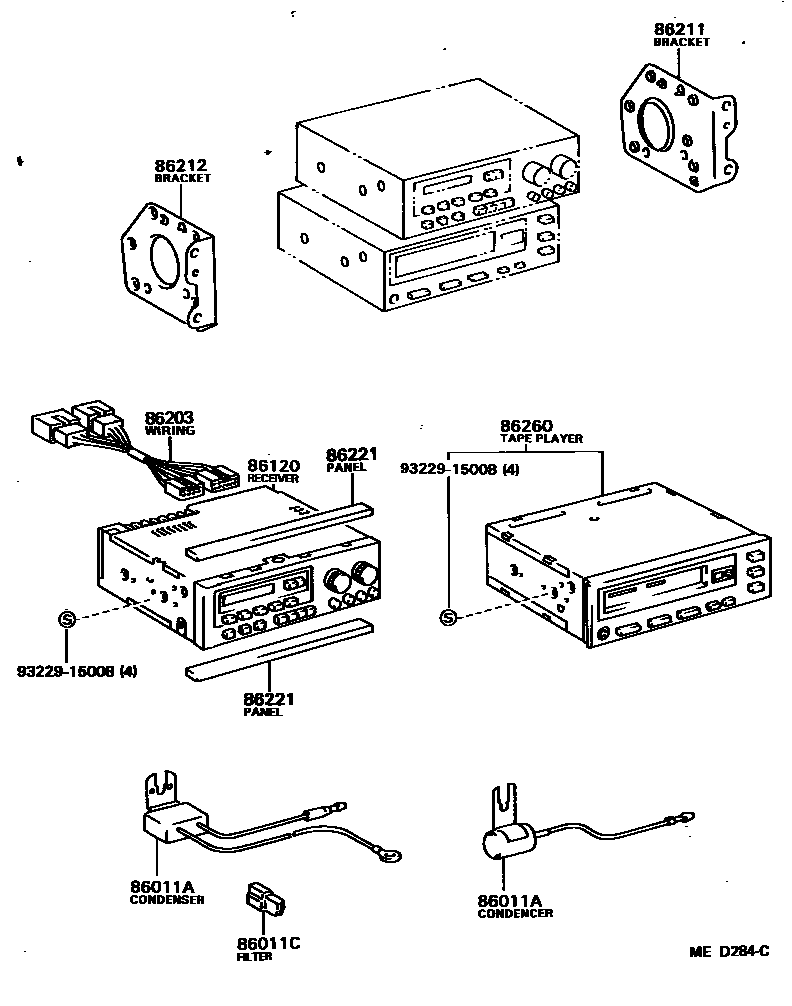

86011ACONDENSER, RADIO SETTING

main90980-04010iCR2#,KR26,YR20,26198211-198808

REGULATOR

main90980-04033iKR26198211-198808

IG COIL

86011CFILTER, NOISE

main90980-05073iCR3#,YR3#198510-198808

STOP LAMP SWITCH

86120RECEIVER ASSY, RADIO

main86120-14420iCR2#,KR26..D,E198211-198406

AM

sub86120-14421

main86120-14421iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,30..02S,03S,05S,06S,08S198406-198608

AM

sub86120-10260

sub86203-20180

main86120-14720iCR21,30,YR21,30..Q198702-198808

*26

main86120-16350iCR21,30,YR21,30..08S198608-198808

sub86120-10290

main86120-19015iCR2#,YR2#..E,G,N198211-198412

*37

sub86120-19016

main86120-19016iYR20..HRF..E;YR20..MRF..08S;YR20..HRF..5F..G;CR2#,3#,YR21,26,28,30..B,E,G,N198412-198608

main86120-19025iYR20,21..07S198211-198508

*29

main86120-19036iYR20,21..07S198211-198508

*26

main86120-20310iCR21,30,YR20,21..Q198508-198608

*26

main86120-20530iCR21,30,YR20,21,30..Q198508-198808

*29

main86120-32170iCR21,30,YR21,30..Q198608-198702

*26

sub86120-14720

main86120-32190iYR20..HRF..E;YR20..MRF..08S;YR20..HRF..5F..G;CR2#,30,37,YR21,26,28,3#..B,E,G,N198608-198808

86203WIRE, RADIO

main86203-16060iCR21,30,YR21,30..Q198608-198808

86211BRACKET, RADIO, NO.1

main86211-87003iCR2#,3#,KR26,YR2#,3#198211-198808

86212BRACKET, RADIO, NO.2

main86212-87002iCR2#,3#,KR26,YR2#,3#198211-198808

86221PANEL, STEREO COMPONENT

main86221-12020iCR2#,KR26,YR20,26198211-198308

86260TAPE PLAYER ASSY

main86260-19015iCR26,36,KR26,YR26;CR21,27,28,30,YR20,21,28,30..B,E,G,N198211-198608

W/3-SPEAKER

sub86260-90B09

sub86203-16100

sub86203-20180

main86260-19025iYR20,21..07S198211-198508

W/5-SPEAKER

main86260-19105iYR20..HRF..E;YR20..MRF..08S;YR20..HRF..5F..G;CR21,30,YR21,30..E,G198608-198808

W/3-SPEAKER

main86260-29115iCR21,30,YR20,21,30..HRF..(E,Q)198211-198808

SUPER SPACE COMPONENT

main86260-29155iCR21,30,YR20,21,30..Q198508-198808

W/5-SPEAKER

9322915008

main93229-15008
