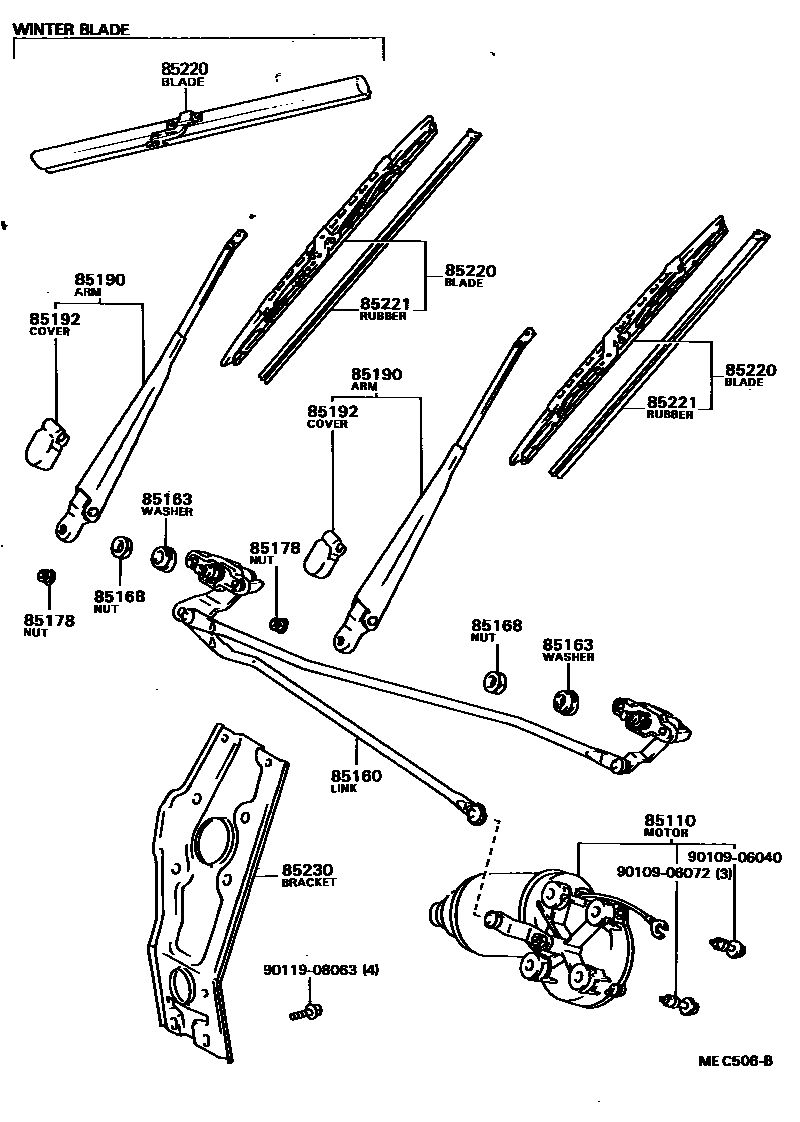

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-87006iCR26,KR26,YR2#..D,G,N,R198211-198808

main85110-87007iCR21,YR20,21..E,Q,X198211-198408

85160LINK ASSY, WINDSHIELD WIPER

main85160-87003iCR2#,3#,KR26,YR2#,3#198211-198808

85163PACKING, WINDSHIELD WIPER PIVOT

main85179-87002iCR2#,3#,KR26,YR2#,3#198211-198808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90099-05141iCR2#,3#,KR26,YR2#,3#198211-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iCR2#,3#,KR26,YR2#,3#198211-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-87003iCR26,KR26,YR2#198211-198301

RH

sub85190-87010

main85190-87010iCR2#,KR26,YR2#198301-198401

RH

main85190-87012iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198601-198808

RH

main85190-87013iCR2#,3#,KR26,YR2#,30198401-198601

RH

main85210-87001iCR26,KR26,YR2#198211-198301

LH

sub85210-87002

main85210-87002iCR2#,KR26,YR2#198301-198401

LH

sub85210-87006

main85210-87006iCR2#,3#,KR26,YR2#,3#198401-198808

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iCR2#,3#,KR26,YR2#,3#198401-198808

main85195-28010iCR2#,KR26,YR2#198211-198401

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12620iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198608-198808

WINTER BLADE,RH & LH

sub85291-12010

main85220-16160iCR2#,KR26,YR2#198211-198401

RH

sub85220-16410

main85220-16170iCR2#,KR26,YR2#198211-198401

LH

sub85220-16420

main85220-16410iCR2#,3#,KR26,YR2#,3#198401-198808

RH

sub85220-16411

main85220-16420iCR2#,3#,KR26,YR2#,3#198401-198808

LH

sub85220-16421

main85220-24040iCR2#,3#,KR26,YR2#,30198211-198608

WINTER BLADE,RH & LH

sub85291-24010

85221BLADE, WINDSHIELD WIPER

main85221-30080iCR2#,KR26,YR2#198211-198309

sub85223-12690

main85221-30120iCR2#,3#,KR26,YR2#,3#198309-198808

sub85221-40040

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-87003iCR2#,3#,KR26,YR2#,3#198211-198808

9010906040

main90109-06040

9010906072

main90109-06072

9011908063

main90119-08063

13 parts on this diagram · 1 diagram in section
