BODY STRIPE

0001 1 0003 1 0005 1 0007 1 0008 1 0010 1 0011 1WHITE WAGON 0012 1WHITE EXTRA 0013 1WHITE EXTRA,SURF SPECIAL 0014 1WHITE EXTRA 0015 1SURF SPECIAL 0018 1SURF SPECIAL 0019 1 0021 1

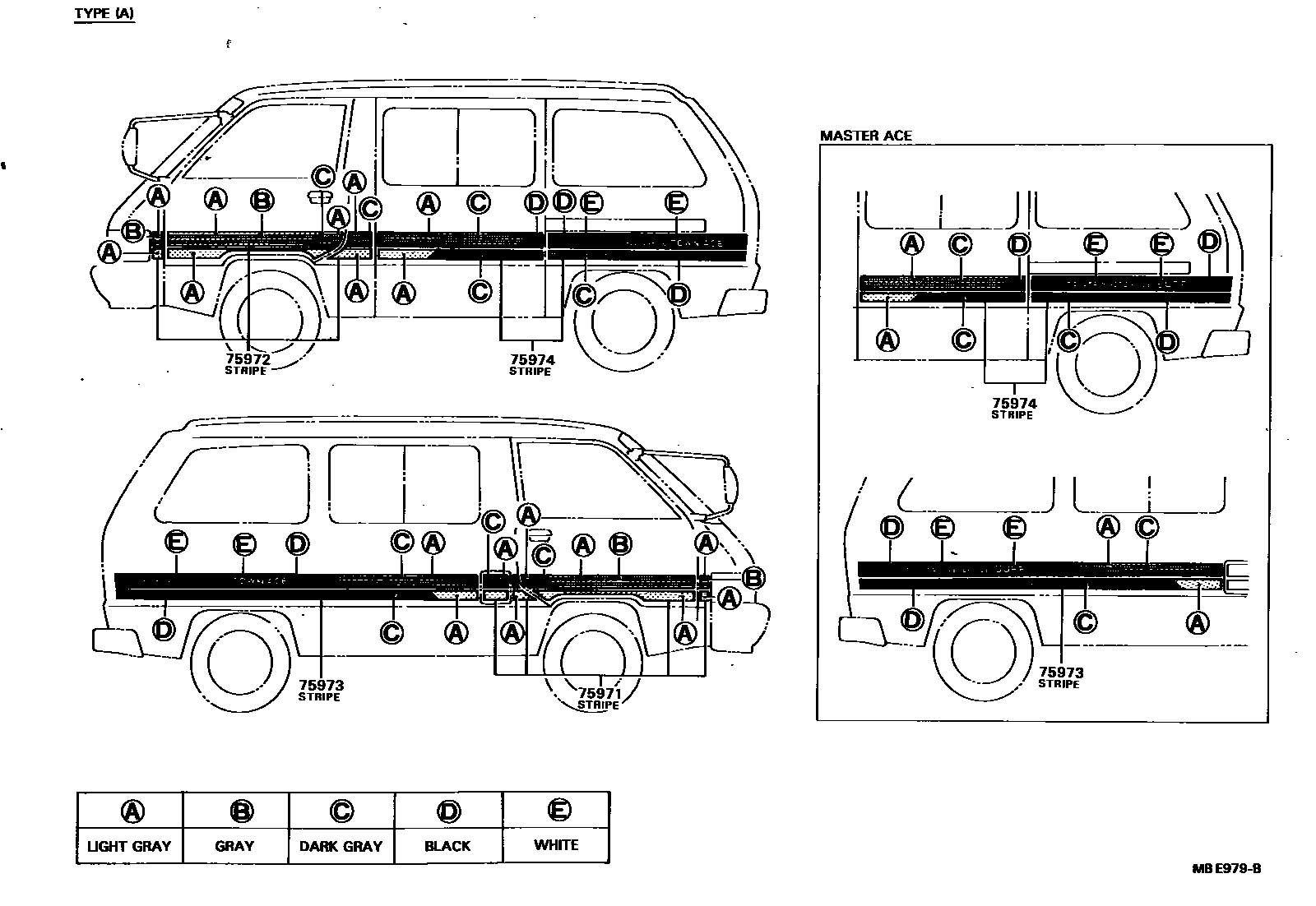

75971STRIPE, SIDE, RH NO.1

main75981-95D00-03iCR30,YR30198510-198808

SILVER,SILVER

main75981-95D00-06iCR30,YR30198510-198808

GOLD,GOLD

main75981-95D01iCR30,YR30..E198610-198611

SURF SPECIAL

main75981-95D02iCR30,YR30..E198610-198611

LIMITED EDITION

main75981-95D03iCR30,YR30..E198612-198708

SURF SPECIAL

main75981-95D04iCR30,YR30..E198704-198708

WHITE EXTRA

main75981-95D05iCR30,YR30..E198709-198712

SURF SPRCIAL

main75981-95D06iCR30,YR30..E198709-198803

WHITE EXTRA

main75981-95D07iCR30,YR30..E198801-198803

SURF SPRCIAL

main75981-95D08iCR30,YR30..E198804-198808

SURF SPRCIAL

main75981-95D09iCR30,YR30..E198804-198808

WHITE EXTRA

main75985-87040iCR21,YR20,21..G198211-198508

(A)

sub75985-87059

main75985-87041iCR21,YR20..E198211-198508

(B),TOWN ACE

sub75985-87061

main75985-87042iCR21,YR20,21..G198211-198508

(B),MASTER ACE

sub75985-87062

main75985-87043iCR21,YR20,21..07S,08S198211-198508

(C),TOWN ACE

sub75985-87065

main75985-87044iCR21,YR20,21..G198211-198508

(C),MASTER ACE

sub75985-87066

main75985-87045iCR21,YR20,21..E,G,Q,X198211-198508

(D),BLACK & SILVER

sub75985-87069

main75985-87046iYR20..G198211-198508

(D),SILVER & SILVER

sub75985-87070

main75985-87047iCR21,YR20,21..E,G,Q,X198211-198504

(D),BLACK & BLACK

sub75985-87071

main75985-87047-01iYR20..MRF..08S;YR20..HRF..5F..G;YR20..HRF..(E,Q,X);CR21,YR21..E,G,Q,X198504-198508

(D),BLACK & BLACK,BLACK

sub75985-87047

sub75985-87071

main75985-87047-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,MAROON,MAROON

sub75985-87047

sub75985-87071

main75985-87047-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,DEEP BLUE,DEEP BLUE

sub75985-87047

sub75985-87071

main75985-87050iYR20..MRF..5F..G198310-198311

WHITE WAGON

main75985-87051iYR20..HRF..E198404-198405

WHITE EXTRA

main75985-87052iCR21,YR20,21..E,Q,X198408-198508

(A)

sub75985-87060

main75985-87053iCR21,YR20,21..E,Q,X198408-198508

(B),TOWN ACE

sub75985-87063

main75985-87054iCR21,YR20,21..E,Q,X198408-198508

(B),MASTER ACE

sub75985-87064

main75985-87055iCR21,YR20,21..E,Q,X198408-198508

(C),TOWN ACE

sub75985-87067

main75985-87056iCR21,YR20,21..E,Q,X198408-198508

(C),MASTER ACE

sub75985-87068

main75985-87059iYR20..HRF..5F..G;CR21,YR20..MRF..G198508-198608

(A)

main75985-87060iCR21,YR20,21..E,Q198508-198808

(A)

main75985-87061iYR20..HRF..5F..G;CR21,YR20..MRF..G198508-198608

(B),TOWN ACE

main75985-87062iYR20..HRF..5F..G;CR21,YR20..MRF..G198508-198608

(B),MASTER ACE

main75985-87063iCR21,YR20,21..E,Q198508-198808

(B),TOWN ACE

main75985-87064iYR20..HRF..E;YR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..5F..G198508-198808

(B),MASTER ACE

main75985-87065iYR20..HRF..5F..G;CR21,YR20..MRF..G198508-198608

(C),TOWN ACE

main75985-87066iYR20..HRF..5F..G;CR21,YR20..MRF..G198508-198608

(C),MASTER ACE

main75985-87067iCR21,YR20,21..E,Q198508-198808

(C),TOWN ACE

main75985-87068iCR21,YR20,21..E,Q198508-198808

(C),MASTER ACE

main75985-87069iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(D),BLACK & SILVER

main75985-87070iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(D),SILVER & SILVER

main75985-87071iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(D),BLACK & BLACK

main75985-87074iCR21,YR20,21..HRF..E198604-198608

WHITE EXTRA

main75985-87076iCR21,YR20,21..HRF..E198610-198611

LIMITED EDITION

main75985-87077iCR21,YR20,21..HRF..E198610-198611

SURF SPECIAL

main75985-87078iCR21,YR20,21..HRF..E198704-198708

WHITE EXTRA

main75985-87079iCR21,YR20,21..HRF..E198709-198803

WHITE EXTRA

main75985-87G01iCR21,YR20,21..E198804-198808

WHITE EXTRA

75972STRIPE, SIDE, LH NO.1

main75982-95D00-03iCR30,YR30198510-198808

SILVER,SILVER

main75982-95D00-06iCR30,YR30198510-198808

GOLD,GOLD

main75982-95D01iCR30,YR30..E198610-198611

SURF SPECIAL

main75982-95D02iCR30,YR30..E198610-198611

LIMITED EDITION

main75982-95D03iCR30,YR30..E198612-198708

SURF SPECIAL

main75982-95D04iCR30,YR30..E198704-198708

WHITE EXTRA

main75982-95D05iCR30,YR30..E198709-198712

SURF SPECIAL

main75982-95D06iCR30,YR30..E198709-198803

WHITE EXTRA

main75982-95D07iCR30,YR30..E198801-198803

SURF SPECIAL

main75982-95D08iCR30,YR30..E198804-198808

SURF SPECIAL

main75982-95D09iCR30,YR30..E198804-198808

WHITE EXTRA

main75986-87038iCR21,YR20,21..E,G,Q,X198211-198508

(A)

sub75986-87050

main75986-87039iCR21,YR20..E198211-198508

(B),TOWN ACE

sub75986-87051

main75986-87040iCR21,YR20,21..E,G,Q,X198211-198508

(B),MASTER ACE

sub75986-87052

main75986-87041iCR21,YR20,21..E,G,Q,X198211-198508

(C),TOWN ACE

sub75986-87053

main75986-87042iYR20..G198211-198508

(C),MASTER ACE

sub75986-87054

main75986-87043iCR21,YR20,21..E,G,Q,X198211-198508

(D),BLACK & SILVER

sub75986-87055

main75986-87044iCR21,YR20,21..E,G,Q,X198211-198508

(D),SILVER & SILVER

sub75986-87056

main75986-87045iCR21,YR20,21..E,G,Q,X198211-198504

(D),BLACK & BLACK

sub75986-87057

main75986-87045-01iYR20..MRF..08S;YR20..HRF..5F..G;YR20..HRF..(E,Q,X);CR21,YR21..E,G,Q,X198504-198508

(D),BLACK & BLACK,BLACK

sub75986-87045

sub75986-87057

main75986-87045-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,MAROON,MAROON

sub75986-87045

sub75986-87057

main75986-87045-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,DEEP BLUE,DEEP BLUE

sub75986-87045

sub75986-87057

main75986-87048iYR20..MRF..5F..G198310-198311

WHITE WAGON

main75986-87049iYR20..HRF..E198404-198405

WHITE EXTRA

main75986-87050iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(A)

main75986-87051iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(B),TOWN ACE

main75986-87052iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(B),MASTER ACE

main75986-87053iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(C),TOWN ACE

main75986-87054iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(C),MASTER ACE

main75986-87055iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(D),BLACK & SILVER

main75986-87056iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(D),SILVER & SILVER

main75986-87057iYR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..(E,Q);YR20..HRF..5F..G198508-198808

(D),BLACK & BLACK

main75986-87059iCR21,YR20,21..HRF..E198604-198608

WHITE EXTRA

main75986-87061iCR21,YR20,21..HRF..E198610-198611

LIMITED EDITION

main75986-87062iCR21,YR20,21..HRF..E198610-198611

SURF SPECIAL

main75986-87063iCR21,YR20,21..HRF..E198704-198708

WHITE EXTRA

main75986-87064iCR21,YR20,21..HRF..E198709-198803

WHITE EXTRA

main75986-87065iYR20..HRF..5F..G;CR21,YR20,21..HRF..(E,Q)198804-198808

WHITE EXTRA

75973STRIPE, SIDE, RH NO.2

main75985-95D00-03iCR30,YR30198510-198808

SILVER,SILVER

main75985-95D00-06iCR30,YR30198510-198808

GOLD,GOLD

main75985-95D01iCR30,YR30..E198610-198611

SURF SPECIAL

main75985-95D02iCR30,YR30..E198610-198611

LIMITED EDITION

main75985-95D03iCR30,YR30..E198612-198708

SURF SPECIAL

main75985-95D04iCR30,YR30..E198704-198708

WHITE EXTRA

main75985-95D05iCR30,YR30..E198709-198712

SURF SPECIAL

main75985-95D06iCR30,YR30..E198709-198803

WHITE EXTRA

main75985-95D07iCR30,YR30..E198801-198803

SURF SPECIAL

main75985-95D08iCR30,YR30..E198804-198808

SURF SPECIAL

main75985-95D09iCR30,YR30..E198804-198808

WHITE EXTRA

main75991-87029iCR21,YR20,21..E,G,Q,X198211-198808

(A),TOWN ACE

main75991-87030iCR21,YR20,21..E,G,Q,X198211-198808

(A),MASTER ACE

main75991-87031iCR21,YR20..E198211-198808

(B)

main75991-87032iYR20..G198211-198808

(C)

main75991-87033iCR21,YR20,21..07S,08S198211-198608

(D),BLACK & SILVER,TOWN ACE

sub75991-87043

main75991-87034iCR21,YR20,21..07S,08S198211-198608

(D),BLACK & SILVER,MASTER ACE

sub75991-87044

main75991-87035iYR20..G198211-198608

(D),SILVER & SILVER,TOWN ACE

sub75991-87045

main75991-87036iCR21,YR20,21..07S,08S198211-198608

(D),SILVER & SILVER,MASTER ACE

sub75991-87046

main75991-87037iCR21,YR20,21..G198211-198608

(D),BLACK & BLACK,TOWN ACE

sub75991-87047

main75991-87038iCR21,YR20,21..G198211-198608

(D),BLACK & BLACK,MASTER ACE

sub75991-87048

main75991-87042iYR20..HRF..E198404-198405

WHITE EXTRA

main75991-87043iYR20..HRF..E;YR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..5F..G198408-198808

(D),BLACK & SILVER,TOWN ACE

main75991-87044iYR20..HRF..E;YR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..5F..G198408-198808

(D),BLACK & SILVER,MASTER ACE

main75991-87045iYR20..HRF..E;YR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..5F..G198408-198808

(D),SILVER & SILVER,TOWN ACE

main75991-87046iCR21,YR20,21..E,Q,X198408-198808

(D),SILVER & SILVER,MASTER ACE

main75991-87047iCR21,YR20,21..E,Q,X198408-198504

(D),BLACK & BLACK,TOWN ACE

main75991-87047-01iYR20..HRF..E;YR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..5F..G198504-198808

(D),BLACK & BLACK,TOWN ACE,BLACK

sub75991-87047

main75991-87047-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,DEEP BLUE,DEEP BLUE

sub75991-87047

main75991-87048iCR21,YR20,21..E,Q,X198408-198504

(D),BLACK & BLACK,MASTER ACE

main75991-87048-01iYR20..HRF..E;YR20..MRF..08S;CR21,YR21..E,G,Q;YR20..HRF..5F..G198504-198808

(D),BLACK & BLACK,MASTER ACE,BLACK

sub75991-87048

main75991-87048-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,MAROON,MAROON

sub75991-87048

main75991-87049iCR21,YR20,21..HRF..E198604-198608

WHITE EXTRA

main75991-87051iCR21,YR20,21..HRF..E198610-198611

LIMITED EDITION

main75991-87052iCR21,YR20,21..HRF..E198610-198611

SURF SPECIAL

main75991-87053iCR21,YR20,21..HRF..E198704-198708

WHITE EXTRA

main75991-87054iCR21,YR20,21..HRF..E198709-198803

WHITE EXTRA

main75991-87055iCR21,YR20,21..E198804-198808

WHITE EXTRA

main76993-87001iYR20..MRF..5F..G198310-198311

WHITE WAGON

75974STRIPE, CENTER PILLAR, LH NO.2

main75986-95D00-03iCR30,YR30198510-198808

SILVER,SILVER

main75986-95D00-06iCR30,YR30198510-198808

GOLD,GOLD

main75986-95D01iCR30,YR30..E198610-198611

SURF SPECIAL

main75986-95D02iCR30,YR30..E198610-198611

LIMITED EDITION

main75986-95D03iCR30,YR30..E198612-198708

SURF SPECIAL

main75986-95D04iCR30,YR30..E198704-198708

WHITE EXTRA

main75986-95D05iCR30,YR30..E198709-198712

SURF SPECIAL

main75986-95D06iCR30,YR30..E198709-198803

WHITE EXTRA

main75986-95D07iCR30,YR30..E198801-198803

SURF SPECIAL

main75986-95D08iCR30,YR30..E198804-198808

SURF SPECIAL

main75986-95D09iCR30,YR30..E198804-198808

WHITE EXTRA

main75992-87005iCR21,YR20,21..HRF..E198604-198608

WHITE EXTRA

main75992-87007iCR21,YR20,21..E,G,Q,X198211-198808

(A),TOWN ACE

main75992-87008iYR20,21..07S198211-198808

(A),MASTER ACE

main75992-87009iCR21,YR20,21..E,G,Q,X198211-198808

(B)

main75992-87010iCR21,YR20,21..E,G,Q,X198211-198808

(C)

main75992-87011iCR21,YR20,21..E,G,Q,X198211-198808

(D),BLACK & SILVER,TOWN ACE

main75992-87012iCR21,YR20,21..E,G,Q,X198211-198808

(D),BLACK & SILVER,MASTER ACE

main75992-87013iCR21,YR20,21..E,G,Q,X198211-198808

(D),SILVER & SILVER,TOWN ACE

main75992-87014iYR20..G198211-198808

(D),SILVER & SILVER,MASTER ACE

main75992-87015iCR21,YR20,21..E,G,Q,X198211-198504

(D),BLACK & BLACK,TOWN ACE

main75992-87015-01iYR20..MRF..08S;YR20..HRF..5F..G;YR20..HRF..(E,Q,X);CR21,YR21..E,G,Q,X198504-198808

(D),BLACK & BLACK,TOWN ACE,BLACK

sub75992-87015

main75992-87015-04iCR21,YR20..HRF..E198504-198508

WHITE EXTRA,DEEP BLUE,DEEP BLUE

sub75992-87015

main75992-87016iCR21,YR20,21..E,G,Q,X198211-198504

(D),BLACK & BLACK,MASTER ACE

main75992-87016-01iYR20..MRF..08S;YR20..HRF..5F..G;YR20..HRF..(E,Q,X);CR21,YR21..E,G,Q,X198504-198808

(D),BLACK & BLACK,MASTER ACE,BLACK

sub75992-87016

main75992-87016-02iCR21,YR20..HRF..E198504-198508

SURF SPECIAL,MAROON,MAROON

sub75992-87016

main75992-87019iYR20..MRF..5F..G198310-198311

WHITE WAGON

main75992-87020iYR20..HRF..E198404-198405

WHITE EXTRA

main75992-87022iCR21,YR20,21..HRF..E198610-198611

LIMITED EDITION

main75992-87023iCR21,YR20,21..HRF..E198610-198611

SURF SPECIAL

main75992-87024iCR21,YR20,21..HRF..E198704-198708

WHITE EXTRA

main75992-87025iCR21,YR20,21..HRF..E198709-198803

WHITE EXTRA

main75992-87026iCR21,YR20,21..E198804-198808

WHITE EXTRA

4 parts on this diagram · 14 diagrams in section
