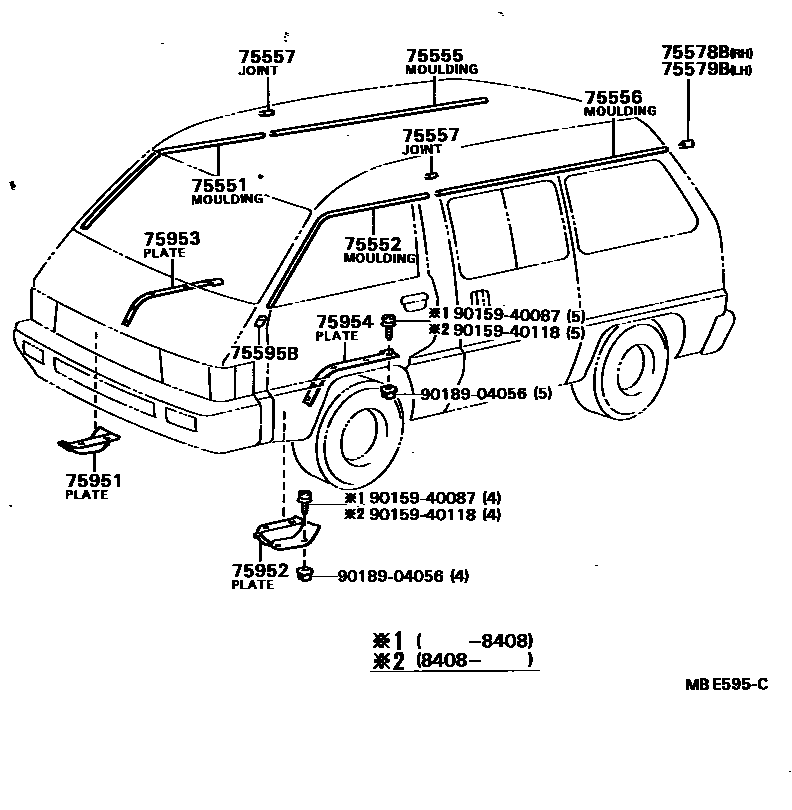

MOULDING

0001 1 0002 1

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-87005iCR21,26,27,30,36,YR20,21,26,30..E,G,N,Q,X¥2,200198211-198808

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-87005iCR21,26,27,30,36,YR20,21,26,30..E,G,N,Q,X¥2,200198211-198808

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-87005iCR21,26,27,30,36,YR20,21,26,30..E,G,N,Q,X¥2,740198211-198808

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-87005iCR21,26,27,30,36,YR20,21,26,30..E,G,N,Q,X¥2,740198211-198808

75557JOINT, ROOF DRIP SIDE FINISH MOULDING

main75563-87001iCR21,26,27,30,36,YR20,21,26,30..E,G,N,Q,X¥580198211-198808

LH

sub75563-87002¥640

main75563-87002iCR21,26,27,30,36,YR20,21,26,30..E,G,N,Q,X¥640198211-198808

RH,W/ANTENNA

75578BCOVER, ROOF DRIP MOULDING END, REAR RH

main75578-87001iCR21,26,28,36,37,KR26,YR20,26,28,36..B,D¥320198705-198808

75579BCOVER, ROOF DRIP MOULDING END, REAR LH

main75579-87001iCR21,26,28,36,37,KR26,YR20,26,28,36..B,D¥320198705-198808

75595BCOVER, ROOF DRIP SIDE MOULDING END, FRONT

main75595-95J00iCR21,26,28,36,37,KR26,YR20,26,28,36..B,D¥80198705-198808

RH

main75596-95J00iCR21,26,28,36,37,KR26,YR20,26,28,36..B,D¥80198705-198808

LH

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-87004-02iCR2#,KR26,YR2#198408-198508

WINE,WINE,TRIM4#

sub67913-87004¥2,770

main67913-87004-03iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

sub67913-87004¥2,770

main67913-87004-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

sub67913-87004¥2,770

main67913-87004-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

sub67913-87004¥2,770

main67913-87004-06iCR2#,3#,KR26,YR2#,3#198508-198808

BROWN,BROWN,TRIM4#

sub67913-87004¥2,770

main67913-87004-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

sub67913-87004¥2,770

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-87001-02iCR2#,KR26,YR2#198408-198508

WINE,WINE,TRIM4#

sub67914-87001¥2,770

main67914-87001-03iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

sub67914-87001¥2,770

main67914-87001-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

sub67914-87001¥2,770

main67914-87001-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

sub67914-87001¥2,770

main67914-87001-06iCR2#,3#,KR26,YR2#,3#198508-198808

BROWN,BROWN,TRIM4#

sub67914-87001¥2,770

main67914-87001-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

sub67914-87001¥2,770

75953PLATE, FRONT DOOR SCUFF, INSIDE RH

main67933-87002-02iCR2#,KR26,YR2#198408-198508

WINE,WINE,TRIM4#

main67933-87002-03iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

main67933-87002-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main67933-87002-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main67933-87002-06iCR2#,3#,KR26,YR2#,3#198508-198808

BROWN,BROWN,TRIM4#

main67933-87002-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

75954PLATE, FRONT DOOR SCUFF, INSIDE LH

main67934-87002-02iCR2#,KR26,YR2#198408-198508

WINE,WINE,TRIM4#

main67934-87002-03iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

main67934-87002-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main67934-87002-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main67934-87002-06iCR2#,3#,KR26,YR2#,3#198508-198808

BROWN,BROWN,TRIM4#

main67934-87002-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

9015940087

main90159-40087¥180

9015940118

main90159-40118¥120

9018904056

main90189-04056¥190

15 parts on this diagram · 2 diagrams in section
