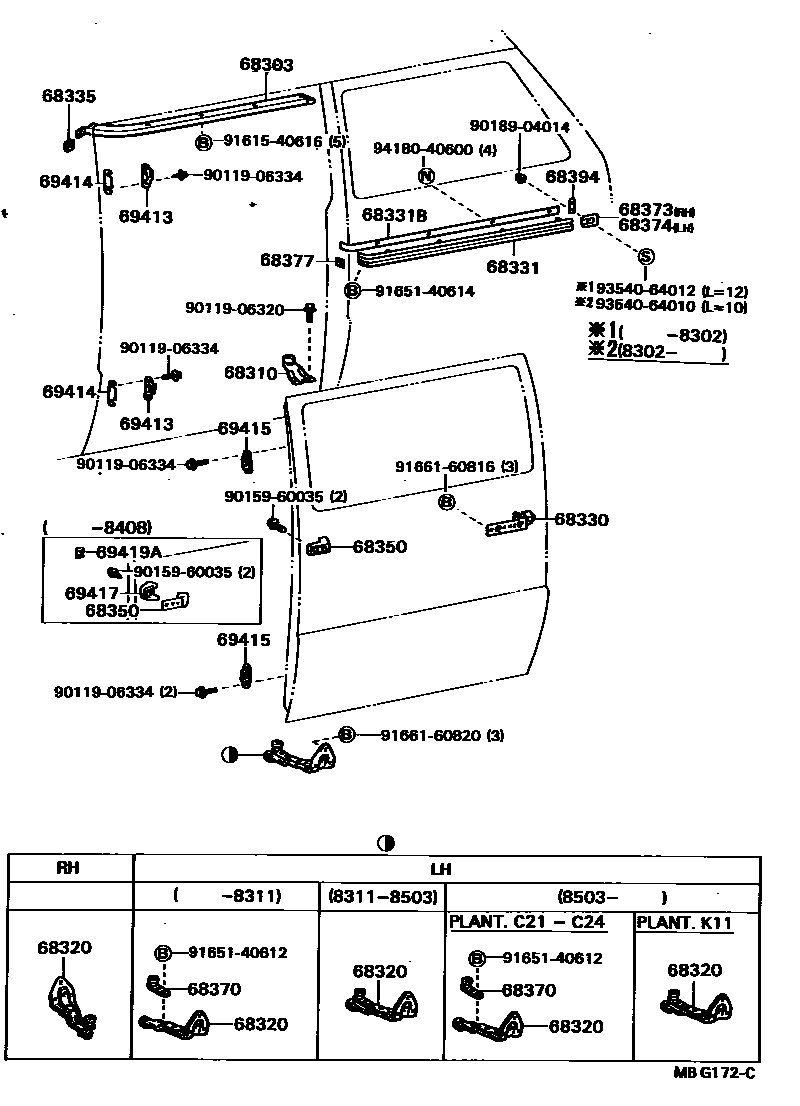

SLIDE ROLLER & RAIL

68303RAIL SUB-ASSY, SLIDE DOOR, UPPER

main68308-87001iCR26,27,36,KR26,YR26..V5D198211-198808

RH

main68309-87001iCR2#,3#,KR26,YR2#,3#198211-198808

LH

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-87001iCR26,27,36,KR26,YR26..V5D198211-198808

RH

main68320-87001iCR2#,3#,KR26,YR2#,3#198211-198808

LH

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-87001iCR26,KR26,YR26..V5D198211-198311

RH

main68350-87002iCR26,27,36,KR26,YR26..V5D198311-198808

RH

main68360-87001iYR20..HRF..5F..G;YR20..HRF..(E,Q,X);YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198503-198808

LH,PLANT.C21-C25

main68360-87002iCR2#,KR26,YR2#198311-198503

LH

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68330-87001iCR26,KR26,YR26..V5D198211-198408

RH

main68330-87002iCR26,27,36,KR26,YR26..V5D198408-198808

RH

main68340-87001iCR2#,KR26,YR2#198211-198408

LH

main68340-87002iCR2#,3#,KR26,YR2#,3#198408-198808

LH

68331RAIL, SLIDE DOOR, CENTER

main68303-87001iCR26,27,36,KR26,YR26..V5D198211-198808

RH

main68304-87003iCR2#,3#,KR26,YR2#,3#198211-198808

LH

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-87002iCR26,27,36,KR26,YR26..V5D198211-198808

68335PAD, SLIDE DOOR UPPER RAIL

main69243-87002×2iCR26,27,36,KR26,YR26..V5D198211-198808

68350STOPPER ASSY, SLIDE DOOR OPEN

main69418-87001iCR26,KR26,YR26..V5D198211-198408

main69418-87003iCR26,27,36,KR26,YR26..V5D198408-198808

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68370-87001iCR26,KR26,YR26..V5D198211-198311

68373MOULDING, SLIDE RAIL END, RH

main68373-87001iCR26,27,36,KR26,YR26..V5D198211-198808

68374MOULDING, SLIDE RAIL END, LH

main68374-87001iCR2#,3#,KR26,YR2#,3#198211-198808

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-87001iCR26,27,36,KR26,YR26..V5D198211-198808

68394PROTECTOR, SLIDE RAIL END MOULDING

main68394-87002iCR26,KR26,YR26..V5D198211-198309

69413STOP, SLIDE DOOR DOWN MALE

main69416-87001×4iCR26,27,YR26..V5D..N198211-198808

sub69416-87002

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700×2iCR26,27,YR26..V5D..N198211-198808

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87001×2iYR20,21..D,G;CR26,KR26,YR26..V4D..(D,R)198211-198312

main69415-87002iCR21,30,YR20,21,30..D,G;CR26,27,36,KR26,YR26..V4D198312-198808

LWR,PLANT.C21-C24

69417COVER, SLIDE DOOR OPEN STOP

main69417-87001-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main69417-87001-05iCR26,KR26,YR26..V5D198211-198408

BEIGE,BEIGE,TRIM4#

69419APLUG, SLIDE DOOR OPEN STOP COVER

main69419-87001-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main69419-87001-05iCR26,KR26,YR26..V5D198211-198408

BEIGE,BEIGE,TRIM4#

9011906320

main90119-06320

9011906334

main90119-06334

9015960035

main90159-60035

9018904014

main90189-04014

9161540616

main91615-40616

9165140612

main91651-40612

9165140614

main91651-40614

9166160816

main91661-60816

9166160820

main91661-60820

9354064010

main93540-64010

9354064012

main93540-64012

9418040600

main94180-40600

30 parts on this diagram · 1 diagram in section
