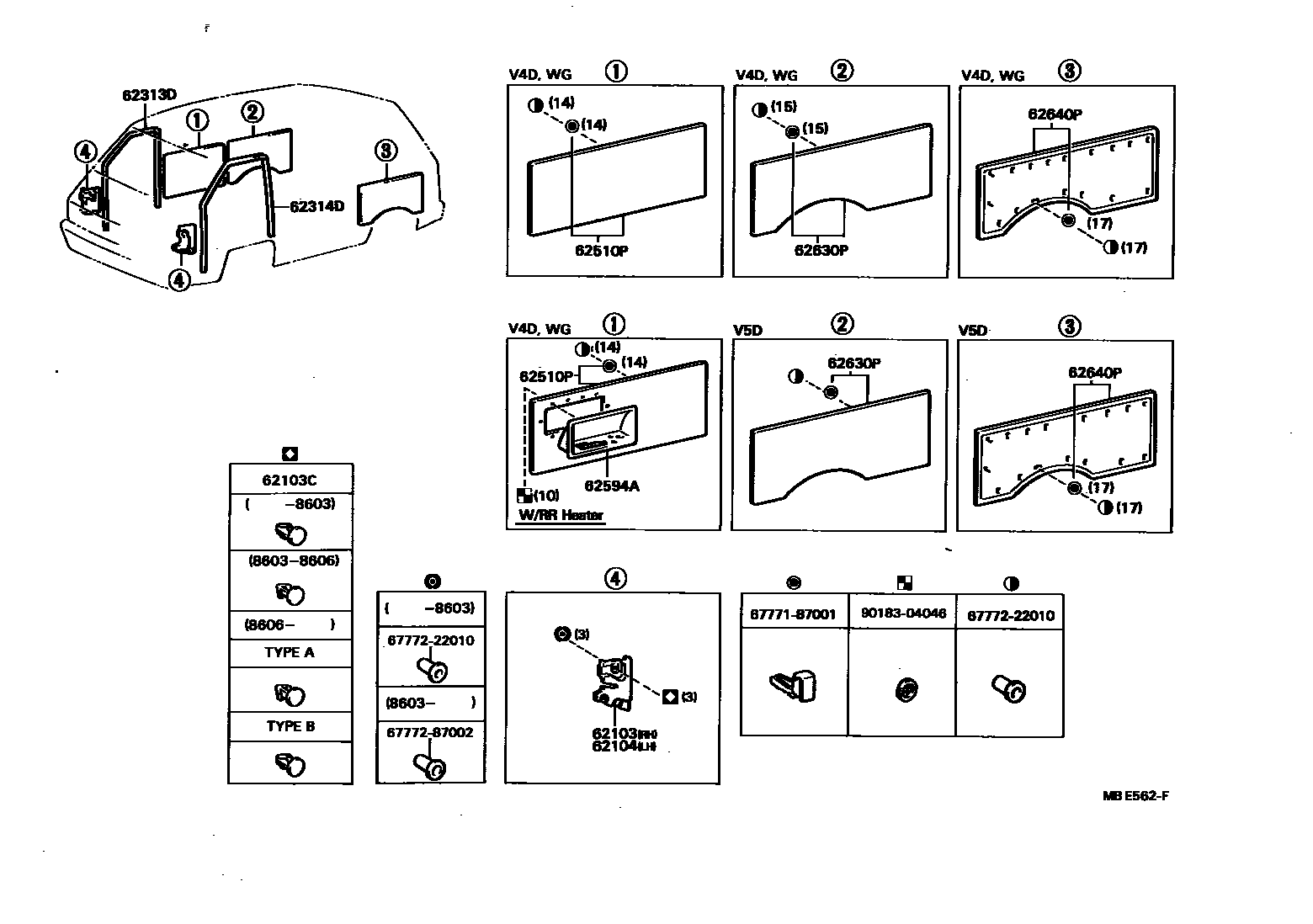

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1WHITE WAGON 0007 1 0008 1 0009 1WHITE WAGON

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62111-87004-02iCR2#198408-198508

WINE,WINE,TRIM4#

sub62111-87004¥2,860

main62111-87004-03iCR21198304-198408

GRAY,GRAY,TRIM1#

sub62111-87004¥2,860

main62111-87004-04iCR21..E198408-198508

BLUE,BLUE,TRIM1#

sub62111-87004¥2,860

main62111-87004-05iCR2#198211-198408

BEIGE,BEIGE,TRIM4#

sub62111-87004¥2,860

main62111-87004-06iCR2#,3#198508-198808

BROWN,BROWN,TRIM4#

sub62111-87004¥2,860

main62111-87004-14iCR21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

sub62111-87004¥2,860

main62111-87005-02iKR26,YR2#198408-198508

WINE,WINE,TRIM4#

main62111-87005-03iYR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

main62111-87005-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main62111-87005-04iYR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main62111-87005-05iKR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main62111-87005-06iYR20..HRF..(E,Q);YR20..HRF..5F..G;KR26,YR21,26,28,3#;YR20..MRF..(08S,09S)198508-198808

BROWN,BROWN,TRIM4#

main62111-87005-14iYR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-08065-06iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,30198603-198606

BROWN,BROWN,TRIM4#

sub90467-08065¥140

main90467-08065-06iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198606-198808

TYPE A,BROWN,BROWN,TRIM4#

sub90467-08065¥140

main90467-08065-14iCR21,30,YR20,21,30..E,Q198603-198606

BLUE,BLUE,TRIM8#

sub90467-08065¥140

main90467-08065-14iCR21,30,YR20,21,30..E,Q198606-198808

TYPE A,BLUE,BLUE,TRIM8#

sub90467-08065¥140

main90467-10017-03iCR21,YR20,21..E,Q,X198211-198311

GRAY,GRAY,TRIM1#

sub90467-10017¥190

main90467-10017-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

sub90467-10017¥190

main90467-10017-05iCR2#,KR26,YR2#198211-198311

BEIGE,BEIGE,TRIM4#

sub90467-10017¥190

main90467-12078-03iCR21,YR20,21..E,Q,X198311-198408

GRAY,GRAY,TRIM1#

sub90467-12078¥310

main90467-12078-05iCR2#,KR26,YR2#198311-198408

BEIGE,BEIGE,TRIM4#

sub90467-12078¥310

main90467-12078-22iCR2#,KR26,YR2#198408-198508

WINE,WINE,TRIM4#

sub90467-12078¥310

main90467-12078-24iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

sub90467-12078¥310

main90467-12078-34iCR21,30,YR20,21,30..E,Q198606-198808

TYPE B,BLUE,BLUE,TRIM8#

sub90467-12078¥310

main90467-12078-34iCR21,30,YR20,21,30..E,Q198508-198603

BLUE,BLUE,TRIM8#

sub90467-12078¥310

main90467-12078-46iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,30198508-198603

BROWN,BROWN,TRIM4#

sub90467-12078¥310

main90467-12078-46iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198606-198808

TYPE B,BROWN,BROWN,TRIM4#

sub90467-12078¥310

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62112-87003-02iCR2#,YR2#..E,G,N,Q,X198408-198508

WINE,WINE,TRIM4#

main62112-87003-03iCR21,YR20,21..E,Q,X198211-198408

GRAY,GRAY,TRIM1#

main62112-87003-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main62112-87003-04iCR21,YR20,21..E,Q,X198408-198508

BLUE,BLUE,TRIM1#

main62112-87003-05iCR21,YR2#..4FC,5F198211-198408

BEIGE,BEIGE,TRIM4#

main62112-87003-06iCR26,27,28,36,KR26,YR26,28..B,D,N198508-198808

BROWN,BROWN,TRIM4#

main62112-87003-14iCR21,30,YR20,21,30..E,Q198508-198808

BLUE,BLUE,TRIM8#

62313DTRIM, FRONT DOOR OPENING, RH

main62313-87003-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main62313-87003-03iCR21,YR20,21..E,Q,X198211-198508

GRAY,GRAY,TRIM1#

main62313-87003-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main62313-87003-13iCR21,30,YR20,21,30..E,Q198508-198808

GRAY,GRAY,TRIM8#

main62313-87003-15iCR2#,KR26,YR2#198408-198508

BEIGE,BEIGE,TRIM4#

main62313-87003-25iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

BEIGE,BEIGE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62313-87003-03iCR21,YR20,21..E,Q,X198211-198508

GRAY,GRAY,TRIM1#

main62313-87003-03iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY,GRAY,TRIM1#

main62313-87003-05iCR2#,KR26,YR2#198211-198408

BEIGE,BEIGE,TRIM4#

main62313-87003-13iCR21,30,YR20,21,30..E,Q198508-198808

GRAY,GRAY,TRIM8#

main62313-87003-15iCR2#,KR26,YR2#198408-198508

BEIGE,BEIGE,TRIM4#

main62313-87003-25iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

BEIGE,BEIGE,TRIM4#

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-87017iYR20..D¥13,300198211-198408

BEIGE

main62510-87017-15iCR21,YR20..D198408-198508

BEIGE,BEIGE,TRIM4#

sub62510-87017¥13,300

main62510-87017-25iCR21,YR20..D198508-198808

BEIGE,BEIGE,TRIM4#

sub62510-87017¥13,300

main62510-87018iYR20,21..D,G¥13,500198211-198408

W/RR HEATER,BEIGE

main62510-87018-15iCR21,YR20,21..D,G198408-198508

W/RR HEATER,BEIGE,BEIGE,TRIM4#

sub62510-87018¥13,500

main62510-87018-25iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,30,YR30..D,G198508-198808

W/RR HEATER,BEIGE,BEIGE,TRIM4#

sub62510-87018¥13,500

main62510-87020-03iCR21,YR20,21..E,X198211-198308

GRAY,GRAY,TRIM1#

main62510-87020-05iCR21,YR20,21..E,X198211-198308

BEIGE,BEIGE,TRIM4#

main62510-87020-13iCR21,YR20,21..E,X198308-198408

GRAY,GRAY,TRIM1#

main62510-87020-15iCR21,YR20,21..E,X198308-198408

BEIGE,BEIGE,TRIM4#

main62510-87021-03iYR20,21..Q198211-198408

GRAY,GRAY,TRIM1#

main62510-87021-05iYR20,21..Q198211-198308

BEIGE,BEIGE,TRIM4#

main62510-87021-15iYR20,21..Q198308-198408

BEIGE,BEIGE,TRIM4#

main62510-87024iCR26,KR26,YR26..V4D¥12,100198211-198408

main62510-87024-15iCR26,27,KR26,YR26..V4D198408-198508

BEIGE,BEIGE,TRIM4#

sub62510-87024¥12,100

main62510-87024-25iCR26,27,36,KR26,YR26..V4D198508-198808

BEIGE,BEIGE,TRIM4#

sub62510-87024¥12,100

main62510-87028iYR26..V4D..N¥12,900198211-198408

W/RR HEATER

main62510-87028-15iCR26,27,YR26..V4D..05S198408-198508

W/RR HEATER,BEIGE,BEIGE,TRIM4#

sub62510-87028¥12,900

main62510-87028-25iCR26,27,36,YR26..V4D..05S198508-198808

W/RR HEATER,BEIGE,BEIGE,TRIM4#

sub62510-87028¥12,900

main62510-87037-03iYR20..HRF..E198404-198405

SURF SPECIAL,GRAY,GRAY,TRIM1#

main62510-87037-13iCR21,YR20,21..E,X198408-198508

GRAY,GRAY,TRIM1#

main62510-87037-15iCR21,YR20,21..E,X198408-198508

BEIGE,BEIGE,TRIM4#

main62510-87038iYR20..MRF..5F..G198310-198311

WHITE WAGON,GRAY

main62510-87041-03iYR20,21..Q198408-198508

GRAY,GRAY,TRIM1#

main62510-87041-05iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main62510-87042-05iCR28,37,YR28,36198508-198808

W/RR HEATER,BEIGE,BEIGE,TRIM4#

sub62510-87028¥12,900

main62510-87043-03iCR21,30,YR20,21,30..E198508-198808

GRAY,GRAY,TRIM8#

main62510-87043-05iCR21,30,YR20,21,30..E198508-198808

BEIGE,BEIGE,TRIM4#

main62510-87044-05iCR28,37,YR28,36198508-198808

BEIGE,BEIGE,TRIM4#

sub62510-87024¥12,100

main62510-87045-03iCR21,30,YR20,21,30..Q198508-198808

GRAY,GRAY,TRIM8#

main62510-87045-05iCR21,30,YR20,21,30..Q198508-198808

BEIGE,BEIGE,TRIM4#

62594APOCKET, QUARTER TRIM, NO.1

main62594-87003iCR26,27,YR26..V4D..05S¥10,300198211-198508

W/RR HEATER

main62594-87003-06iCR26,27,36,YR26..V4D..05S198508-198808

W/RR HEATER,BROWN,BROWN,TRIM4#

sub62594-87003¥10,300

main62594-87004-02iCR21,YR20,21..E,Q,X198211-198508

WINE,RED/MAROON,TRIM4#

sub62594-87004¥23,200

sub62594-87007¥11,700

main62594-87004-04iYR20..MRF..5F..G198310-198311

WHITE WAGON,BLUE,BLUE,TRIM1#

sub62594-87004¥23,200

sub62594-87007¥11,700

main62594-87004-04iCR21,YR20,21..E,Q,X198211-198508

BLUE,BLUE,TRIM1#

sub62594-87004¥23,200

sub62594-87007¥11,700

main62594-87004-06iCR21,30,YR20,21,30..E,Q198508-198805

BROWN,BROWN,TRIM4#

sub62594-87004¥23,200

sub62594-87007¥11,700

main62594-87004-14iCR21,30,YR20,21,30..E,Q198508-198805

BLUE,BLUE,TRIM8#

sub62594-87004¥23,200

sub62594-87007¥11,700

main62594-87007-14iCR21,30,YR20,21,30..E,Q198805-198808

BLUE,BLUE,TRIM8#

main62594-87007-16iCR21,30,YR20,21,30..E,Q198805-198808

BROWN,BROWN,TRIM4#

62630PPANEL ASSY, QUARTER TRIM, REAR RH

main62630-87016iYR20,21..D,G¥14,100198211-198408

BEIGE

main62630-87016-15iCR21,YR20,21..D,G198408-198508

BEIGE,BEIGE,TRIM4#

sub62630-87016¥14,100

main62630-87016-25iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,30,YR30..D,G198508-198808

BEIGE,BEIGE,TRIM4#

sub62630-87016¥14,100

main62630-87018-03iCR21,YR20,21..E,X198211-198308

GRAY,GRAY,TRIM1#

main62630-87018-05iCR21,YR20,21..E,X198211-198308

BEIGE,BEIGE,TRIM4#

main62630-87018-13iCR21,YR20,21..E,X198308-198408

GRAY,GRAY,TRIM1#

main62630-87018-15iCR21,YR20,21..E,X198308-198408

BEIGE,BEIGE,TRIM4#

main62630-87019-03iYR20,21..Q198211-198408

GRAY,GRAY,TRIM1#

main62630-87019-05iYR20,21..Q198211-198308

BEIGE,BEIGE,TRIM4#

main62630-87019-15iYR20,21..Q198308-198408

BEIGE,BEIGE,TRIM4#

main62630-87022iCR26,KR26,YR26..V4D¥12,900198211-198408

main62630-87022-15iCR26,27,KR26,YR26..V4D198408-198508

BEIGE,BEIGE,TRIM4#

sub62630-87022¥12,900

main62630-87022-25iCR28,37,YR28,36;CR26,27,36,KR26,YR26..V4D198508-198808

BEIGE,BEIGE,TRIM4#

sub62630-87022¥12,900

main62630-87023iCR26,KR26,YR26..V5D¥14,100198211-198408

main62630-87023-15iCR26,KR26,YR26..V5D198408-198508

BEIGE,BEIGE,TRIM4#

sub62630-87023¥14,100

main62630-87023-25iCR26,27,36,KR26,YR26..V5D198508-198808

BEIGE,BEIGE,TRIM4#

sub62630-87023¥14,100

main62630-87032-03iYR20..HRF..E198404-198405

SURF SPECIAL,GRAY,GRAY,TRIM1#

main62630-87032-13iCR21,YR20,21..E,X198408-198508

GRAY,GRAY,TRIM1#

main62630-87032-15iCR21,YR20,21..E,X198408-198508

BEIGE,BEIGE,TRIM4#

main62630-87033iYR20..MRF..5F..G198310-198311

WHITE WAGON

main62630-87034-03iYR20,21..Q198408-198508

GRAY,GRAY,TRIM1#

main62630-87034-05iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main62630-87038-03iCR21,30,YR20,21,30..E198508-198808

GRAY,GRAY,TRIM8#

main62630-87038-05iCR21,30,YR20,21,30..E198508-198808

BEIGE,BEIGE,TRIM4#

main62630-87039-03iCR21,30,YR20,21,30..Q198508-198808

GRAY,GRAY,TRIM8#

main62630-87039-05iCR21,30,YR20,21,30..Q198508-198808

BEIGE,BEIGE,TRIM4#

main62630-87040-03iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,GRAY,GRAY,TRIM8#

main62630-87040-05iCR21,30,YR20,21,30..E198608-198808

W/BIG SEAT,BEIGE,BEIGE,TRIM4#

62640PPANEL ASSY, QUARTER TRIM, REAR LH

main62640-87024iYR20,21..D,G¥14,100198211-198408

BEIGE

sub62640-87048¥8,800

main62640-87024-15iCR21,YR20,21..D,G198408-198508

BEIGE,BEIGE,TRIM4#

sub62640-87024¥14,100

sub62640-87048¥8,800

main62640-87024-25iYR20..MRF..(D,G);YR20..HRF..5F..G;CR21,30,YR30..D,G198508-198808

BEIGE,BEIGE,TRIM4#

sub62640-87024¥14,100

sub62640-87048¥8,800

main62640-87026-03iCR21,YR20,21..E,X198211-198308

GRAY,GRAY,TRIM1#

main62640-87026-05iCR21,YR20,21..E,X198211-198308

BEIGE,BEIGE,TRIM4#

main62640-87026-13iCR21,YR20,21..E,X198308-198408

GRAY,GRAY,TRIM1#

main62640-87026-15iCR21,YR20,21..E,X198308-198408

BEIGE,BEIGE,TRIM4#

main62640-87027-03iYR20,21..Q198211-198408

GRAY,GRAY,TRIM1#

main62640-87027-05iYR20,21..Q198211-198308

BEIGE,BEIGE,TRIM4#

main62640-87027-15iYR20,21..Q198308-198408

BEIGE,BEIGE,TRIM4#

main62640-87030iCR26,KR26,YR26¥14,200198211-198408

main62640-87030-15iCR26,27,KR26,YR26198408-198508

BEIGE,BEIGE,TRIM4#

sub62640-87030¥14,200

main62640-87030-25iCR26,27,28,36,37,KR26,YR26,28,36198508-198808

BEIGE,BEIGE,TRIM4#

sub62640-87030¥14,200

main62640-87038-03iYR20..HRF..E198404-198405

SURF SPECIAL,GRAY,GRAY,TRIM1#

main62640-87038-13iCR21,YR20,21..E,X198408-198508

GRAY,GRAY,TRIM1#

main62640-87038-15iCR21,YR20,21..E,X198408-198508

BEIGE,BEIGE,TRIM4#

main62640-87039iYR20..MRF..5F..G198310-198311

WHITE WAGON

main62640-87040-03iYR20,21..Q198408-198508

GRAY,GRAY,TRIM1#

main62640-87040-05iYR20,21..Q198408-198508

BEIGE,BEIGE,TRIM4#

main62640-87044-03iCR21,30,YR20,21,30..E198508-198608

GRAY,GRAY,TRIM8#

main62640-87044-05iCR21,30,YR20,21,30..E198508-198608

BEIGE,BEIGE,TRIM4#

main62640-87045-03iCR21,30,YR20,21,30..Q198508-198808

GRAY,GRAY,TRIM8#

main62640-87045-05iCR21,30,YR20,21,30..Q198508-198808

BEIGE,BEIGE,TRIM4#

main62640-87046-03iCR21,30,YR20,21,30..E198608-198808

GRAY,GRAY,TRIM8#

main62640-87046-05iCR21,30,YR20,21,30..E198608-198808

BEIGE,BEIGE,TRIM4#

6777187001WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-87001¥270

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010¥170

6777287002WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-87002¥180

9018304046

main90183-04046¥120

13 parts on this diagram · 9 diagrams in section
