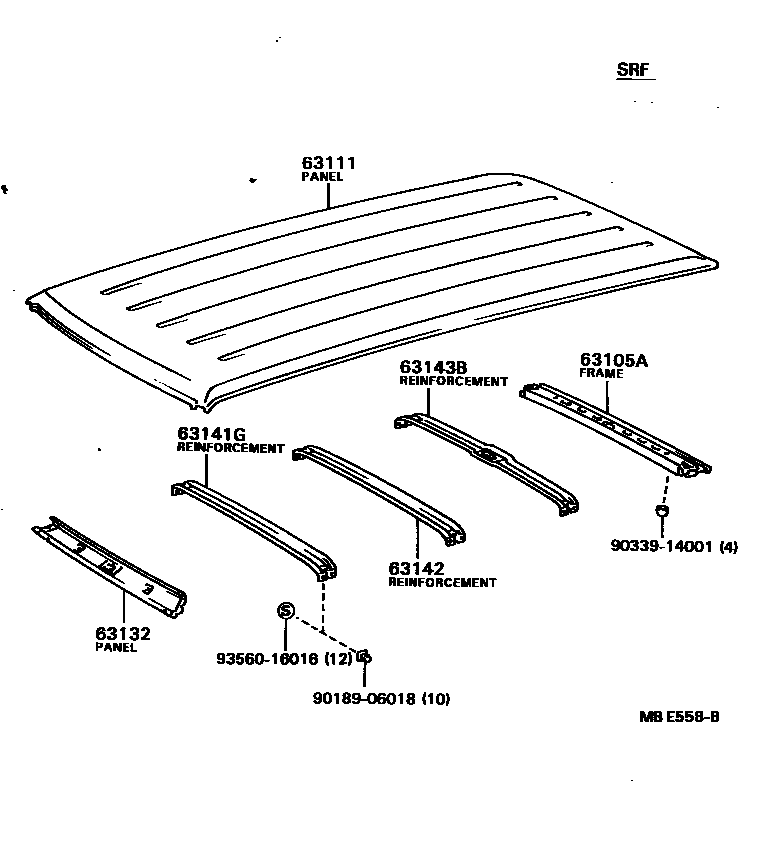

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0009 1 0011 1WHITE WAGON 0013 1 0014 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-87002iCR2#,KR26,YR20,26,28..(MRF,SRF)..(B,D,N,R)198211-198808

sub63105-87011

main63105-87003iCR21,YR20..MRF..E198211-198808

sub63105-87012

main63105-87004iCR30,YR20,30..HRF..G198211-198808

sub63105-87014

main63105-87005iCR21,30,YR20,21,30..HRF..E198211-198808

sub63105-87015

main63105-87006iCR21,YR20,21..MRF..(E,X)198211-198508

W/SUN ROOF

sub63105-28020

main63105-87007iCR21,YR20,21..HRF198211-198508

W/SUN ROOF

main63105-87008iCR26,27,28,36,KR26,YR26,28,36..HRF198211-198808

main63105-87009iCR21,YR20,21..MRF..G198211-198808

main63105-87010iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF

63111PANEL, ROOF

main63111-87005iCR21,YR20..MRF..(08S,09S)198211-198808

main63111-87006iCR26,YR2#..HRF..(05S,06S,08S)198211-198304

main63111-87007iCR21,YR20,21..MRF..(E,X)198211-198408

W/SUN ROOF

main63111-87008iYR20..HRF198211-198304

W/SUN ROOF

main63111-87009iCR26,27,28,36,KR26,YR26,28..SRF198211-198808

main63111-87010iYR21..G198305-198508

W/SUN ROOF

main63111-87011iCR2#,YR20,26..HRF..(05S,06S,08S)198304-198402

main63111-87012iCR21,YR20,21..HRF198304-198402

W/SUN ROOF

main63111-87013iCR21,YR20..MRF..E198408-198508

W/SUN ROOF

main63111-87014iCR21,YR20,21..HRF198408-198508

W/SUN ROOF

main63111-87015iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63132-87004iCR2#,3#,KR26,YR2#,3#..B,D,E,G,N,Q,X198211-198808

main63132-87005iKR26..R198211-198608

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-87008iCR26,27,28,36,KR26,YR26,28..SRF198211-198808

main63141-87009iCR21,YR20,21..MRF..(08S,09S)198211-198808

main63141-87010iCR2#,3#,KR26,YR2#,3#..HRF..(B,D,E,G,N)198211-198808

main63141-87014iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF

63142REINFORCEMENT, ROOF PANEL, NO.2

main63103-87005iYR20..MRF..5F..G198310-198311

WHITE WAGON

main63141-87008iCR26,27,28,36,KR26,YR26,28..SRF198211-198808

main63141-87009iCR21,YR20..MRF..(08S,09S)198211-198808

main63142-87005iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF

main63142-87006iCR2#,3#,KR26,YR2#,3#..HRF..(B,D,E,G,N)198211-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63103-87006iCR21,30,YR20,21,30..HRF..(E,Q)198508-198808

W/SKYLITE ROOF

main63143-87002iCR26,27,28,36,KR26,YR26,28..SRF198211-198808

main63143-87003iCR21,YR20,21..MRF..(08S,09S)198211-198808

main63143-87004iCR2#,3#,KR26,YR2#,3#..HRF..(B,D,E,G,N)198211-198808

9018906018

main90189-06018

9033914001

main90339-14001

9356016016

main93560-16016

9 parts on this diagram · 10 diagrams in section
