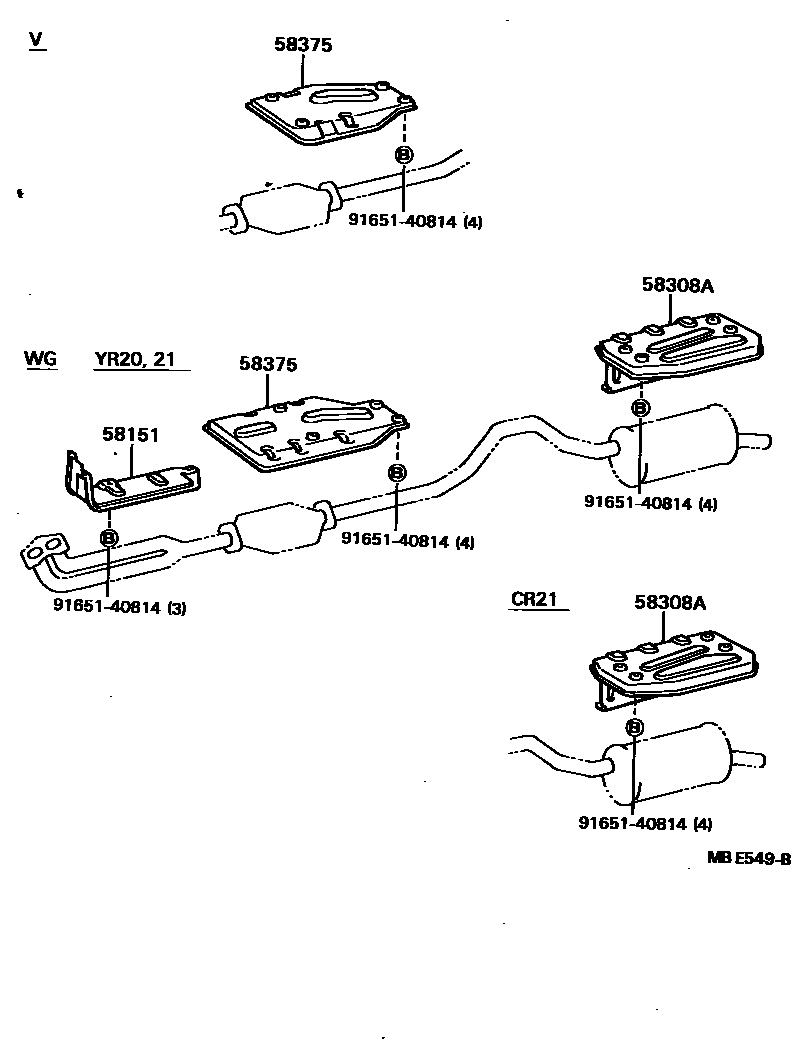

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-28010iYR20,28..B,D,E,G198408-198808

sub58151-28020

main58151-95D00iYR3#..05S,08S198510-198808

58308APANEL SUB-ASSY, HEAT PROOF

main58308-87002iCR21,YR20,21198211-198808

58375INSULATOR, REAR FLOOR HEAT, NO.1

main58321-87004iYR20,21,28198211-198808

main58321-87005iCR26,27,KR26,YR26198211-198506

sub58321-87006

main58321-87006iCR26,27,28,KR26,YR26198506-198808

sub58321-28020

main58321-95D00iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR36,37,YR21,26,28,3#198510-198808

9165140814

main91651-40814

4 parts on this diagram · 3 diagrams in section
