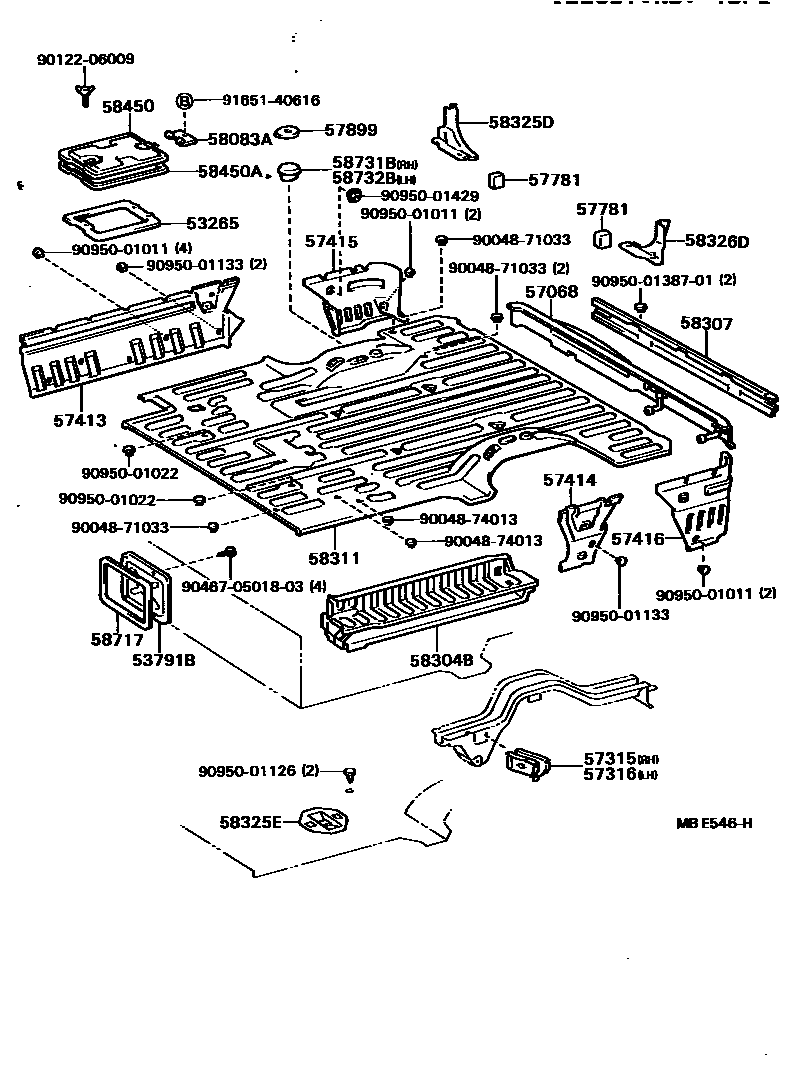

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53205-95D00iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

W/RR HEATER

sub53205-87001

main53265-87003iCR21,YR20,21198211-198508

W/RR HEATER

main53265-87006iCR37,YR36198608-198808

sub53265-28020

53791BCOVER, COOL AIR INTAKE HOLE

main53791-87003iCR36..V4D198510-198808

COLD SPEC

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28030iYR36198608-198707

main57068-87001iCR21,YR20,21198211-198501

main57068-87002iCR26,27,KR26,YR26198211-198501

main57068-87005iCR21,YR21;YR20..HRF..5F..G;YR20..HRF..(E,Q,X);YR20..MRF..(08S,09S)198501-198808

sub57068-87007

main57068-87006iKR26,YR26198508-198808

main57068-87008iCR28,YR28198508-198808

main57068-87010iCR26,27198508-198808

main57068-95D00iCR30,YR30198510-198808

main57068-95D01iCR36198510-198808

main57068-95D04iCR37,YR36198707-198808

57315OUTRIGGER, NO.3 RH

main57315-28040iCR36..V5D198510-198808

main57315-87004iCR21,27,YR21;YR20..HRF..5F..G;YR20..HRF..(E,Q,X);CR26,KR26,YR26..V4D;YR20..MRF..(08S,09S)198501-198508

main57315-87005iCR26,27,KR26,YR26..V5D198501-198808

sub57315-28080

main57315-87006iCR21,28,YR21,28;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,KR26,YR26..V4D198508-198808

57316OUTRIGGER, NO.3 LH

main57316-87002iCR30,YR30..E,Q198510-198808

main57316-87003iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,KR26,YR21,26..D,G,N,R198501-198508

main57316-87004iCR21,YR20,21..E,Q198508-198808

main57316-87005iYR20..MRF..(D,G);YR20..HRF..5F..G;CR2#,KR26,YR26,28..B,D,G,N,R198508-198808

57413RAIL, FLOOR SIDE, CENTER RH

main57405-87001iYR20..D,G198211-198508

main57405-87003iCR21,YR20,21..E,G,Q,X198211-198508

W/*SS

main57405-87005iCR26,27,36,KR26,YR26..V4D198608-198808

main57405-87006iCR26,27,36,KR26,YR26..V4D198508-198608

main57405-87009iCR21,YR20,21..E198608-198808

W/BIG SEAT

main57405-87010iCR26,27,36,KR26,YR26..V5D198608-198808

main57413-87005iCR26,36,KR26,YR26..V5D198508-198608

57414RAIL, FLOOR SIDE, CENTER LH

main57406-87002iCR26,27,28,36,37,KR26,YR26,28,36198608-198808

main57414-87001iCR21,26,27,3#,KR26,YR20,21,26,30198211-198608

57415RAIL, FLOOR SIDE, REAR RH

main57047-87001iCR21,YR20,21198211-198508

sub90950-01429

main57047-87002iCR26,27,KR26,YR26198211-198508

sub90950-01429

main57047-87006iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198512

main57047-87007iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198512-198808

main57047-87008iCR26,27,28,36,37,KR26,YR26,28,36198508-198808

57416RAIL, FLOOR SIDE, REAR LH

main57048-87001iCR21,YR20,21198211-198508

main57048-87003iCR26,27,KR26,YR26198211-198508

sub90950-01429

main57048-87009iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

COLD SPEC

main57048-87010iCR26,27,28,36,37,KR26,YR26,28,36198508-198808

57781PAD, DUST PROOF REAR FLOOR, NO.1

main57575-87002×2iCR2#,3#,KR26,YR2#,3#198211-198808

57899SEAL, REAR FLOOR, REAR

main57899-87001×2iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

COLD SPEC

58083AHINGE SUB-ASSY, BATTERY SERVICE COVER, MALE

main58083-87002iCR26,27,36,YR26..V4D..05S198211-198808

W/RR HEATER

58304BSTEP SUB-ASSY, REAR FLOOR, LH

main58304-87002iCR2#,KR26,YR2#198211-198408

main58304-87004iCR2#,3#,KR26,YR2#,3#198408-198808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-87003iCR2#,KR26,YR2#198211-198408

sub57068-87007

main58307-87004iYR20..HRF..5F..G;YR20..HRF..(E,Q,X);YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198501-198808

58311PAN, REAR FLOOR

main58311-87012iCR21,YR20..D198408-198508

sub58311-87029

main58311-87013iKR26..V4D..06S198211-198608

sub58311-28370

main58311-87014iKR26..V5D..06S198211-198608

sub58311-28390

main58311-87015iCR21,YR20,21..E,G198211-198508

W/*SS

sub58311-87029

main58311-87016iYR20,21..07S198211-198508

sub58311-87029

main58311-87018iCR26,36,YR26..V4D..(05S,06S)..D198211-198608

sub58311-28370

main58311-87019iCR26,36,YR26..V5D..D198211-198608

sub58311-28390

main58311-87020iCR21,YR20..D198608-198808

main58311-87021iKR26..V4D..06S198608-198808

sub58311-28450

sub58325-28040

sub58339-28010

sub90167-50006

sub90189-05055

main58311-87023iCR26,36,KR26,YR26..V4D..(02S,03S)198211-198608

sub58311-28370

main58311-87024iCR26,27,36,YR26..V4D..N198211-198608

sub58311-28370

main58311-87025iKR26..V5D..06S198608-198808

sub58311-28390

main58311-87026iKR26..V5D..03S198211-198608

sub58311-28390

main58311-87027iYR26..V5D..N198211-198608

sub58311-28390

main58311-87030iCR21,YR20..D198508-198608

main58311-87031iYR20..HRF..E;YR20..MRF..08S;YR20..HRF..5F..G;CR21,30,YR21,30..E,G198508-198808

main58311-87032iCR21,30,YR20,21,30..Q198508-198808

main58311-87035iCR21,YR20,21..E198608-198808

W/BIG SEAT

main58311-87036iCR28,YR28198508-198608

sub58311-28370

main58311-87037iCR26,36,YR26..V4D..(05S,06S)..D198608-198808

sub58311-28510

sub58325-28040

sub58339-28010

sub90167-50006

sub90189-05055

main58311-87038iCR26,36,YR26..V5D..D198608-198808

sub58311-28460

sub58325-28040

sub58339-28010

sub90167-50006

sub90189-05055

main58311-87039iCR26,36,KR26,YR26..V4D..(02S,03S)198608-198808

sub58311-28370

sub58325-28040

sub58339-28010

sub90167-50006

sub90189-05055

main58311-87040iCR26,27,36,YR26..V4D..N198608-198808

sub58311-28370

main58311-87041iKR26..V5D..03S198608-198808

sub58311-28390

sub58325-28040

sub58339-28010

sub90167-50006

sub90189-05055

main58311-87042iCR26,27,YR26..V5D..N198608-198808

sub58311-28390

main58311-87043iCR28,37,YR28,36198608-198808

sub58311-28390

58325DBRACE, REAR FLOOR PANEL, RH

main58325-87001iCR2#,3#,KR26,YR2#,3#198211-198808

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-87002-04iCR21,30,YR20,21,30..E198608-198808

BLUE,BLUE,TRIM8#

main58325-87002-06iCR21,30,YR20,21,30..E198608-198808

BROWN,BROWN,TRIM4#

58326DBRACE, REAR FLOOR PANEL, LH

main58326-87001iCR2#,3#,KR26,YR2#,3#198211-198808

58450COVER ASSY, BATTERY SERVICE HOLE

main58209-87001iCR26,27,36,YR26..V4D..05S198211-198808

W/RR HEATER

58450APACKING, BATTERY SERVICE HOLE COVER

main58449-87002iCR26,27,36,YR26..V4D..05S198211-198808

W/RR HEATER

58717PACKING, COOLER AIR INLET COVER

main58717-87004iCR36..V4D198510-198808

58731BCAP, REAR ABSORBER, RH

main58731-87001iCR21,30,YR20,21,30198211-198808

58732BCAP, REAR ABSORBER, LH

main58732-87001iCR21,30,YR20,21,30198211-198808

9004871033

main90048-71033

9004874013

main90048-74013

9012206009

main90122-06009

904670501803

main90467-0501803

9095001011

main90950-01011

9095001022

main90950-01022

9095001126

main90950-01126

9095001133

main90950-01133

909500138701

main90950-0138701

9095001429

main90950-01429

9165140616

main91651-40616

34 parts on this diagram · 3 diagrams in section
