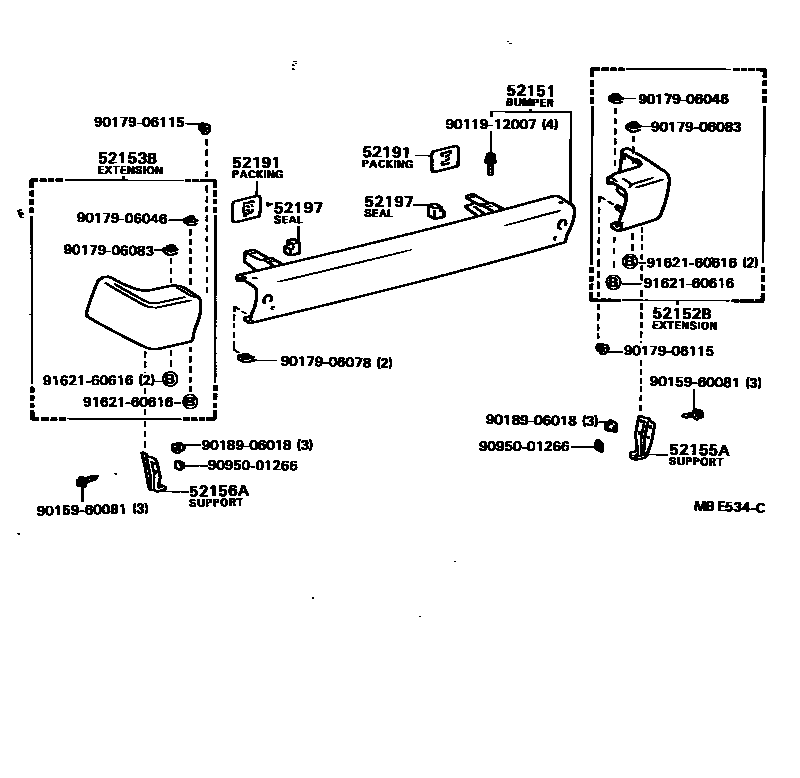

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52151BUMPER ASSY, REAR

main52019-29025iCR26,27,36,KR26,YR26198211-198611

sub52019-87008

main52019-87008iCR26,27,36,KR26,YR26198611-198808

sub52019-28900

52152BEXTENSION, REAR BUMPER, RH

main52106-29125iCR26,27,36,KR26,YR26198211-198808

52153BEXTENSION, REAR BUMPER, LH

main52107-29245iCR26,27,36,KR26,YR26198211-198808

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28020iCR21,28,30,37,YR20,21,28,3#198211-198808

main52155-87001iCR2#,3#,KR26,YR2#,3#198211-198808

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-87001iCR2#,3#,KR26,YR2#,3#198211-198808

main52156-28010iCR21,28,30,37,YR20,21,28,3#198211-198808

52191PACKING, REAR BUMPER STAY

main52191-28010iCR21,28,30,37,YR20,21,28,3#198211-198808

main52191-87002iCR21,28,30,37,YR20,21,28,3#198211-198808

main52191-87003iCR26,27,36,KR26,YR26198211-198808

52197SEAL, REAR BUMPER LOWER TO UPPER

main52192-87001iCR26,27,36,KR26,YR26198211-198808

main52192-87002iCR28,37,YR28,36198512-198808

9011912007

main90119-12007

9015960081

main90159-60081

9017906046

main90179-06046

9017906078

main90179-06078

9017906083

main90179-06083

9017906115

main90179-06115

9018906018

main90189-06018

9095001266

main90950-01266

9162160616

main91621-60616

16 parts on this diagram · 3 diagrams in section
