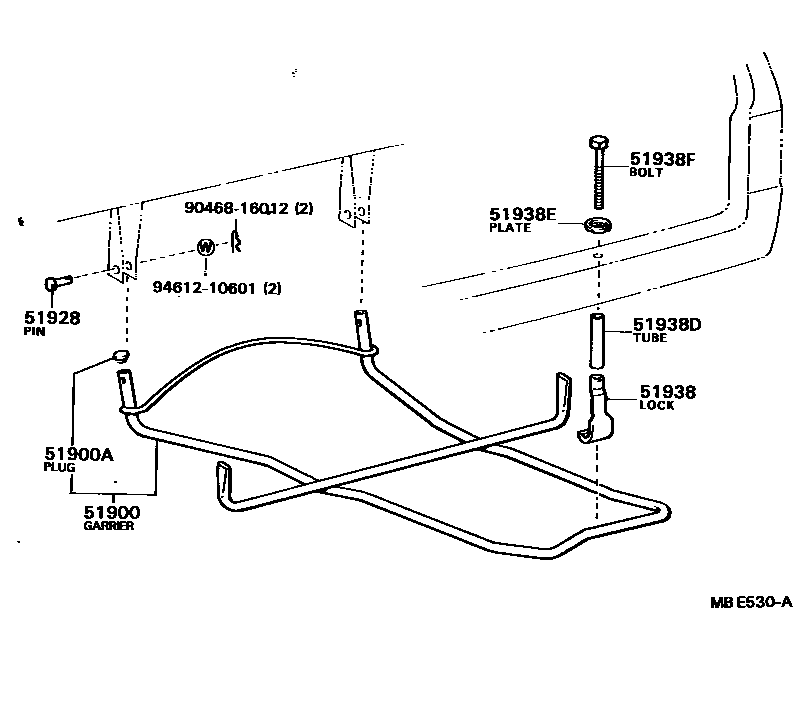

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28020iCR21,YR20,21198211-198808

sub51900-28021

main51900-28030iCR26,27,28,36,37,KR26,YR26,28,36198211-198808

main51900-28050iCR30,YR30198510-198808

51900APLUG, HOLE(FOR SPARE WHEEL CARRIER)

main90950-01591iCR21,YR21;YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198702-198808

main90950-01592iCR26,27,28,3#,KR26,YR26,28,3#198702-198808

51928PIN, SPARE WHEEL CARRIER

main90240-06002iCR2#,3#,KR26,YR2#,3#198211-198808

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iCR30,YR30198510-198511

sub51938-28030

main51938-28020iCR2#,KR26,YR2#198211-198511

sub51938-22020

main51938-28030iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198511-198808

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17028iCR21,YR20..E,G,X198211-198808

L=88

main90440-17032iKR26..03S198211-198808

L=43

main90440-17033iCR28198211-198808

L=80.5

main90440-17034iCR21,26,27,KR26,YR26,28..B,D,G,N198211-198808

L=74.2

main90440-17036iCR30,YR30198510-198808

L=58

main90440-17037iCR36,37,YR36198508-198808

L=113.5

main90440-17038iCR21,YR20,21..HRF..(E,Q)198608-198808

L=95

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iCR2#,3#,KR26,YR2#,3#198211-198808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iCR21,YR20,21..HRF..(E,Q)198608-198808

L=187.5

main90101-12048iCR21,YR20..E198211-198808

L=180

main90101-12094iKR26..03S198211-198808

L=135

main90101-12097iCR2#,KR26,YR20,26..D,E,G,N,R198211-198808

L=166

main90101-12101iCR28198211-198808

L=172

main90101-12124iCR36,37,YR36198508-198808

L=205.5

main90101-12125iCR30,YR30198510-198808

L=150

9046816012

main90468-16012

9461210601

main94612-10601

9 parts on this diagram · 1 diagram in section
