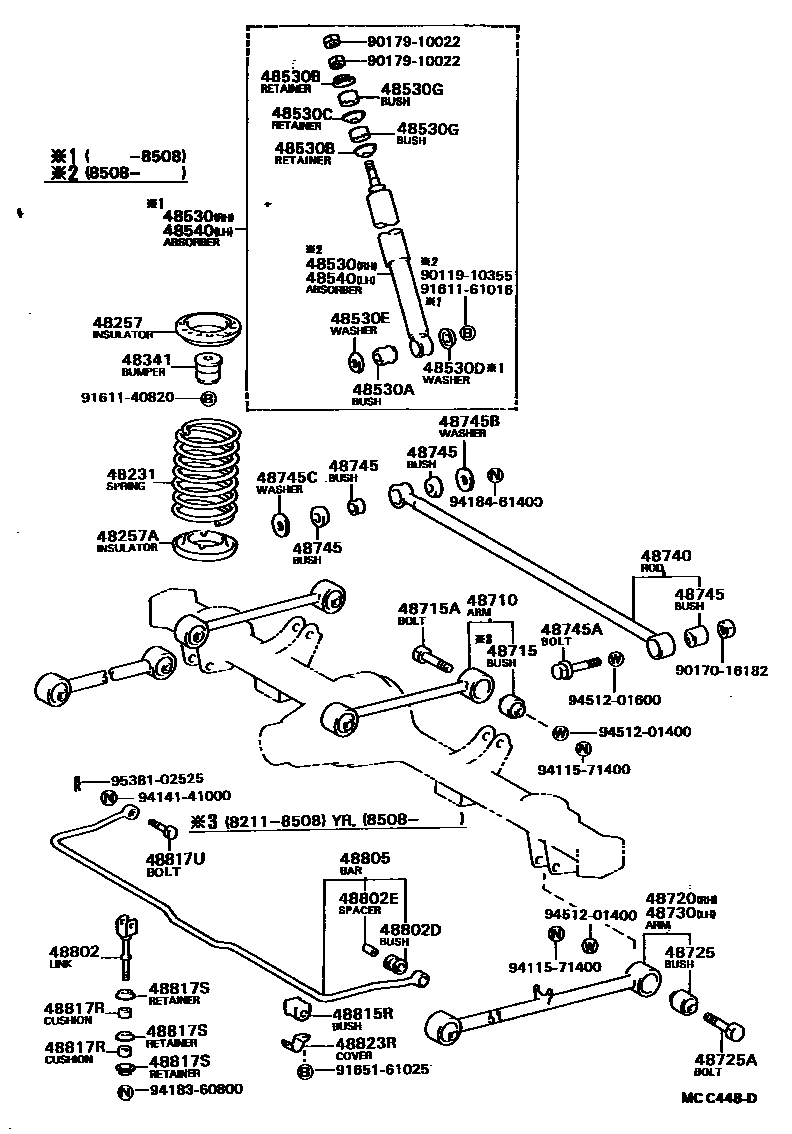

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48231SPRING, COIL, REAR

main48231-28010×2iYR20,21..D,G198211-198408

main48231-28040×2iCR21,YR20,21..E,Q,X198211-198408

main48231-28060×2iCR21,YR20,21198211-198408

COLD SPEC

main48231-28080×2iYR20,21..MRF..(D,G)198408-198508

main48231-28100×2iCR21..E,G198408-198508

main48231-28110×2iCR21,YR20,21198408-198508

COLD SPEC

main48231-28120×2iYR20..HRF..5F..G;CR21,YR20..MRF..(D,G)198508-198808

main48231-28130×2iCR21,YR20,21..E,Q198508-198808

COLD SPEC

main48231-28140×2iCR21,YR20,21..E,Q198508-198808

COLD SPEC

main48231-28150×2iCR30,YR30..E,Q198510-198808

main48231-28200×2iCR30,YR30..G198510-198808

48257INSULATOR, REAR COIL SPRING

main48257-28010×2iCR21,30,YR20,21,30198211-198606

main48257-28011×2iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198606-198808

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-28010×2iCR21,30,YR20,21,30198211-198808

48341BUMPER, REAR SPRING

main48341-28040×2iCR21,30,YR20,21,30198211-198808

main48341-35020×2iCR26,27,28,36,KR26,YR26,28,36198211-198708

main48341-35030×2iCR28198708-198808

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-28080iCR26,27,28,KR26,YR26,28198511-198802

main48531-28150iYR20..HRF..5F..G;CR21,YR20..MRF..(D,G)198508-198802

main48531-28160iCR21,YR20,21..E,Q198508-198802

COLD SPEC

main48531-28170iCR21,YR20,21..E,Q198508-198802

COLD SPEC

main48531-28180iCR30,YR30..E,Q198510-198802

main48531-28200iCR36198510-198802

main48531-28250iCR30,YR30..G198510-198802

main48531-28280iCR37,YR36198608-198802

main48531-80016iCR21,YR20,21198211-198408

sub48531-80592

main48531-80018iCR26,27,KR26,YR26198211-198508

sub48531-80594

main48531-80048iYR20,21..MRF..(D,G)198408-198508

sub48531-80598

main48531-80052iCR21..E,G198408-198508

sub48531-80599

main48531-80053iCR21,YR20,21198408-198508

COLD SPEC

sub48531-80600

main48531-80210iYR20..HRF..5F..G;CR21,YR20..MRF..(D,G)198802-198808

sub48531-80617

main48531-80215iCR21,YR20,21..E,Q198802-198808

sub48531-80618

main48531-80220iCR21,YR20,21..E,Q198802-198808

COLD SPEC

sub48531-80619

main48531-80235iCR30,YR30..E,Q198802-198808

main48531-80240iCR36198802-198808

sub48531-80241

main48531-80250iCR30,YR30..G198802-198808

sub48531-80621

main48531-80255iCR37,YR36198802-198808

sub48531-80256

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001×4iCR2#,36,KR26,YR2#,36198211-198708

main90385-16004×4iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,36,37,KR26,YR21,26,28,36198708-198808

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02002×2iCR21,30,YR20,21,30198211-198808

LWR

main90948-02045×2iCR21,30,YR20,21,30198211-198808

UPR

main90948-03004×4iCR26,27,28,36,37,KR26,YR26,28,36198211-198808

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02050×2iCR21,30,YR20,21,30198211-198808

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007×4iCR2#,KR26,YR2#198211-198508

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iCR21,YR20,21198211-198808

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002×2iCR21,30,YR20,21,30198211-198808

LWR

main90540-10005×2iCR21,30,YR20,21,30198211-198808

UPR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-28080iCR26,27,28,KR26,YR26,28198511-198802

main48531-28150iYR20..HRF..5F..G;CR21,YR20..MRF..(D,G)198508-198802

main48531-28160iCR21,YR20,21..E,Q198508-198802

COLD SPEC

main48531-28170iCR21,YR20,21..E,Q198508-198802

COLD SPEC

main48531-28180iCR30,YR30..E,Q198510-198802

main48531-28200iCR36198510-198802

main48531-28250iCR30,YR30..G198510-198802

main48531-28280iCR37,YR36198608-198802

main48531-80016iCR21,YR20,21198211-198408

sub48531-80592

main48531-80018iCR26,27,28,KR26,YR26,28198508-198511

sub48531-80594

main48531-80048iYR20,21..MRF..(D,G)198408-198508

sub48531-80598

main48531-80052iCR21..E,G198408-198508

sub48531-80599

main48531-80053iCR21,YR20,21198408-198508

COLD SPEC

sub48531-80600

main48531-80210iYR20..HRF..5F..G;CR21,YR20..MRF..(D,G)198802-198808

sub48531-80617

main48531-80215iCR21,YR20,21..E,Q198802-198808

sub48531-80618

main48531-80220iCR21,YR20,21..E,Q198802-198808

COLD SPEC

sub48531-80619

main48531-80235iCR30,YR30..E,Q198802-198808

main48531-80240iCR36198802-198808

sub48531-80241

main48531-80250iCR30,YR30..G198802-198808

sub48531-80621

main48531-80255iCR37,YR36198802-198808

sub48531-80256

48710ARM ASSY, UPPER CONTROL

main48710-28010×2iYR20,21198211-198508

main48710-28020×2iCR21198304-198508

main48710-28030×2iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198608

main48710-28040×2iCR21,YR21;YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198608-198808

48715BUSH, UPPER CONTROL ARM

main48702-20010×4iYR20,21198211-198508

main48702-28030×4iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198701

main48702-28031×4iYR20..HRF..E;CR21,30,YR21,30;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198701-198808

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-14016×4iCR21,30,YR20,21,30198211-198808

48720ARM ASSY, LOWER CONTROL, RH

main48720-28010iCR21,YR20,21198211-198508

main48720-28020iCR21,YR21;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

main48720-28030iCR30,YR30198510-198808

48725BUSH, LOWER CONTROL ARM

main48702-28020×4iCR21,YR20,21198211-198508

main48702-28040×4iCR21,30,YR21,30;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198701

main48702-28041×4iYR20..HRF..E;CR21,30,YR21,30;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198701-198808

48725ABOLT(FOR LOWER CONTROL ARM)

main90105-14017×4iCR21,30,YR20,21,30198211-198808

48730ARM ASSY, LOWER CONTROL, LH

main48730-28010iCR21,YR20,21198211-198508

main48730-28020iCR21,YR21;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

main48730-28030iCR30,YR30198510-198808

48740ROD ASSY, REAR LATERAL CONTROL

main48740-28010iCR21,YR20,21198211-198808

main48740-28020iCR30,YR30198510-198808

48745BUSH, LATERAL CONTROL ROD

main48706-22010iCR21,30,YR20,21,30198211-198701

ROD X BODY

main48706-28010iYR20..HRF..E;CR21,30,YR21,30;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198701-198808

ROD X BODY

main90385-20001×2iCR21,30,YR20,21,30198211-198808

ROD X HOUSING,L=15

main90386-20001iCR21,30,YR20,21,30198211-198808

ROD X HOUSING,L=12

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16006iCR21,30,YR20,21,30198211-198808

48745BWASHER, LATERAL CONTROL ROD CUSHION

main90201-15019iYR20..HRF..E;CR21,30,YR21,30;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198711-198808

main94614-11400iCR21,30,YR20,21,30198211-198711

48745CWASHER, LATERAL CONTROL ROD CUSHION

main94612-12000iCR21,30,YR20,21,30198211-198808

48802LINK SUB-ASSY, STABILIZER

main48802-28010×2iCR21,YR20,21198211-198808

main48802-28020iCR30,YR30198510-198808

48802DBUSH, STABILIZER LINK

main90385-11021×2iCR21,30,YR20,21,30198211-198808

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10275×2iCR21,30,YR20,21,30198211-198808

48805BAR SUB-ASSY, REAR STABILIZER

main48805-28010iCR21,YR20,21198211-198508

main48805-28020iCR21,YR21;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

48815RBUSH, STABILIZER(FOR REAR)

main48815-30040×2iCR21,YR21;YR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S)198508-198808

main48815-30060×2iCR30,YR30198510-198808

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12010×4iCR21,30,YR20,21,30198211-198808

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024×4iCR21,30,YR20,21,30198211-198808

T=1.2

main90948-02025×2iCR21,30,YR20,21,30198211-198808

T=1.0

48817UBOLT(FOR REAR STABILIZER)

main90102-10015×2iCR21,30,YR20,21,30198211-198808

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-28020×2iCR21,30,YR20,21,30198211-198808

9011910355

main90119-10355

9017016182

main90170-16182

9017910022

main90179-10022

9161140820

main91611-40820

9161161016

main91611-61016

9165161025

main91651-61025

9411571400

main94115-71400

9414141000

main94141-41000

9418360800

main94183-60800

9418461400

main94184-61400

9451201400

main94512-01400

9451201600

main94512-01600

9538102525

main95381-02525

46 parts on this diagram · 6 diagrams in section
