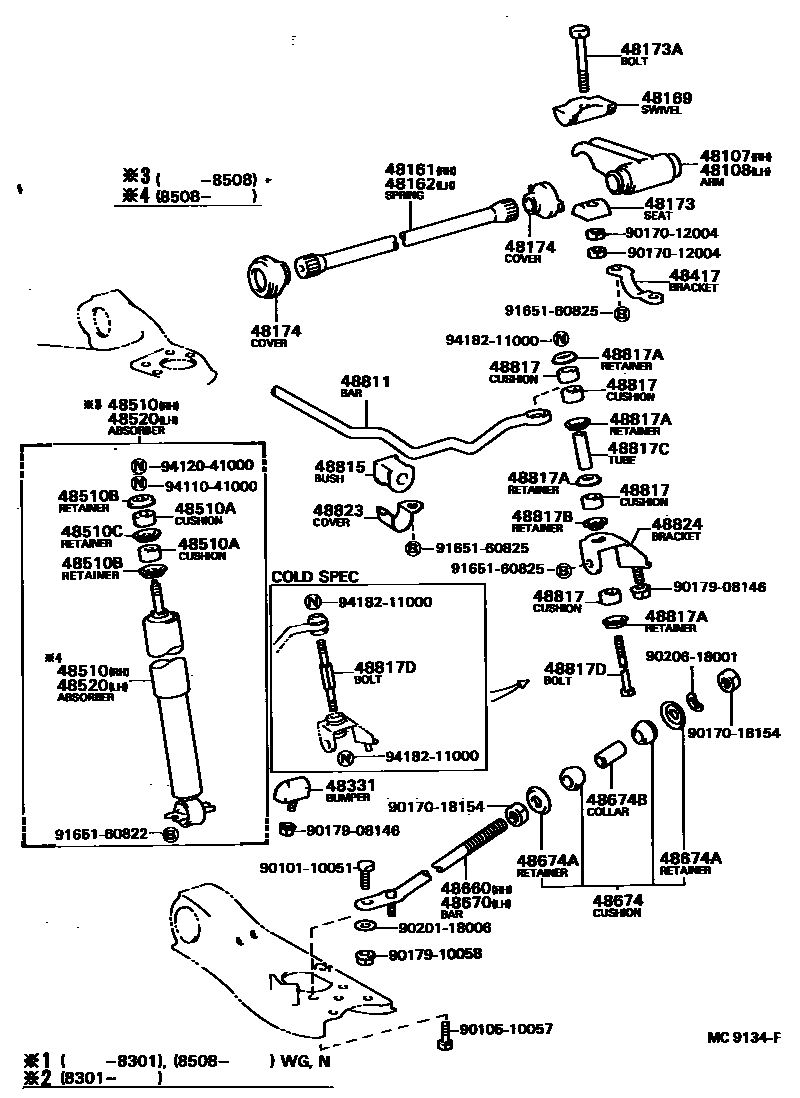

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48107ARM SUB-ASSY, ANCHOR, RH

main48107-28010iCR2#,3#,KR26,YR2#,3#198211-198808

sub48107-27060

sub48175-27030

48108ARM SUB-ASSY, ANCHOR, LH

main48108-28010iCR2#,3#,KR26,YR2#,3#198211-198808

sub48108-27060

sub48175-27030

48161SPRING, TORSION BAR, RH

main48161-28010iCR26..N;CR21,27,YR2#..4FC,5F,5H198211-198508

main48161-28020iCR21,YR20,21198211-198508

COLD SPEC

main48161-28030iCR26,YR26..D198211-198808

main48161-28040iCR3#,YR3#198510-198808

48162SPRING, TORSION BAR, LH

main48162-28010iCR26,27,28,YR26,28..B,N198508-198808

main48162-28020iCR21,YR20,21198211-198508

COLD SPEC

main48162-28030iCR26,YR26..D198211-198808

main48162-28040iCR3#,YR3#198510-198808

48169SWIVEL, ANCHOR ARM

main48169-28010×2iCR2#,KR26,YR2#198211-198808

main48169-28020×2iCR3#,YR3#198510-198808

48173SEAT, ANCHOR ARM ADJUSTER

main48173-27010×2iCR2#,3#,KR26,YR2#,3#198211-198808

48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)

main90101-12096×2iCR2#,3#,KR26,YR2#,3#198211-198808

48174COVER, TORSION BAR DUST

main48174-27010×2iCR2#,3#,KR26,YR2#,3#198211-198808

FR

main48175-27010×2iCR2#,3#,KR26,YR2#,3#198211-198808

RR

48331BUMPER, FRONT SPRING, NO.1

main48305-30030×2iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198608-198808

main48305-39015×2iCR2#,3#,KR26,YR2#,30198211-198608

48417BRACKET, SPRING

main48417-28030iCR2#,3#,KR26,YR2#,3#198211-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48500-28090iCR3#,YR3#198510-198802

main48500-28110iCR26,YR26..D198508-198802

main48500-28120iCR26,27,YR26..N198508-198802

main48500-29275iCR21,YR20,21198211-198408

sub48500-29277

main48500-29276iCR21,YR20,21198408-198508

sub48500-29278

main48500-29285iCR26,KR26,YR26..D,R198211-198408

sub48500-29287

main48500-29286iCR26,KR26,YR26..D,R198408-198508

sub48500-29288

main48500-29295iYR26..N198211-198408

sub48500-29297

main48500-29296iCR26,27,YR26..N198408-198508

sub48500-29298

main48500-29315iYR20..HRF..E;YR20..HRF..5F..G;CR21,28,KR26,YR21,28;YR20..MRF..(08S,09S)198802-198808

sub48500-29316

main48500-29325iCR26,27,YR26..N198802-198808

sub48500-29326

main48500-29335iCR3#,YR3#198802-198808

sub48500-29606

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003×4iCR2#,KR26,YR2#198211-198808

main90948-01029×2iCR3#,YR3#198510-198808

LWR

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×4iKR26,YR2#,3#198211-198808

main90948-02076×2iCR3#,YR3#198510-198808

LWR

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02007×2iCR2#,KR26,YR2#198211-198808

main90948-02017×2iCR3#,YR3#198510-198808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48500-28090iCR3#,YR3#198510-198802

main48500-28110iCR26,YR26..D198508-198802

main48500-28120iCR26,27,YR26..N198508-198802

main48500-29275iCR21,YR20,21198211-198408

sub48500-29277

main48500-29276iCR21,YR20,21198408-198508

sub48500-29278

main48500-29285iCR26,KR26,YR26..D,R198211-198408

sub48500-29287

main48500-29286iCR26,KR26,YR26..D,R198408-198508

sub48500-29288

main48500-29295iYR26..N198211-198408

sub48500-29297

main48500-29296iCR26,27,YR26..N198408-198508

sub48500-29298

main48500-29315iYR20..HRF..E;YR20..HRF..5F..G;CR21,28,KR26,YR21,28;YR20..MRF..(08S,09S)198802-198808

sub48500-29316

main48500-29325iCR26,27,YR26..N198802-198808

sub48500-29326

main48500-29335iCR3#,YR3#198802-198808

sub48500-29606

48660BAR ASSY, STRUT, RH

main48660-28010iCR2#,KR26,YR2#198211-198508

main48660-28020iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

48670BAR ASSY, STRUT, LH

main48670-28010iCR2#,KR26,YR2#198211-198508

main48670-28020iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

48674CUSHION, STRUT BAR

main48674-29026×2iCR2#,KR26,YR2#198211-198808

48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)

main90948-02030×4iCR2#,KR26,YR2#198211-198808

48674BCOLLAR(FOR STRUT BAR CUSHION)

main90387-18002×2iCR2#,KR26,YR2#198211-198808

48811BAR, STABILIZER, FRONT

main48804-28010iCR3#,YR3#198510-198712

sub48811-28060

main48804-28011iCR3#,YR3#198712-198808

sub48811-28061

main48811-28020iCR21,YR20,21198211-198408

main48811-28030iCR26,27,YR26..N198211-198508

main48811-28050iCR21,YR20,21198408-198508

main48811-28080iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198508-198808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-10080×2iCR26,27,YR26..N198408-198508

main48815-14160×2iCR21,YR20,21198408-198508

main48815-30050×2iCR21,YR20,21198211-198408

main48815-30060×2iYR26..N198211-198408

main48815-30100×2iCR26,27,YR26..N198508-198808

48817CUSHION, FRONT STABILIZER

main90948-01002×8iCR26..N;CR21,27,28,3#,YR2#,3#..4FC,5F,5H198211-198808

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004×8iCR26..N;CR21,27,28,3#,YR2#,3#..4FC,5F,5H198211-198808

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02005×2iCR26..N;CR21,27,28,3#,YR2#,3#..4FC,5F,5H198211-198808

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14004×2iCR26..N;CR21,27,28,YR2#..4FC,5F,5H198211-198808

48817DBOLT(FOR FRONT STABILIZER)

main48819-27010×2iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198511-198808

COLD SPEC

main48819-28010×2iCR3#,YR3#198510-198712

main48819-28011×2iCR3#,YR3#198712-198808

main90101-10090×2iCR26..N;CR21,27,28,YR2#..4FC,5F,5H198211-198808

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-28020×2iCR21,YR2#..4FC,5F,5H198211-198408

main48823-28040×2iCR26..N;CR21,27,YR2#..4FC,5F,5H198408-198508

main48824-28060×2iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198508-198509

main48824-28061×2iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198509-198808

48824BRACKET, STABILIZER, FRONT

main48824-27030iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198508-198808

RH

main48824-28020iCR26..N;CR21,27,YR2#..4FC,5F,5H198211-198508

RH,W/O COLD SPEC

main48824-28030×2iCR3#,YR3#198510-198808

main48829-27030iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198508-198808

LH

main48829-28020iCR26..N;CR21,27,YR2#..4FC,5F,5H198211-198508

LH,W/O COLD SPEC

9010110051

main90101-10051

9010510057

main90105-10057

9017012004

main90170-12004

9017018154

main90170-18154

9017908146

main90179-08146

9017910058

main90179-10058

9020118006

main90201-18006

9020618001

main90206-18001

9165160822

main91651-60822

9165160825

main91651-60825

9411041000

main94110-41000

9412041000

main94120-41000

9418211000

main94182-11000

42 parts on this diagram · 2 diagrams in section
