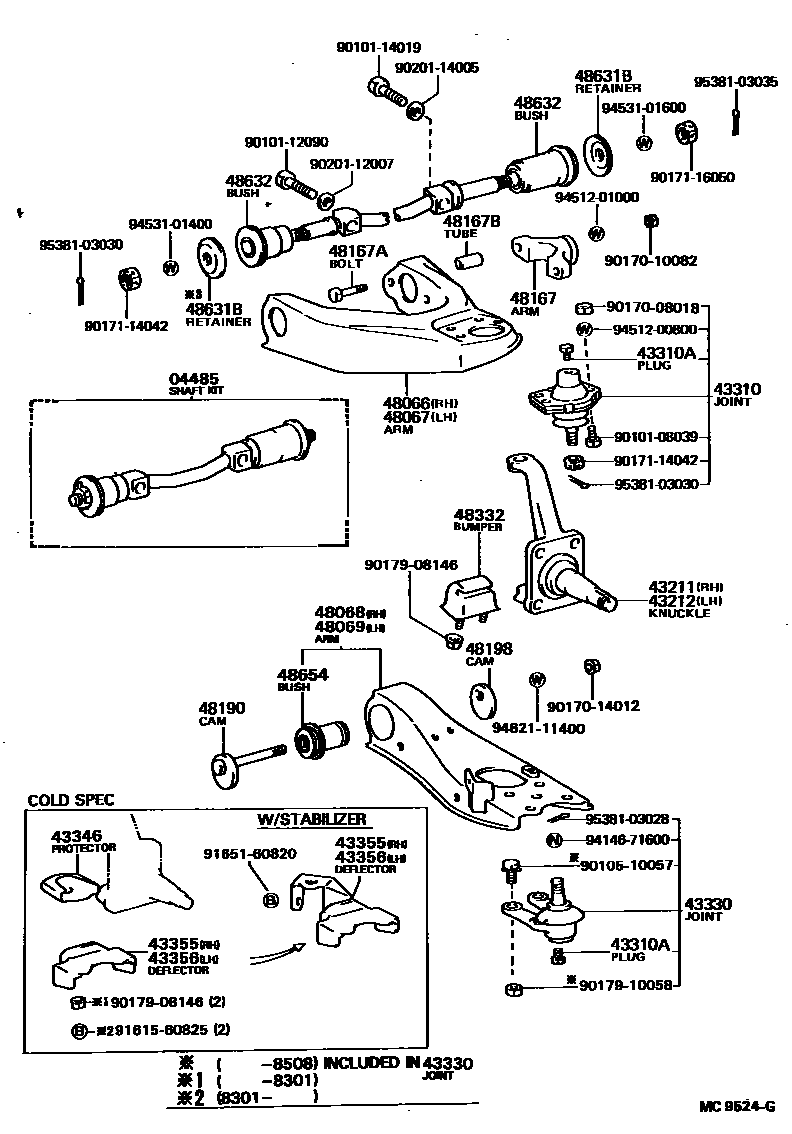

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iYR21..E;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198211-198808

main04485-28021iYR21..Q198508-198808

sub04485-28022

43211KNUCKLE, STEERING, RH

main43201-28010iCR3#,YR3#198510-198808

main43211-28020iCR2#,KR26,YR2#198211-198508

sub43211-28021

main43211-28021iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

43212KNUCKLE, STEERING, LH

main43202-28010iCR3#,YR3#198510-198808

main43211-28020iCR2#,KR26,YR2#198211-198508

sub43211-28021

main43211-28021iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

43310JOINT ASSY, UPPER BALL

main43350-29036iCR2#,KR26,YR2#198211-198808

RH

sub43350-29076

main43360-29056iCR2#,KR26,YR2#198211-198808

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014iCR2#,KR26,YR2#198211-198508

UPR & LWR

main90345-06014iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

UPR

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29115iCR2#,KR26,YR2#198211-198508

RH

sub43330-29175

main43330-29165iCR3#,YR3#198510-198808

RH

sub43330-29166

main43330-29175iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

sub43330-29545

main43340-29095iCR2#,KR26,YR2#198211-198508

LH

sub43330-29175

main43340-29115iCR3#,YR3#198510-198808

LH

sub43340-29116

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-28010iCR2#,KR26,YR2#198211-198508

COLD SPEC

sub43346-28011

main43346-28011iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

COLD SPEC

sub43346-28012

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-27030iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198508-198511

COLD SPEC

sub43355-27031

main43355-27031iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198511-198808

COLD SPEC

main43355-28010iYR2#..4FC,5F,5H198211-198301

COLD SPEC

sub43355-28011

sub91615-60825

main43355-28011iCR26..N;CR21,27,YR2#..4FC,5F,5H198301-198508

COLD SPEC

main43355-28020iKR26,YR26..4H198211-198301

COLD SPEC

sub43355-28021

sub91615-60825

main43355-28021iKR26,YR26..4H198301-198808

COLD SPEC

main43355-28030iCR36..V4D;CR30,37,YR3#198510-198808

LOWER ARM SIDE

main43355-28060iCR3#,YR3#198510-198808

BALL JOINT SIDE

43356DEFLECTOR, LOWER ARM ICE, LH

main43355-28020iCR26..V4D198211-198301

COLD SPEC

sub43355-28021

sub91615-60825

main43355-28021iCR26..V4D..D198301-198808

COLD SPEC

main43355-28060iCR3#,YR3#198510-198808

BALL JOINT SIDE

main43356-27020iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,YR20..(HRF,SRF)..(E,N,Q);CR21,27,28,YR21,26,28..4FC,5F,5H198508-198511

COLD SPEC

sub43356-27021

main43356-27021iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR21,28,YR21,26,28..4FC,5F,5H198511-198808

COLD SPEC

main43356-28010iYR2#..4FC,5F,5H198211-198301

COLD SPEC

sub43356-28011

sub91615-60825

main43356-28011iCR26..N;CR21,27,YR2#..4FC,5F,5H198301-198508

COLD SPEC

main43356-28020iCR36..V4D;CR30,37,YR3#198510-198808

LOWER ARM SIDE

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28030iCR3#,YR3#198510-198808

sub48066-28050

main48610-27020iYR21..Q198508-198608

sub48610-27021

main48610-27021iYR21..Q198608-198808

sub48610-28020

main48610-28011iYR21..E;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198508-198608

sub48610-28012

main48610-28012iYR20,21..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198608-198808

sub48610-28013

main48610-28013iCR2#,KR26,YR2#198211-198508

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28030iCR3#,YR3#198510-198808

sub48067-28050

main48630-27020iYR21..Q198508-198608

sub48630-27021

main48630-27021iYR21..Q198608-198808

sub48630-28020

main48630-28011iYR21..E;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198508-198608

sub48630-28012

main48630-28012iYR20,21..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198608-198808

sub48630-28013

main48630-28013iCR2#,KR26,YR2#198211-198508

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27050iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

sub48068-28040

main48068-28020iCR2#,KR26,YR2#198211-198508

main48068-28030iCR3#,YR3#198510-198712

main48068-28031iCR3#,YR3#198712-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27050iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

sub48069-28040

main48069-28020iCR2#,KR26,YR2#198211-198508

main48069-28030iCR3#,YR3#198510-198712

main48069-28031iCR3#,YR3#198712-198808

48167ARM, TORQUE

main48106-28010iCR2#,KR26,YR2#198211-198808

main48106-28020iCR3#,YR3#198510-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085iCR2#,KR26,YR2#198211-198808

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCR2#,KR26,YR2#198211-198808

48190CAM ASSY, CAMBER ADJUST

main48190-20010iCR2#,KR26,YR2#198211-198509

main48190-27010iCR3#,YR3#198509-198808

sub48190-27020

sub90179-14046

48198CAM, CAMBER ADJUST, NO.2

main48198-20010iCR2#,KR26,YR2#198211-198509

main48198-27010iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198509-198808

48332BUMPER, FRONT SPRING, NO.2

main48331-27030iYR20..HRF..5F..G;CR2#,KR26,YR21,26;YR20..HRF..(E,Q,X);YR20..MRF..(08S,09S)198504-198508

main48331-27050iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

sub48331-27051

main48331-28020iCR3#,YR3#198510-198808

main48331-29045iCR2#,KR26,YR2#198211-198504

sub48331-27030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCR2#,KR26,YR2#198211-198808

RR

main90948-02049iCR2#,KR26,YR2#198211-198808

FR

48632BUSH, UPPER ARM

main48632-27010iYR21..E;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198508-198808

FR

main48632-27020iYR21..Q198508-198808

FR

sub48632-28030

sub90201-14024

main48632-30040iCR2#,KR26,YR2#198211-198508

FR

main48635-27030iYR21..Q198508-198808

RR

sub48635-28040

sub90201-16024

main48635-28010iYR21..E;YR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR26,28;YR20..MRF..(08S,09S)198211-198808

RR

48654BUSH, LOWER ARM

main48061-27010iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198509-198611

sub48061-27011

main48061-27011iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198611-198808

main48061-28010iCR2#,KR26,YR2#198211-198509

sub48061-28020

main48061-28020iCR3#,YR3#198510-198611

sub48061-28021

main48061-28021iCR3#,YR3#198611-198808

9010108039

main90101-08039

9010112090

main90101-12090

9010114019

main90101-14019

9010510057

main90105-10057

9017008018

main90170-08018

9017010082

main90170-10082

9017014012

main90170-14012

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9017910058

main90179-10058

9020112007

main90201-12007

9020114005

main90201-14005

9161560825

main91615-60825

9165160820

main91651-60820

9414671600

main94146-71600

9451200800

main94512-00800

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9462111400

main94621-11400

9538103028

main95381-03028

9538103030

main95381-03030

9538103035

main95381-03035
