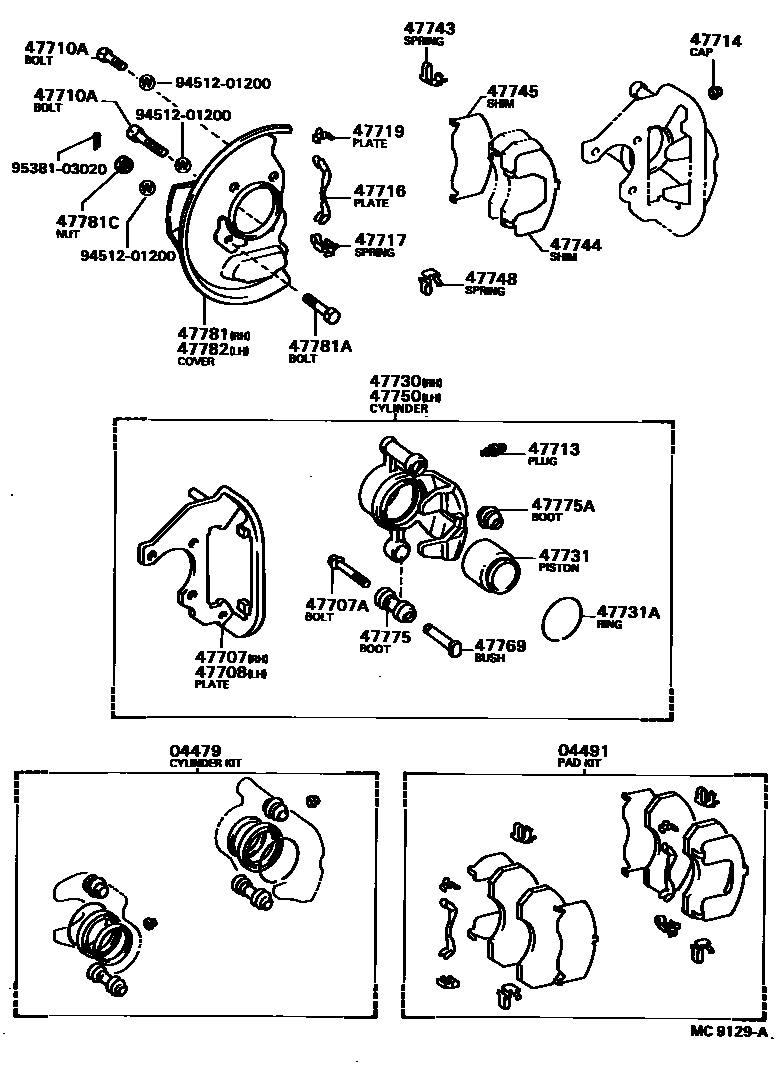

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14070iCR2#,KR26,YR2#198211-198508

main04479-28010iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main04479-28031iCR3#,YR3#198605-198808

main04479-28040iCR3#,YR30198510-198605

04491PAD KIT, DISC BRAKE, FRONT

main04491-28020iCR26,KR26,YR2#198211-198212

main04491-28020iCR2#,KR26,YR20,26..D,E,G,N,R,X198212-198508

13IN DISC

main04491-28030iYR20..Q;CR21,YR21198212-198508

14IN DISC

main04491-28030iYR20..MRF..5F..G198310-198311

WHITE WAGON

main04491-28070iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198608

main04491-28071iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198608-198808

main04491-28080iCR3#,YR3#198510-198808

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-27030iCR21,26,27,KR26,YR26,28..B,D,G,N198608-198808

13IN DISC

main47707-28010iCR2#,KR26,YR20,26..D,E,G,N,R,X198211-198508

13IN DISC

main47707-28020iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47707-28020iYR20..Q;CR21,YR21198211-198508

14IN DISC

main47707-28030iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,28,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N,R)198508-198608

13IN DISC

main47707-28040iCR3#,YR3#198510-198808

main47707-28060iCR21,YR20,21..HRF..(E,Q)198508-198808

14IN DISC

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199iCR26,KR26,YR2#198211-198212

L=67.5

main90119-08384iCR2#,KR26,YR2#198212-198808

L=65.0

main90119-10385iCR3#,YR3#198510-198808

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-27030iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198608-198808

13IN DISC

main47708-28010iCR2#,KR26,YR20,26..D,E,G,N,R,X198211-198508

13IN DISC

main47708-28020iYR20..Q;CR21,YR21198211-198508

14IN DISC

main47708-28020iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47708-28030iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,28,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N,R)198508-198608

13IN DISC

main47708-28040iCR3#,YR3#198510-198808

main47708-28060iCR21,YR20,21..HRF..(E,Q)198508-198808

14IN DISC

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iCR2#,KR26,YR2#198211-198808

main90101-12030iCR2#,KR26,YR2#198211-198808

main90101-12123iCR3#,YR3#198510-198808

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCR2#,3#,KR26,YR2#,30198211-198808

main47547-27030iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,KR26,YR26,28..CBR,DSL198608-198610

main47547-27040iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198610-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCR2#,3#,KR26,YR20,21,28,3#198211-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28010iCR2#,KR26,YR2#198211-198508

main47716-28020iYR20..HRF..(E,Q);YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198508-198808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,28,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N)198211-198701

RH

main47717-14050iCR21..DSL198611-198701

RH,13IN DISC

main47718-14090iCR2#,3#,KR26,YR2#,3#198211-198701

LH

main47718-14090iCR21..DSL198611-198701

LH,13IN DISC

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-14030iCR2#,3#,KR26,YR2#,3#198211-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27040iCR21,26,27,KR26,YR26,28..B,D,G,N198608-198808

13IN DISC

main47730-28010iCR26,KR26,YR2#..D,E,G,N,R,X198211-198212

13IN DISC

main47730-28011iCR2#,KR26,YR20,26..D,E,G,N,R,X198212-198308

13IN DISC

main47730-28012iCR2#,KR26,YR20,26..D,E,G,N,R,X198308-198508

13IN DISC

main47730-28020iYR20..Q198211-198212

14IN DISC

main47730-28021iYR20..Q;CR21,YR21198212-198308

14IN DISC

main47730-28030iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47730-28030iYR20..Q;CR21,YR21198308-198508

14IN DISC

main47730-28040iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,28,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N,R)198508-198608

13IN DISC

main47730-28050iCR21,YR20,21..HRF..(E,Q)198508-198608

14IN DISC

main47730-28060iCR3#,YR3#198510-198808

main47730-28100iCR28198708-198808

main47730-28100iCR21,YR20,21..HRF..(E,Q)198608-198808

14IN DISC

47731PISTON, FRONT DISC BRAKE

main47731-14090iCR2#,KR26,YR2#198211-198508

main47731-28020iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main47731-28030iCR3#,YR3#198510-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iCR3#,YR3#198510-198808

main90522-67001iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main90522-69002iCR2#,KR26,YR2#198211-198508

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCR2#,3#,KR26,YR20,21,28,3#198211-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28010iCR2#,KR26,YR20,26..D,E,G,N,R,X198212-198508

13IN DISC

main47744-28010iCR26,KR26,YR2#198211-198212

main47744-28020iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47744-28020iYR20..Q;CR21,YR21198212-198508

14IN DISC

main47744-28020iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main47744-28040iCR3#,YR3#198510-198709

main47744-28050iCR3#,YR3#198709-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-28030iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198608-198808

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCR2#,3#,KR26,YR2#,3#198211-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27040iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,KR26,YR26,28..CBR,DSL198608-198808

13IN DISC

main47750-28010iCR26,KR26,YR2#..D,E,G,N,R,X198211-198212

13IN DISC

main47750-28011iCR2#,KR26,YR20,26..D,E,G,N,R,X198212-198308

13IN DISC

main47750-28012iCR2#,KR26,YR20,26..D,E,G,N,R,X198308-198508

13IN DISC

main47750-28020iYR20..Q198211-198212

14IN DISC

main47750-28021iYR20..Q;CR21,YR21198212-198308

14IN DISC

main47750-28030iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47750-28030iYR20..Q;CR21,YR21198308-198508

14IN DISC

main47750-28040iCR21..DSL198508-198608

13IN DISC

main47750-28050iCR21,YR20,21..HRF..(E,Q)198508-198608

14IN DISC

main47750-28060iCR3#,YR3#198510-198808

main47750-28100iCR28198608-198808

14IN DISC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010iCR26,KR26,YR2#198211-198212

L=51.5

main47769-28010iCR2#,KR26,YR2#198212-198808

L=50.0

main47769-28020iCR3#,YR3#198510-198808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iCR2#,KR26,YR2#198211-198508

main47775-17010iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198508-198808

main47775-28020iCR3#,YR3#198510-198808

47775ABOOT, PIN

main47776-14010iCR2#,3#,KR26,YR2#,3#198211-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28030iCR2#,KR26,YR20,26..D,E,G,N,R,X198211-198508

13IN DISC

main47781-28040iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47781-28040iYR20..Q;CR21,YR21198211-198508

14IN DISC

main47781-28050iCR21..MRF198508-198808

13IN DISC

main47781-28060iCR28198508-198808

14IN DISC

main47781-28080iCR3#,YR3#198510-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iCR2#,KR26,YR2#198211-198808

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iCR2#,KR26,YR2#198211-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28030iCR2#,KR26,YR20,26..D,E,G,N,R,X198211-198508

13IN DISC

main47782-28040iYR20..MRF..5F..G198310-198311

WHITE WAGON

main47782-28040iYR20..Q;CR21,YR21198211-198508

14IN DISC

main47782-28050iYR20..HRF..5F..G;YR20..MRF..(08S,09S);CR26,27,28,KR26,YR20,26,28..(HRF,SRF)..(B,D,E,N,R)198508-198808

13IN DISC

main47782-28060iCR28198508-198808

14IN DISC

main47782-28080iCR3#,YR3#198510-198808

9451201200

main94512-01200

9538103020

main95381-03020

28 parts on this diagram · 3 diagrams in section
