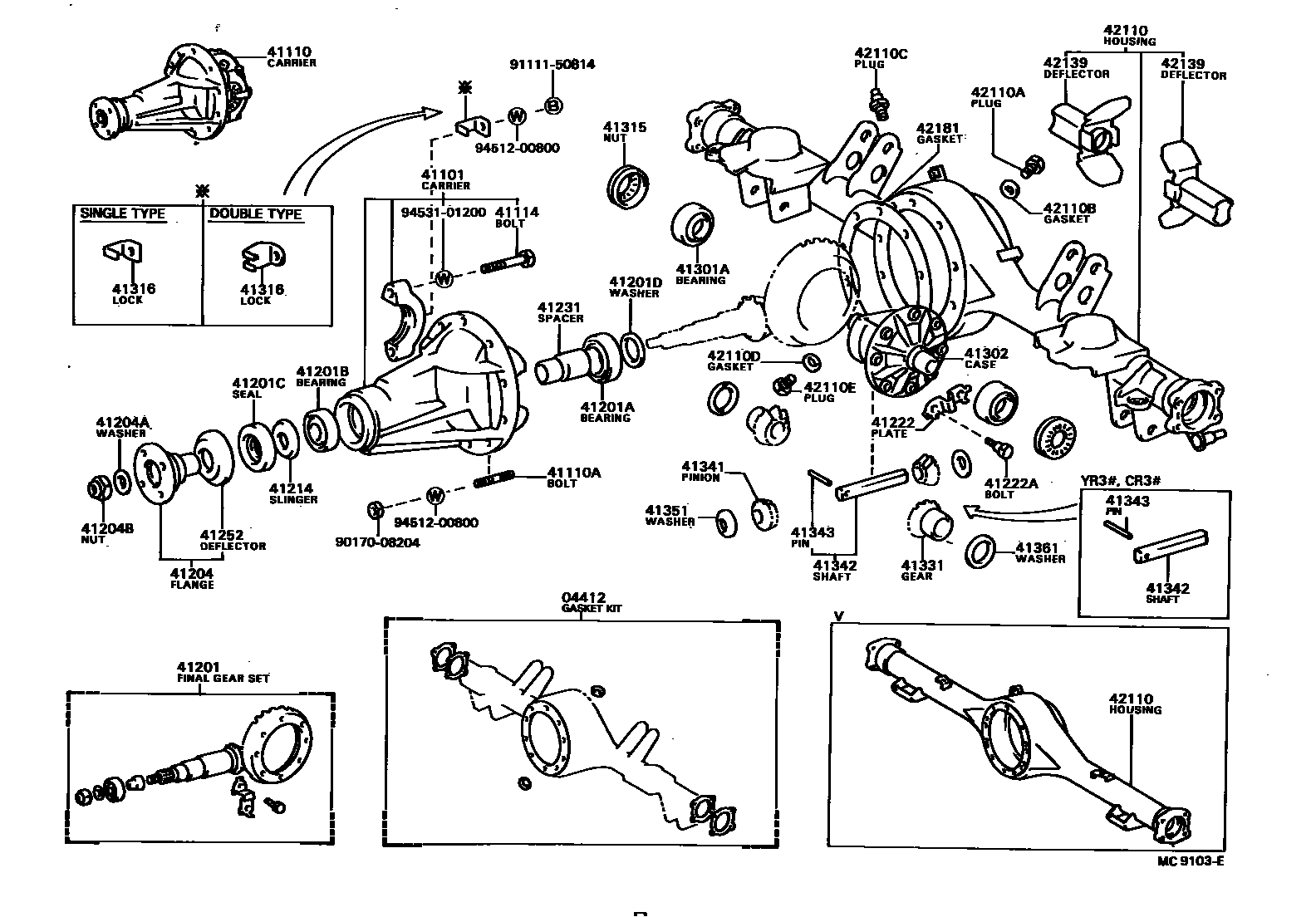

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-20030iCR2#,KR26,YR2#198211-198808

main04412-30010iCR3#,YR3#198510-198808

sub04412-30020

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-30010iCR2#,KR26,YR2#198211-198808

main41101-30031iCR3#,YR3#198510-198808

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20241iYR20..4FC..08S198211-198808

main41110-20251iYR20..MTM..(08S,09S)198211-198508

main41110-21020iYR26;YR21,28..4FC198211-198808

main41110-22110iCR28,YR20..HRF..4FC..(B,E,Q)198211-198808

sub41110-27120

main41110-27030iCR21,KR26..(4FC,4H)..(D,E,R)198211-198808

sub41110-27100

main41110-28070iYR3#..5F198510-198808

main41110-28080iCR37198510-198808

main41110-28090iCR36198510-198808

main41110-28100iYR3#..5F198510-198808

main41110-28110iCR30;YR3#..4FC198510-198808

main41110-28120iCR36198510-198808

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iCR2#,3#,KR26,YR2#,3#198211-198808

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iCR2#,3#,KR26,YR2#,3#198211-198808

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29167iYR20..MTM..(D,E,G,X)198211-198302

sub41201-29168

main41201-29168iYR20..MTM..(D,E,G,X)198302-198508

sub41201-29765

main41201-29216iYR26;YR20..4FC..Q198211-198302

R=43:10,*AXC=E282

sub41201-29217

main41201-29217iCR21..HRF198302-198808

main41201-29306iKR26198211-198302

R=43:9,*AXC=E362

sub41201-29307

main41201-29307iCR21,KR26..(4FC,4H)..(D,E,R)198302-198808

sub41201-29865

main41201-39187iCR30;YR3#..4FC198510-198808

sub41201-39735

main41201-39187iCR37198708-198808

sub41201-39735

main41201-39218iYR20..5F..Q;YR20..MRF..5F..G198211-198302

sub41201-39555

main41201-39286iCR26198211-198302

R=41:9,*AXC=E252

sub41201-39287

main41201-39287iCR26;CR21,27..4FC198302-198808

sub41201-80020

main41201-39298iCR36198510-198808

sub41201-80017

main41201-39555iYR20..4FC..08S198302-198808

main41201-39565iYR3#..5F198510-198808

sub41201-39725

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iCR3#,YR3#198510-198808

main90366-35031iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198510-198808

KOYO

sub90366-35064

main90366-35055iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198510-198604

NACHI

sub90366-35031

main97609-32307iCR2#,KR26,YR2#198211-198510

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iCR2#,KR26,YR2#198211-198510

main90366-30022iCR3#,YR3#198510-198808

sub90366-30078

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iCR2#,3#,KR26,YR2#,3#198211-198808

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35397iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35398iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35399iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35400iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35401iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35402iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35403iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35404iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35434iCR2#,3#,KR26,YR2#,3#198211-198808

sub90201-35515

main90201-35435iCR2#,3#,KR26,YR2#,3#198211-198808

sub90201-35516

main90201-35436iCR2#,3#,KR26,YR2#,3#198211-198808

sub90201-35517

main90201-35437iCR2#,3#,KR26,YR2#,3#198211-198808

sub90201-35518

main90201-35438iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35439iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35440iCR2#,3#,KR26,YR2#,3#198211-198808

main90201-35441iCR2#,3#,KR26,YR2#,3#198211-198808

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iCR2#,KR26,YR2#198211-198808

main41204-35050iCR3#,YR3#198510-198808

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iCR2#,3#,KR26,YR2#,3#198211-198808

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iCR2#,3#,KR26,YR2#,3#198211-198808

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-30021iCR2#,3#,KR26,YR2#,3#198211-198808

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-28010iYR20..HRF..(E,Q);YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198512-198808

main41222-30030iCR2#,KR26,YR2#198211-198512

sub41222-28010

main41222-35030iCR3#,YR3#198510-198808

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iCR2#,3#,KR26,YR2#,3#198211-198808

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iCR3#,YR3#198510-198808

main41231-22020iCR2#,KR26,YR2#198211-198808

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-30010iCR2#,3#,KR26,YR2#,3#198211-198808

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45011iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198707-198808

sub90368-45014

main90368-45066iCR2#,KR26,YR2#198211-198808

main90368-50024iCR3#,YR3#198510-198808

W/LSD

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-22011iCR3#,YR3#198510-198808

W/LSD

main41311-30022iCR2#,KR26,YR2#198211-198808

main41311-30050iCR3#,YR3#198510-198808

sub41311-28010

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iCR2#,KR26,YR2#198211-198808

main41315-35010iCR3#,YR3#198510-198808

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iCR2#,3#,KR26,YR2#,3#198211-198808

SINGLE TYPE

main41317-30010iCR2#,3#,KR26,YR2#,3#198211-198808

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-22010iCR3#,YR3#198510-198808

W/LSD

main41331-30021iCR2#,KR26,YR2#198211-198808

sub41331-22070

main41331-30030iCR3#,YR3#198510-198808

41341PINION, REAR DIFFERENTIAL

main41341-14031iCR3#,YR3#198510-198808

W/LSD

main41341-30011iCR2#,KR26,YR2#198211-198808

main41341-30020iCR3#,YR3#198510-198808

sub41341-30050

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iCR3#,YR3#198510-198808

sub41342-22021

main41342-30011iYR20..HRF..E;YR20..HRF..5F..G;CR2#,KR26,YR21,26,28;YR20..MRF..(08S,09S)198805-198808

main41342-39015iCR2#,KR26,YR2#198211-198805

sub41342-30011

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iCR2#,3#,KR26,YR2#,3#198211-198808

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30032iCR2#,KR26,YR2#198211-198808

main41351-30060iCR3#,YR3#198510-198808

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iCR2#,KR26,YR2#198211-198808

main41361-22030iCR2#,KR26,YR2#198211-198808

main41361-22040iCR2#,KR26,YR2#198211-198808

main41361-22140iCR2#,KR26,YR2#198211-198808

main41361-22150iCR2#,KR26,YR2#198211-198808

main41361-22160iCR2#,KR26,YR2#198211-198808

main41361-28020iCR3#,YR3#198510-198702

sub41361-28130

main41361-28030iCR3#,YR3#198510-198702

sub41361-28140

main41361-28040iCR3#,YR3#198510-198702

sub41361-28150

main41361-28050iCR3#,YR3#198510-198702

sub41361-28160

main41361-28060iCR3#,YR3#198510-198702

sub41361-28170

main41361-28070iCR3#,YR3#198510-198702

sub41361-28180

main41361-28080iCR3#,YR3#198510-198702

sub41361-28190

main41361-28090iCR3#,YR3#198510-198702

sub41361-28200

main41361-28100iCR3#,YR3#198510-198702

sub41361-28210

main41361-28110iCR3#,YR3#198510-198702

sub41361-28220

main41361-28130iCR3#,YR3#198510-198808

main41361-28140iCR3#,YR3#198510-198808

main41361-28150iCR3#,YR3#198510-198808

main41361-28160iCR3#,YR3#198510-198808

main41361-28170iCR3#,YR3#198510-198808

main41361-28180iCR3#,YR3#198510-198808

main41361-28190iCR3#,YR3#198510-198808

main41361-28200iCR3#,YR3#198510-198808

main41361-28210iCR3#,YR3#198510-198808

main41361-28220iCR3#,YR3#198510-198808

main41361-30040iCR3#,YR3#198510-198808

main41361-30050iCR3#,YR3#198510-198808

main41361-30060iCR3#,YR3#198510-198808

main41361-30070iCR3#,YR3#198510-198808

42110HOUSING ASSY, REAR AXLE

main42110-28090iCR21,YR20,21198211-198608

sub42110-28091

main42110-28091iCR21,YR21;YR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S)198608-198808

main42110-28100iCR26,27,KR26,YR26198211-198508

main42110-28120iCR36,37,YR36198510-198808

main42110-28130iCR26,27,28,KR26,YR26,28198508-198808

main42110-28160iCR30,YR30198608-198808

main42110-28180iCR30,YR30198510-198608

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iYR20..HRF..E;YR20..HRF..5F..G;YR20..MRF..(08S,09S);CR2#,3#,KR26,YR21,26,28,3#198609-198808

main90341-18049iCR2#,3#,KR26,YR2#,3#198211-198609

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iCR2#,3#,KR26,YR2#,3#198211-198808

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iCR2#,3#,KR26,YR2#,3#198211-198808

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iCR2#,3#,KR26,YR2#,3#198211-198808

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iCR2#,3#,KR26,YR2#,3#198211-198808

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iCR2#,KR26,YR2#198211-198808

main42108-30010iCR3#,YR3#198510-198808

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30010iCR2#,KR26,YR2#198211-198808

main42181-30020iCR3#,YR3#198510-198808

9017008204

main90170-08204

9111150814

main91111-50814

9451200800

main94512-00800

9453101200

main94531-01200

40 parts on this diagram · 2 diagrams in section
