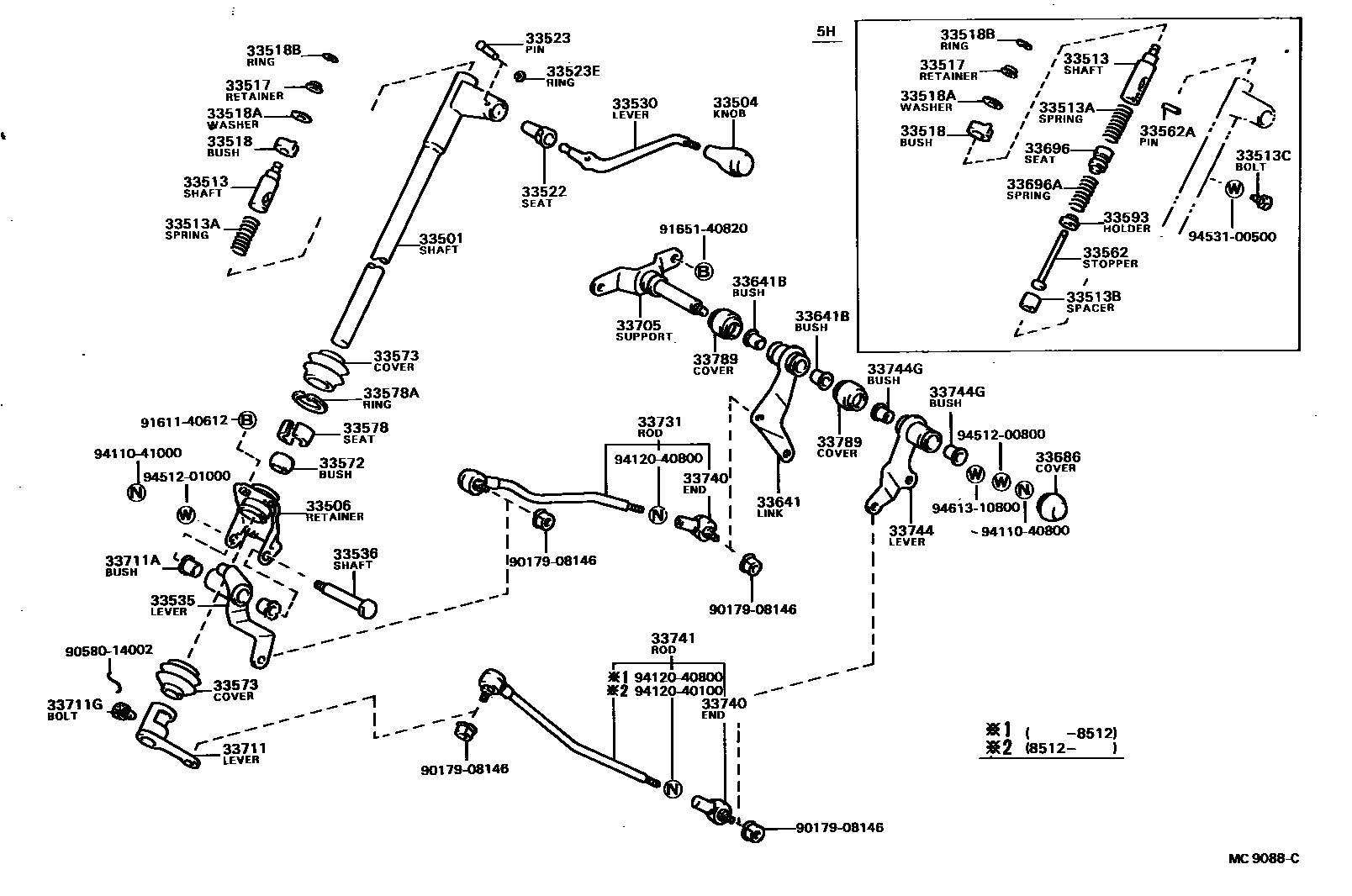

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-28030iKR26,YR26..4H198211-198808

main33501-28040iYR20,28..5H198211-198808

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iKR26,YR20,26,28..4H,5H198211-198808

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-28020iKR26,YR20,26..D,R198211-198508

main33506-28050iKR26,YR20,26,28..4H,5H198508-198808

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-26020iYR20,28..5H198211-198808

main33513-36020iKR26,YR26..4H198211-198808

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iKR26,YR20,26,28..4H,5H198211-198808

33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90560-11015iYR20,28..5H198211-198808

33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)

main90109-05012iYR20,28..5H198211-198808

33517RETAINER, CONTROL SHAFT UPPER SPRING

main33517-30010iKR26,YR20,26,28..4H,5H198211-198808

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-36010iKR26,YR20,26,28..4H,5H198211-198808

sub33518-35010

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main33515-30010iKR26,YR20,26,28..4H,5H198211-198808

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iKR26,YR20,26,28..4H,5H198211-198808

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iKR26,YR20,26,28..4H,5H198211-198808

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iKR26,YR20,26,28..4H,5H198211-198808

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iKR26,YR20,26,28..4H,5H198211-198808

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-28050iKR26,YR20,26,28..4H,5H198211-198808

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33534-28020iKR26,YR20,26,28..4H,5H198211-198808

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-28010iKR26,YR20,26,28..4H,5H198211-198808

33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT

main33562-26010iYR20,28..5H198211-198808

33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)

main90254-03006iYR20,28..5H198211-198808

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-28010iKR26,YR20,26,28..4H,5H198211-198808

33573COVER, CONTROL SHAFT DUST, LOWER

main33573-28010×2iKR26,YR20,26,28..4H,5H198211-198808

33578SEAT, CONTROL SHAFT LOWER BUSH, NO.1

main33578-28010×2iKR26,YR20,26,28..4H,5H198211-198808

33578ARING, SNAP (FOR CONTROL SHAFT LOWER BUSH SEAT)

main96151-02800iKR26,YR20,26,28..4H,5H198211-198808

33593HOLDER, SPRING (FOR SELECT LEVER)

main33593-26030iYR20,28..5H198211-198808

33641LINK, SELECTING (FOR COLUMN SHIFT)

main33641-28040iKR26,YR20,26..D,R198211-198508

main33641-28050iKR26,YR20,26,28..4H,5H198508-198808

33641BBUSH (FOR SELECTING LINK)

main90386-15110×2iKR26,YR20,26,28..4H,5H198211-198808

33686COVER, CONTROL LEVER DUST (FOR COLUMN SHIFT)

main33686-28010iKR26,YR20,26,28..4H,5H198211-198808

33696SEAT, SELECT SPRING

main33696-26020iYR20,28..5H198211-198808

33696ASPRING, COMPRESSION

main90501-18049iYR20,28..5H198211-198808

33705SUPPORT SUB-ASSY, CROSS SHAFT (FOR BODY SIDE)

main33705-28020iKR26,YR20,26,28..4H,5H198211-198808

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-28020iKR26,YR20,26..D,R198211-198507

main33527-28100iKR26,YR20,26,28..4H,5H198507-198808

33711ABUSH (FOR CONTROL SHAFT LEVER)

main90386-13007×2iKR26,YR20,26,28..4H,5H198211-198808

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iKR26,YR20,26,28..4H,5H198211-198808

33731ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)

main33720-28030iKR26,YR20,26..D,R198211-198508

main33720-28060iKR26,YR20,26,28..4H,5H198508-198808

33740END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)

main33740-26010×4iKR26,YR20,26,28..4H,5H198402-198512

main33740-35011×4iKR26,YR20,26..D,R198211-198402

main33740-36050×4iKR26,YR20,26,28..4H,5H198512-198808

33741ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33710-28040iKR26,YR20,26..D,R198211-198507

main33710-28041iKR26,YR20,26..D,R198507-198508

main33710-28060iKR26,YR20,26,28..4H,5H198508-198808

33744LEVER, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)

main33744-28030iKR26,YR20,26,28..4H,5H198211-198808

33744GBUSH (FOR SHIFTING, NO.1)

main90386-15110×2iKR26,YR20,26,28..4H,5H198211-198808

33789COVER, CROSS SHAFT DUST(FOR COLUMN SHIFT)

main33789-36010×2iYR20,28..5H198211-198808

RR

sub33789-36020

main33789-36030×2iKR26,YR20,26,28..4H,5H198211-198808

FR

9017908146

main90179-08146

9058014002

main90580-14002

9161140612

main91611-40612

9165140820

main91651-40820

9411040800

main94110-40800

9411041000

main94110-41000

9412040100

main94120-40100

9412040800

main94120-40800

9451200800

main94512-00800

9451201000

main94512-01000

9453100500

main94531-00500

9461310800

main94613-10800

51 parts on this diagram · 3 diagrams in section
