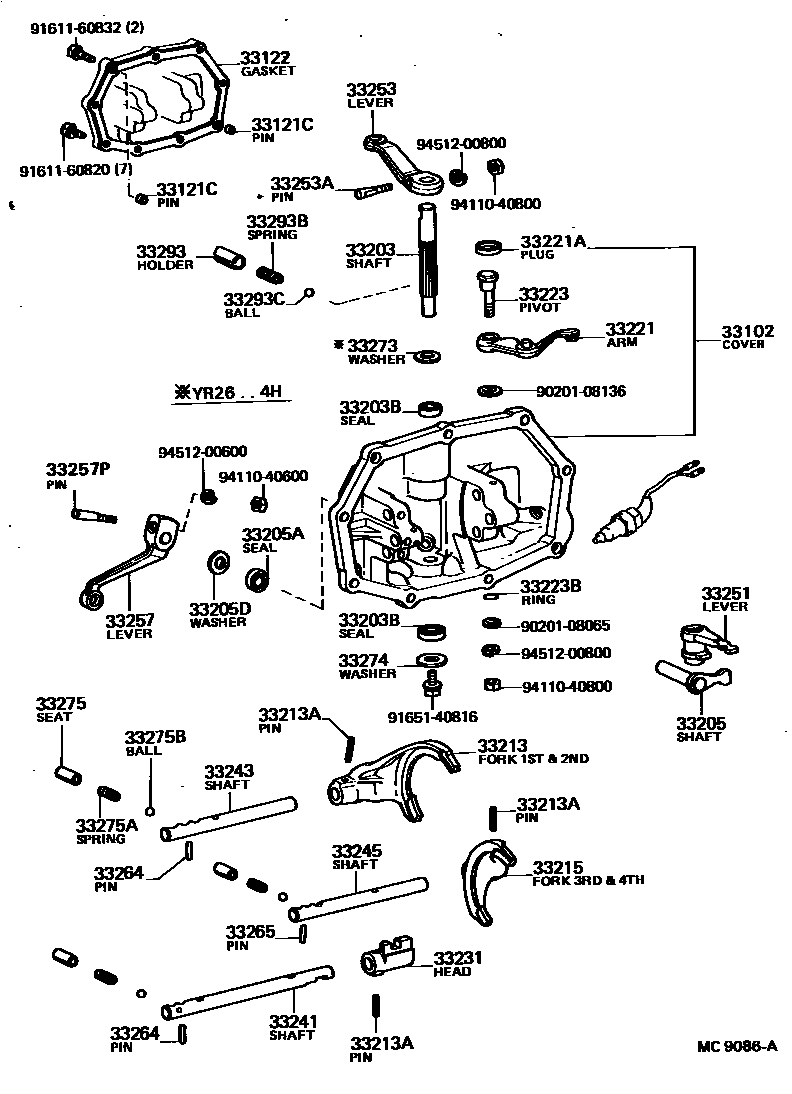

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-26010iKR26,YR26..4H198211-198308

sub33102-35040

main33102-35040iKR26,YR26..4H198308-198808

33121CPIN(FOR TRANSMISSION CASE COVER)

main90253-11001iKR26,YR26..4H198211-198808

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iKR26,YR26..4H198211-198808

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26021iKR26,YR26..4H198211-198808

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iKR26,YR26..4H198211-198808

LWR

main90311-18002iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

main90312-15003iKR26,YR26..4H198211-198808

UPR

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-28010iKR26,YR26..4H198211-198808

main33262-28020iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iCR21,26,28,3#,KR26,YR2#,3#..MTM198211-198808

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iCR21,26,28,3#,KR26,YR2#,3#..MTM198211-198808

33213FORK, 1ST & 2ND SHIFT

main33212-26030iYR20..HRF..5F..X;YR20..MTM..(D,E,G,Q);CR21,26,28,3#,YR21,26,28,3#..5F,5H198501-198808

main33212-28010iKR26,YR26..4H198211-198808

main33212-28021iCR21,26,YR2#..5F,5H198211-198501

sub33212-26030

sub33242-26020

sub90105-06143

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iCR21,26,KR26,YR2#..MTM198211-198808

33215FORK, 3RD & 4TH SHIFT

main33213-26020iKR26,YR26..4H198211-198808

main33213-28011iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

sub33220-26010

sub33364-26020

33221ARM, REVERSE SHIFT

main33221-28010iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

main33221-30010iKR26,YR26..4H198211-198808

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iKR26,YR26..4H198211-198612

sub96411-42500

main96411-42500iKR26,YR26..D198612-198808

33223PIVOT, SHIFT ARM

main33223-30011iKR26,YR26..4H198211-198808

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iKR26,YR26..4H198211-198808

33231HEAD, REVERSE SHIFT

main33231-26010iKR26,YR26..4H198211-198808

main33231-28010iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

sub33231-28020

sub33220-26010

sub33232-28020

sub33364-26020

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iKR26,YR26..4H198211-198808

main33244-28010iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

sub33244-28011

sub90520-12003

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iKR26,YR26..4H198211-198808

main33242-26020iYR20..HRF..5F..X;YR20..MTM..(D,E,G,Q);CR21,26,28,3#,YR21,26,28,3#..5F,5H198501-198808

main33242-28010iCR21,26,YR2#..5F,5H198211-198501

sub33242-26020

sub33212-26030

sub90105-06143

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iKR26,YR26..4H198211-198808

main33243-28020iCR21,26,YR2#..5F,5H198211-198508

sub33243-35050

sub90523-12001

main33243-35050iCR21,26,28,3#,YR2#,3#..(5F,5H)..(B,D,E,G,N,Q)198508-198808

sub33243-35051

sub90520-12003

33251LEVER, SHIFT & SELECT

main33251-26010iKR26,YR26..4H198211-198808

main33251-28011iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

sub33251-28012

33253LEVER, SHIFT OUTER, NO.1

main33253-28030iKR26,YR26..4H198211-198808

main33253-28041iCR26,YR20,26..5F,5H198211-198808

main33253-28050iCR21..5F..DSL198304-198808

main33253-28060iCR30,37..5F198508-198808

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

main33281-30010iKR26,YR26..4H198211-198411

sub33281-16020

33257LEVER, SELECT OUTER

main33257-27020iKR26,YR26..4H198211-198808

main33257-28031iCR26,YR20,26..5F,5H198211-198808

main33257-28041iCR26,28,36,YR20,21,26,3#..5F..(B,D,E,G,N,Q)198304-198808

main33257-28050iCR21,30..5F..TD198508-198808

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iKR26,YR26..4H198211-198808

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iKR26,YR26..4H198211-198808

main90360-10003iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

main90361-10002iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

main90361-10003iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iKR26,YR26..4H198211-198808

main90250-05020iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iYR26..D198211-198808

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iKR26,YR26..4H198211-198808

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iKR26,YR26..4H198211-198808

main90341-12008iCR21,26,28,3#,YR2#..5F,5H198211-198808

main90341-12014iYR3#..5F198510-198808

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13004iYR3#..5F198510-198808

sub90501-14123

main90501-14061iCR21,26,28,3#,YR2#..5F,5H198211-198808

sub90501-14123

main90501-14062iCR21,26,28,3#,YR2#,3#..5F,5H198211-198808

sub90501-14132

main90501-14638iKR26,YR26..4H198211-198808

33275BBALL, SHAFT DETENT

main90360-10003iCR21,26,28,3#,KR26,YR2#,3#..MTM198211-198808

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iKR26,YR26..4H198211-198808

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iKR26,YR26..4H198211-198808

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iKR26,YR26..4H198211-198808

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9165140816

main91651-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

43 parts on this diagram · 2 diagrams in section
