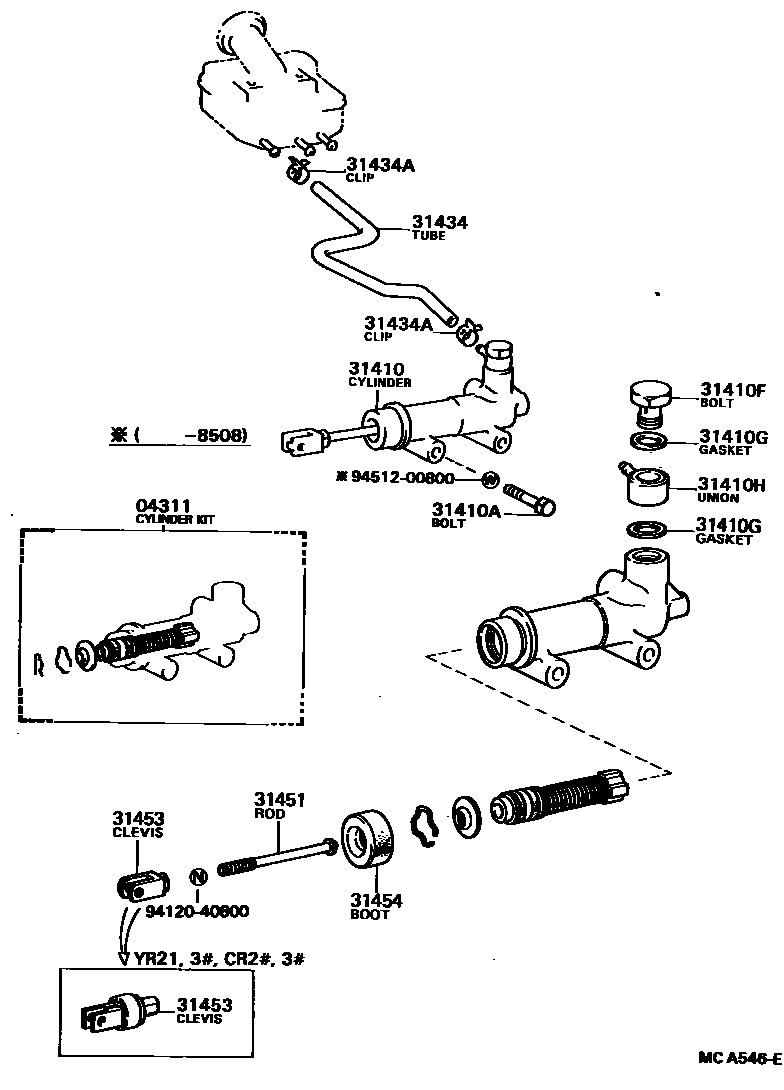

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iYR20,26..MTM198211-198401

main04311-14030iCR21,26,28,3#,YR2#,3#..MTM..(B,D,E,G,N,Q)198609-198704

sub04311-14031

main04311-14031iCR21,26,28,3#,YR2#,3#..MTM..(B,D,E,G,N,Q)198704-198808

sub04311-14032

main04311-30080iCR2#,YR21..5F198211-198401

sub04311-14020

main04311-30090iCR21,26,28,3#,YR2#,3#..MTM198401-198609

sub04311-30091

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28020iYR20,26..MTM198211-198508

sub31420-28021

main31420-28041iCR2#,YR21..5F198211-198508

sub31420-28042

main31420-28060iCR21,26..5F198403-198508

sub31420-28061

main31420-28080iYR20,26,28..MTM..(B,D,E,G,N,Q)198508-198704

sub31420-28081

main31420-28081iYR20,26,28..MTM..(B,D,E,G,N)198704-198710

sub31420-28082

main31420-28082iYR20,26,28..MTM..(B,D,E,G,N)198710-198808

sub31420-28092

main31420-28090iCR21,26,28,3#,YR21,3#..5F198508-198704

sub31420-28091

main31420-28091iCR21,26,28,3#,YR21,3#..5F198704-198710

sub31420-28092

main31420-28092iCR21,26,28,3#,YR21,3#..5F198710-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40865iCR21,26,YR2#..MTM198211-198508

main91611-60865iCR21,26,28,3#,YR2#,3#..MTM..(B,D,E,G,N,Q)198508-198808

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16078iCR21,26,28,3#,YR2#,3#..MTM198211-198808

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iCR21,26,28,3#,YR2#,3#..MTM198211-198808

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10125iCR21,26,28,3#,YR2#,3#..MTM198211-198808

31434TUBE, CLUTCH RESERVOIR

main31434-28020iCR21,26,YR2#..MTM198211-198508

main31434-28040iCR21,26,28,3#,YR2#,3#..MTM..(B,D,E,G,N,Q)198508-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iCR21,26,28,3#,YR2#,3#..MTM198211-198808

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iYR20,26,28..MTM198211-198609

main31451-22070iCR21,26,28,3#,YR21,3#..5F198609-198808

main31451-30060iCR21,26,28,3#,YR21,3#..5F198211-198609

main31451-30120iYR20,26,28..MTM..(B,D,E,G,N)198609-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28010iCR2#198403-198405

sub31404-28011

main31404-28011iCR21,26,28,3#,YR21,3#..5F198405-198808

sub31404-28012

main31404-30041iYR21..5F198211-198508

main31453-22010iYR20,26,28..MTM198211-198610

sub31453-35010

main31453-35010iYR20,26,28..MTM..(B,D,E,G,N)198610-198808

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iCR21,26,28,3#,YR2#,3#..MTM198211-198808

9412040800

main94120-40800

9451200800

main94512-00800

13 parts on this diagram · 1 diagram in section
