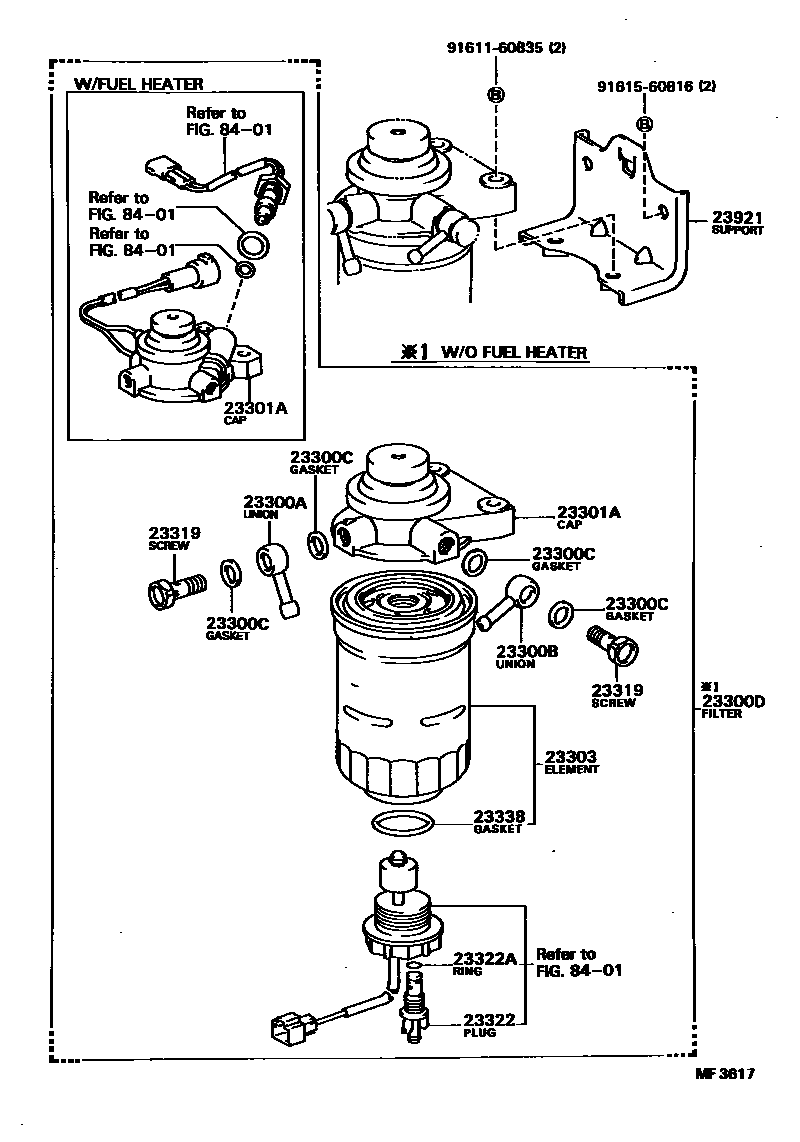

FUEL FILTER

0001 1 0002 1 0003 1

23300FILTER ASSY, FUEL

main23300-26060i4KJ..KR26198211-198808

23300AUNION, NIPPLE(FOR FUEL FILTER INLET)

main90405-08016i1C,2C#..CR2#,3#198211-198608

23300BUNION, NIPPLE(FOR FUEL FILTER OUTLET)

main90405-08016i1C,2C#..CR2#,3#198211-198608

23300CGASKET, NIPPLE UNION(FOR FUEL)

main22447-47030i1C,2C#..CR2#,3#198211-198608

23300DFILTER ASSY, FUEL(FOR DIESEL)

main23300-64060i1C,2C#..CR2#,3#198211-198608

W/O FUEL HEATER

23301ACAP ASSY, FUEL FILTER

main23301-54030i1C,2C#..CR2#,3#198508-198608

W/FUEL HEATER

main23301-64010i1C,2C#..CR2#,3#198211-198608

W/O FUEL HEATER

main23301-64070i1C,2C#..CR2#,3#198608-198808

W/O FUEL HEATER

main23301-64110i1C,2C#..CR2#,3#198608-198808

W/FUEL HEATER

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1C,2C#..CR2#,3#198211-198808

23319SCREW, FUEL PIPE FOLLOW

main90099-18011i1C,2C#..CR2#,3#198211-198608

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i1C,2C#..CR2#,3#198211-198808

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1C,2C#..CR2#,3#198211-198808

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1C,2C#..CR2#,3#198211-198808

23921SUPPORT, FUEL FILTER

main23921-64040i1C,2C..CR2#198211-198508

main23921-64110i1C,2C#..CR2#,3#198508-198808

main90462-10064i4KJ..KR26198211-198808

8401

9161160835

main91611-60835

9161560816

main91615-60816

15 parts on this diagram · 3 diagrams in section
