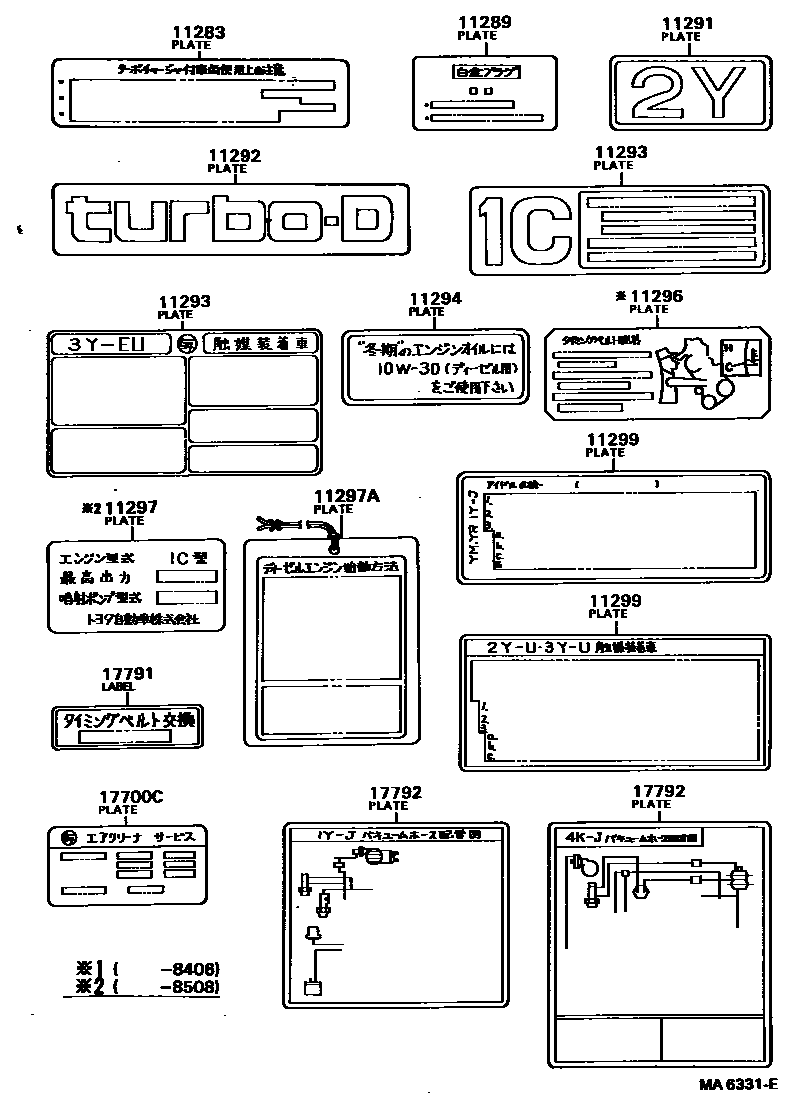

CAUTION PLATE & NAME PLATE (ENGINE)

11283PLATE, TURBOCHARGER CAUTION

main11294-64010i2CT..CR21198508-198510

sub11294-64040

main11294-64030i2CT..CR21,28,30,37198510-198804

main11294-64040i2CT..CR21,28,30,37198804-198808

sub11294-64070

11289PLATE, SPARK PLUG CAUTION

main11289-16010i2YU,3YEU..YR21,28,3#;2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S)198606-198808

main11289-70010i2YU,3YEU..YR21,28,30;2YU..YR20..HRF..5F..G;2YU..YR20..HRF..(E,Q,X);2YU..YR20..MRF..(08S,09S)198410-198606

sub11289-16010

main11289-72010i2YU,3YEU..YR20,21198211-198410

sub11289-73010

11291PLATE, ENGINE NAME

main11291-13020i4KJ..KR26198211-198508

sub11291-13050

main11291-13050i4KJ..KR26198508-198808

main11291-64050i2CT..CR21,28,30,37198508-198808

main11291-71010i1YJ..YR26198211-198808

main11291-72010i2YU..YR20,28198211-198808

main11291-73020i3YEU..YR21,3#198305-198808

11292PLATE, ENGINE NAME, NO.2

main11292-64010i2CT..CR21,28,30,37198508-198808

11293PLATE, ENGINE CAUTION & ENGINE NAME

main11293-64010i1C..CR26198211-198508

main11293-64020i2C..CR21,27198304-198508

main11293-64050i2CT..CR21,28,30,37198508-198808

main11293-64060i2C..CR21,27,28,36198508-198808

main11293-64070i1C..CR26198508-198808

main11293-73020i3YEU..YR21,30198305-198608

sub11296-73020

main11296-73020i3YEU..YR21,3#198608-198808

sub11296-73090

11294PLATE, ENGINE CAUTION, NO.2

main11294-54040i1C,2C#..CR2#,3#198412-198808

main11294-56010i1C,2C..CR2#198304-198412

sub11294-54040

main11294-56010i1C..CR26..V4D198211-198304

COLD SPEC

sub11294-54040

11296PLATE, TIMING BELT CAUTION

main11296-54010i1C,2C..CR2#198211-198406

11297PLATE, ENGINE CAUTION, NO.3

main11283-64020i1C..CR26198211-198508

63PS

11297APLATE, ENGINE START CAUTION

main11297-64010i1C,2C#..CR2#,3#198305-198808

11299PLATE, IDLE ADJUSTING CAUTION

main11299-71010i1YJ..YR26198211-198808

main11299-73020i2YU..YR20198211-198508

sub11299-73021

main11299-73021i2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);2YU..YR20,28..(HRF,SRF)..(B,E,Q)198508-198808

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-64020i2C..CR21198304-198808

main90917-07088i1C..CR26198211-198307

main90917-07092i1YJ,2YU..YR20,26198211-198307

main90917-07095i1YJ,2YU..YR20,26,28198307-198808

17791LABEL, MAINTENANCE INFORMATION

main17791-55010i1C,2C#..CR2#,3#198711-198808

main17791-64030i1C,2C#..CR2#,3#198602-198711

sub17791-55010

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main11293-13150i4KJ..KR26198211-198307

main11293-13151i4KJ..KR26198307-198508

main11293-13210i4KJ..KR26198508-198808

main17792-71010i1YJ..YR26198211-198508

sub17792-71011

main17792-71011i1YJ..YR26198508-198808

main17792-73030i2YU..YR20198211-198508

main17792-73140i2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);2YU..YR20,28..(HRF,SRF)..(B,E,Q)198508-198808

13 parts on this diagram · 1 diagram in section
