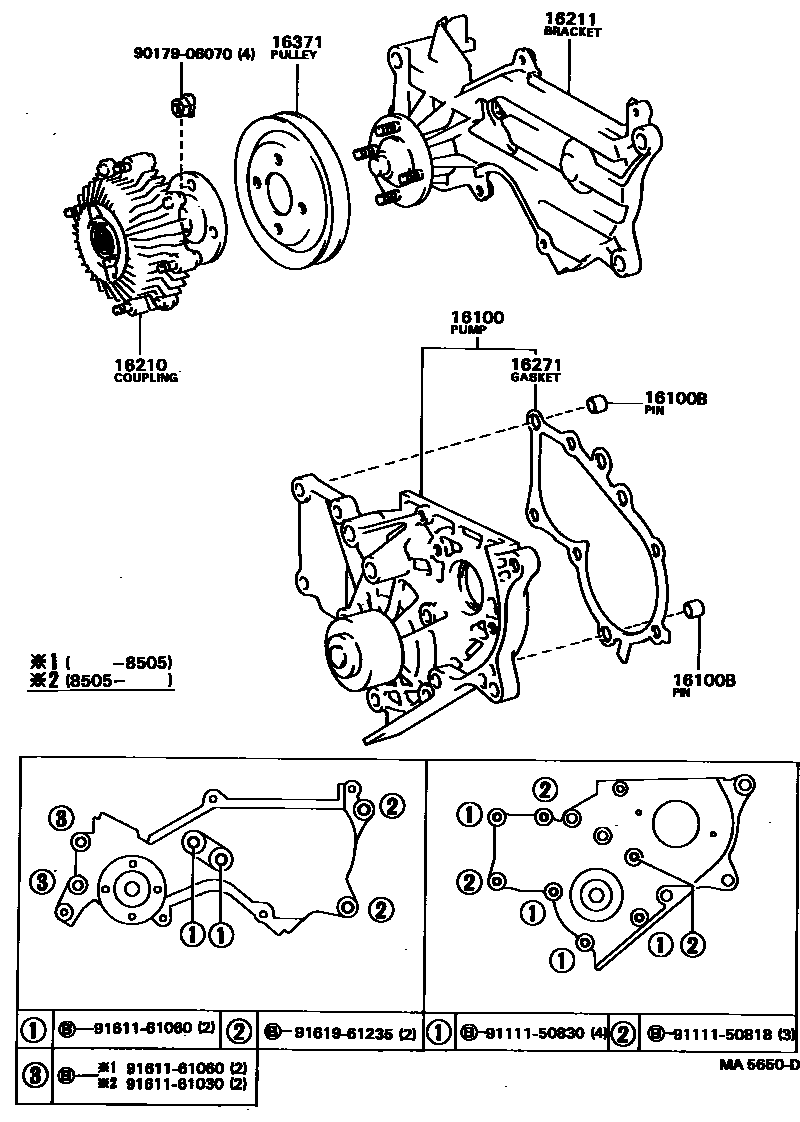

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-19045i4KJ..KR26198211-198304

main16100-19046i4KJ..KR26198304-198508

main16100-19155i4KJ..KR26198508-198808

sub16100-19156

main16100-69085i1C,2C#..CR2#,3#198211-198808

sub16100-69275

main16100-79035i1YJ,2YU,3YEU..YR2#,3#198211-198704

main16100-79036i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198704-198808

sub16100-79037

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i1C,2C#..CR2#,3#198211-198808

16210COUPLING ASSY, FLUID

main16210-13010i4KJ..KR26198211-198808

main16210-31010i1YJ,2YU,3YEU..YR2#198211-198408

main16210-64010i2C..CR21,27198304-198508

main16210-64020i2C..CR21..5F198304-198508

COLD SPEC

main16210-73010i2YU,3YEU..YR20,21,28,3#198408-198808

16211BRACKET, FLUID COUPLING

main16307-64010i1C,2C..CR2#198211-198505

sub91611-61030

main16307-64011i1C,2C..CR2#198505-198505

main16307-64012i1C,2C#..CR2#,3#198505-198808

16271GASKET, WATER PUMP

main16271-13021i4KJ..KR26198211-198808

sub16271-13030

main16271-64010i1C,2C#..CR2#,3#198211-198808

sub16271-64020

16371PULLEY, FAN

main16371-13010i4KJ..KR26198211-198808

main16371-64011i1C,2C#..CR2#,3#198508-198609

main16371-64020i1C,2C..CR21,26..5F198211-198508

main16371-64030i1C,2C#..CR2#,3#198609-198808

main16371-71010i1YJ,2YU..YR20,26198211-198508

sub16371-71021

main16371-73010i3YEU..YR21198305-198308

main16371-73011i3YEU..YR21198308-198508

9017906070

main90179-06070

9111150818

main91111-50818

9111150830

main91111-50830

9161161030

main91611-61030

9161161060

main91611-61060

9161961235

main91619-61235

12 parts on this diagram · 3 diagrams in section
