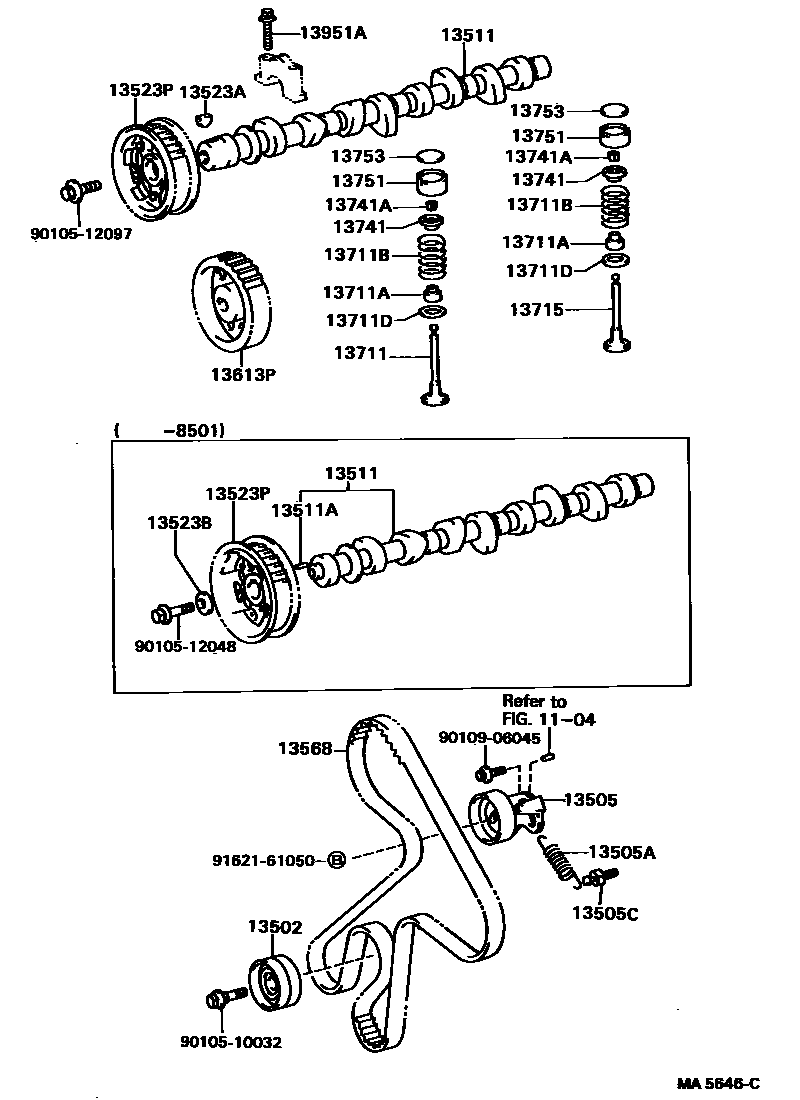

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1104

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-64020i1C,2C#..CR2#,3#198211-198808

sub13503-64021

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-64020i1C,2C#..CR2#,3#198211-198612

sub13505-64021

main13505-64021i1C,2C#..CR2#,3#198612-198808

sub13505-64011

13505ASPRING, TENSION(FOR IDLER)

main90507-18006i1C,2C#..CR2#,3#198211-198808

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i1C,2C#..CR2#,3#198211-198808

13511CAMSHAFT

main13501-13010i4KJ..KR26198211-198612

sub13501-13011

main13501-13011i4KJ..KR26198612-198808

sub13501-13012

main13511-64010i1C,2C..CR2#198211-198501

main13511-64011i1C,2C..CR2#198501-198508

main13511-64030i1C,2C..CR2#,36198508-198808

main13511-64040i2CT..CR21,28,30,37198508-198808

main13511-71900i1YJ..YR26198211-198707

sub13511-71901

main13511-71901i1YJ..YR26198707-198808

main13511-73900i2YU,3YEU..YR21,28,3#;2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S)198305-198707

sub13511-73902

main13511-73902i2YU..YR20..HRF..E;2YU,3YEU..YR21,28,3#;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S)198707-198808

13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)

main90250-05121i1C,2C..CR2#198211-198808

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i1YJ,2YU,3YEU..YR2#,3#198211-198808

main13523-13030i4KJ..KR26198211-198808

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1C,2C#..CR2#,3#198501-198808

main90280-05010i1YJ,2YU,3YEU..YR2#,3#198211-198609

main95161-10519i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198609-198808

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-10489i4KJ..KR26198211-198808

main90201-13019i1C,2C..CR2#198211-198501

main90201-14293i1YJ,2YU,3YEU..YR2#,3#198211-198808

13523PPULLEY, CAMSHAFT TIMING

main13051-64010i1C,2C..CR2#198211-198501

main13051-64011i1C,2C#..CR2#,3#198501-198808

sub13051-64012

13568BELT, TIMING

main13568-64010i1C,2C#..CR2#,3#198211-198603

sub13568-64011

main13568-64011i1C,2C#..CR2#,3#198603-198808

sub13568-69065

13613PPULLEY, INJECTION PUMP DRIVE

main13613-64010i1C,2C..CR2#198211-198505

sub13613-64011

main13613-64011i1C,2C#..CR2#,3#198505-198808

13711VALVE, INTAKE

main13711-24011i4KJ..KR26198211-198808

main13711-64010i1C,2C..CR2#198211-198504

sub13711-64011

sub13751-64011

main13711-64011i1C,2C..CR2#198504-198508

main13711-64020i1C,2C#..CR2#,3#198508-198808

main13711-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02053i1C,2C#..CR2#,3#198211-198808

sub90913-02110

main90913-02057i4KJ..KR26198211-198808

sub90913-02094

main90913-02065i1YJ,2YU,3YEU..YR2#,3#198211-198704

sub90913-02073

main90913-02073i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198704-198808

sub90913-02080

13711BSPRING, COMPRESSION(FOR INNER)

main90501-42293i4KJ..KR26198211-198808

main90501-43003i1C,2C#..CR2#,3#198211-198808

sub90501-43002

main90501-47005i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub90501-46001

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16002i4KJ..KR26198211-198808

main90201-16010i1C,2C#..CR2#,3#198211-198808

main90201-21002i1YJ,2YU,3YEU..YR2#,3#198211-198808

13715VALVE, EXHAUST

main13715-24013i4KJ..KR26198211-198808

main13715-64010i1C,2C..CR2#198211-198504

main13715-64012i1C,2C..CR2#198504-198508

main13715-64030i1C,2C..CR2#,36198508-198808

main13715-64040i2CT..CR21,28,30,37198508-198808

main13715-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

13741RETAINER, VALVE SPRING

main13741-24020i4KJ..KR26198211-198808

main13741-43010i1C,2C#..CR2#,3#198211-198808

main13741-63010i1YJ,2YU,3YEU..YR2#,3#198211-198808

13741ALOCK, VALVE SPRING RETAINER

main90913-03005i4KJ..KR26198211-198808

main90913-03014i1C,2C#..CR2#,3#198211-198808

13751LIFTER, VALVE

main13750-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub13750-71020

main13751-22014i4KJ..KR26198211-198808

main13751-64010i1C,2C..CR2#198211-198504

main13751-64011i1C,2C#..CR2#,3#198504-198808

13753SHIM, VALVE ADJUSTING

main13753-64010i1C,2C#..CR2#,3#198211-198808

main13753-64030i1C,2C#..CR2#,3#198211-198808

main13753-64050i1C,2C#..CR2#,3#198211-198808

main13753-64070i1C,2C#..CR2#,3#198211-198808

main13753-64090i1C,2C#..CR2#,3#198211-198808

main13753-64110i1C,2C#..CR2#,3#198211-198808

main13753-64130i1C,2C#..CR2#,3#198211-198808

main13753-64150i1C,2C#..CR2#,3#198211-198808

main13753-64170i1C,2C#..CR2#,3#198211-198808

main13753-64190i1C,2C#..CR2#,3#198211-198808

main13753-64210i1C,2C#..CR2#,3#198211-198808

main13753-64230i1C,2C#..CR2#,3#198211-198808

main13753-64250i1C,2C#..CR2#,3#198211-198808

main13753-64270i1C,2C#..CR2#,3#198211-198808

main13753-64290i1C,2C#..CR2#,3#198211-198808

main13753-64310i1C,2C#..CR2#,3#198211-198808

main13753-64330i1C,2C#..CR2#,3#198211-198808

main13753-64350i1C,2C#..CR2#,3#198211-198808

main13753-64370i1C,2C#..CR2#,3#198211-198808

main13753-64390i1C,2C#..CR2#,3#198211-198808

main13753-64410i1C,2C#..CR2#,3#198211-198808

main13753-64430i1C,2C#..CR2#,3#198211-198808

main13753-64450i1C,2C#..CR2#,3#198211-198808

main13753-64470i1C,2C#..CR2#,3#198211-198808

main13753-64490i1C,2C#..CR2#,3#198211-198808

13951SUPPORT, VALVE ROCKER, NO.1

main13952-24012i4KJ..KR26198211-198808

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08028i4KJ..KR26198211-198808

main91621-60840i1C,2C#..CR2#,3#198501-198808

main91651-60845i1C,2C..CR2#198211-198501

sub91651-B0845

9010510032

main90105-10032

9010512048

main90105-12048

9010512097

main90105-12097

9010906045

main90109-06045

9162161050

main91621-61050

29 parts on this diagram · 3 diagrams in section
