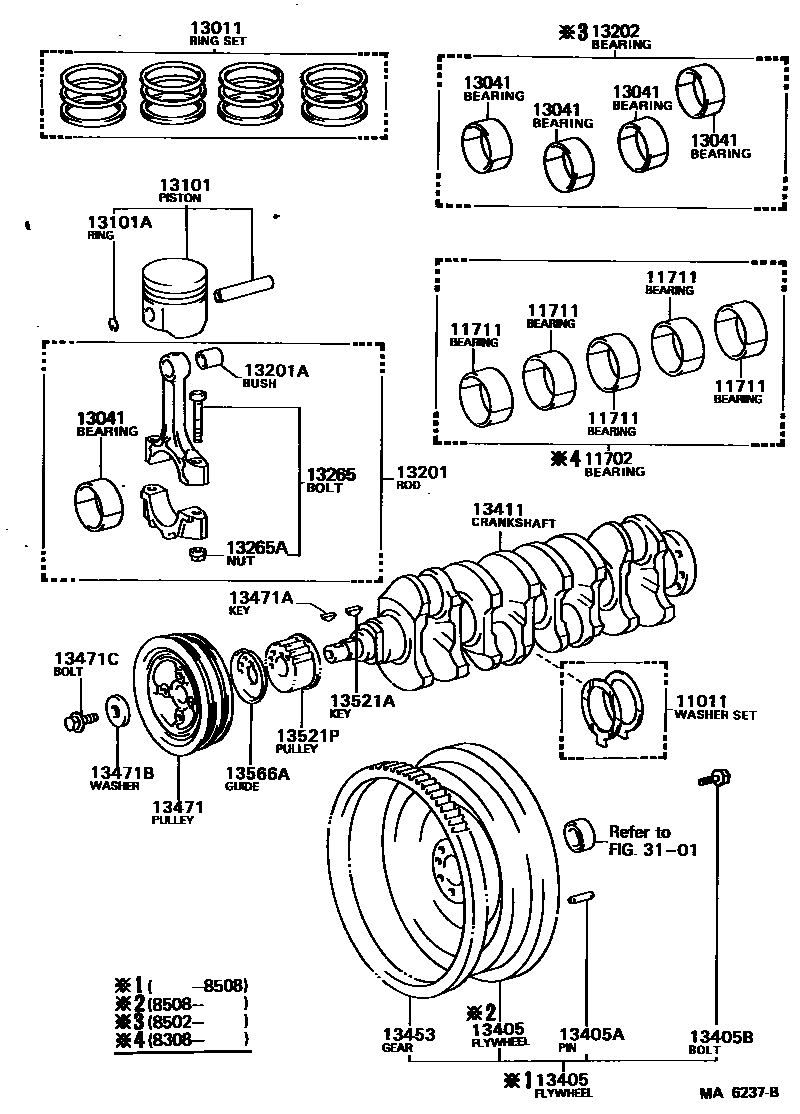

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-22011i4KJ..KR26198211-198808

main11011-25010i1YJ,2YU,3YEU..YR2#,3#198211-198808

main11011-64010i1C,2C#..CR2#,3#198211-198808

main11012-22011i4KJ..KR26198211-198808

main11012-64010i1C,2C#..CR2#,3#198211-198808

main11013-22011i4KJ..KR26198211-198808

main11013-64010i1C,2C#..CR2#,3#198211-198808

11702BEARING SET, CRANKSHAFT

main11704-13010i4KJ..KR26198211-198307

main11704-13011i4KJ..KR26198307-198808

sub11704-13012

main11704-64030i2CT..CR21,28,30,37198508-198808

sub11704-64040

main11704-64050i1C,2C..CR2#,36198508-198808

main11704-71020i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198603-198808

main11705-13010i4KJ..KR26198211-198307

main11705-13011i4KJ..KR26198307-198808

sub11705-13012

11711BEARING, CRANKSHAFT

main11701-13010-03×5i4KJ..KR26198211-198307

MARK"3",MARK 3

main11701-13010-04×5i4KJ..KR26198211-198307

MARK"4",MARK 4

main11701-13010-05×5i4KJ..KR26198211-198307

MARK"5",MARK 5

main11701-13010-06×5i4KJ..KR26198211-198307

MARK"6",MARK 6

main11701-13010-07×5i4KJ..KR26198211-198307

MARK"7",MARK 7

main11701-13011-03×5i4KJ..KR26198307-198808

MARK"3",MARK 3

sub11701-13012

main11701-13011-04×5i4KJ..KR26198307-198808

MARK"4",MARK 4

sub11701-13012

main11701-13011-05×5i4KJ..KR26198307-198808

MARK"5",MARK 5

sub11701-13012

main11701-13011-06×5i4KJ..KR26198307-198808

MARK"6",MARK 6

sub11701-13012

main11701-13011-07×5i4KJ..KR26198307-198808

MARK"7",MARK 7

sub11701-13012

main11701-64010-01×5i1C,2C..CR2#198211-198308

MARK"1",MARK 1

main11701-64010-02×5i1C,2C..CR2#198211-198308

MARK"2",MARK 2

main11701-64010-03×5i1C,2C..CR2#198211-198308

MARK"3",MARK 3

main11701-64030-01×5i1C,2C..CR2#198308-198508

MARK"1",MARK 1

sub11701-64040

main11701-64030-02×5i1C,2C..CR2#198308-198508

MARK"2",MARK 2

sub11701-64040

main11701-64030-03×5i1C,2C..CR2#198308-198508

MARK"3",MARK 3

sub11701-64040

main11701-64050-01×5i1C,2C..CR2#,36198508-198808

MARK"1",MARK 1

main11701-64050-02×5i1C,2C..CR2#,36198508-198808

MARK"2",MARK 2

main11701-64050-03×5i1C,2C..CR2#,36198508-198808

MARK"3",MARK 3

main11701-71020-01×5i1YJ,2YU,3YEU..YR2#,3#198211-198808

MARK"1",MARK 1

main11701-71020-02×5i1YJ,2YU,3YEU..YR2#,3#198211-198808

MARK"2",MARK 2

main11701-71020-03×5i1YJ,2YU,3YEU..YR2#,3#198211-198808

MARK"3",MARK 3

13011RING SET, PISTON

main13011-13030i4KJ..KR26198405-198808

main13011-24012i4KJ..KR26198211-198405

main13011-64020i1C..CR26198211-198508

STD

main13011-64060i2C..CR21198304-198310

STD

main13011-64110i2C..CR21,27198310-198508

STD

main13011-64130i1C..CR26198508-198808

main13011-64150i2CT..CR21,28,30,37198508-198808

main13011-64170i2C..CR21,27,28,36198508-198808

main13011-71020i1YJ,2YU,3YEU..YR2#,3#198211-198702

main13011-71021i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198702-198808

sub13011-71012

main13013-13030i4KJ..KR26198405-198808

main13013-24012i4KJ..KR26198211-198405

O/S 0.50

main13013-64020i1C..CR26198211-198508

O/S 0.50

main13013-64060i2C..CR21198304-198310

O/S 0.50

main13013-64110i2C..CR21,27198310-198508

O/S 0.50

main13013-64130i1C..CR26198508-198808

main13013-64150i2CT..CR21,28,30,37198508-198808

main13013-64170i2C..CR21,27,28,36198508-198808

main13013-71020i1YJ,2YU,3YEU..YR2#,3#198211-198702

main13013-71021i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198702-198808

main13014-13030i4KJ..KR26198405-198808

main13014-24012i4KJ..KR26198211-198405

O/S 0.75

main13014-71020i1YJ,2YU,3YEU..YR2#,3#198211-198702

main13014-71021i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198702-198808

main13015-13030i4KJ..KR26198405-198808

main13015-24012i4KJ..KR26198211-198405

O/S 1.00

main13015-71020i1YJ,2YU,3YEU..YR2#,3#198211-198702

main13015-71021i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198702-198808

13041BEARING, CONNECTING ROD

main13041-13040-03×4i4KJ..KR26198307-198808

MARK"3",MARK 3

main13041-13040-04×4i4KJ..KR26198307-198808

MARK"4",MARK 4

main13041-13040-05×4i4KJ..KR26198307-198808

MARK"5",MARK 5

main13041-13040-06×4i4KJ..KR26198307-198808

MARK"6",MARK 6

main13041-13040-07×4i4KJ..KR26198307-198808

MARK"7",MARK 7

main13041-64010-01×4i1C,2C..CR2#198211-198308

MARK"1",MARK 1

main13041-64010-02×4i1C,2C..CR2#198211-198308

MARK"2",MARK 2

main13041-64010-03×4i1C,2C..CR2#198211-198308

MARK"3",MARK 3

main13041-64030-01×4i1C,2C..CR2#198308-198502

MARK"1",MARK 1

main13041-64030-02×4i1C,2C..CR2#198308-198502

MARK"2",MARK 2

main13041-64030-03×4i1C,2C..CR2#198308-198502

MARK"3",MARK 3

main13041-64031-01×4i2CT..CR21,28,30,37198508-198808

MARK"1",MARK 1

sub13041-64041

main13041-64031-02×4i2CT..CR21,28,30,37198508-198808

MARK"2",MARK 2

sub13041-64041

main13041-64031-03×4i2CT..CR21,28,30,37198508-198808

MARK"3",MARK 3

sub13041-64041

main13041-64050-01×4i1C,2C..CR2#,36198508-198808

MARK"1",MARK 1

main13041-64050-02×4i1C,2C..CR2#,36198508-198808

MARK"2",MARK 2

main13041-64050-03×4i1C,2C..CR2#,36198508-198808

MARK"3",MARK 3

main13041-71021-06×4i1YJ,2YU,3YEU..YR2#,3#198211-198808

MARK"6",MARK 6

sub13041-71011

main13041-71021-07×4i1YJ,2YU,3YEU..YR2#,3#198211-198808

MARK"7",MARK 7

sub13041-71011

main13041-71021-08×4i1YJ,2YU,3YEU..YR2#,3#198211-198808

MARK"8",MARK 8

sub13041-71011

13101PISTON SUB-ASSY, W/PIN

main13101-24011×4i4KJ..KR26198211-198801

main13101-24011-01×4i4KJ..KR26198801-198808

main13101-24011-02×4i4KJ..KR26198801-198808

main13101-24011-03×4i4KJ..KR26198801-198808

main13101-64010×4i1C..CR26198211-198508

STD

main13101-64030×4i2C..CR21,27198304-198508

STD

main13101-64050×4i1C..CR26198508-198609

main13101-64070×4i2CT..CR21,28,30,37198508-198801

main13101-64070-01×4i2CT..CR21,28,30,37198801-198808

main13101-64070-02×4i2CT..CR21,28,30,37198801-198808

main13101-64070-03×4i2CT..CR21,28,30,37198801-198808

main13101-64080×4i2C..CR21,27,28,36198508-198701

main13101-64090×4i2C..CR21,27,28,36198701-198801

main13101-64090-01×4i2C..CR27,36198801-198808

main13101-64090-02×4i2C..CR27,36198801-198808

main13101-64090-03×4i2C..CR27,36198801-198808

main13101-64100×4i1C..CR26198609-198801

main13101-64100-01×4i1C..CR26198801-198808

main13101-64100-02×4i1C..CR26198801-198808

main13101-64100-03×4i1C..CR26198801-198808

main13101-71010×4i1YJ..YR26198211-198802

main13101-71010-01×4i1YJ..YR26198802-198808

main13101-71010-02×4i1YJ..YR26198802-198808

main13101-71010-03×4i1YJ..YR26198802-198808

main13101-72010×4i2YU..YR20,28198211-198802

main13101-72010-01×4i2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);2YU..YR20,28..(HRF,SRF)..(B,E)198802-198808

main13101-72010-02×4i2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);2YU..YR20,28..(HRF,SRF)..(B,E)198802-198808

main13101-72010-03×4i2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);2YU..YR20,28..(HRF,SRF)..(B,E)198802-198808

main13101-73010×4i3YEU..YR21,3#198305-198802

main13101-73010-01×4i3YEU..YR21,3#198802-198808

main13101-73010-02×4i3YEU..YR21,3#198802-198808

main13101-73010-03×4i3YEU..YR21,3#198802-198808

main13103-24010×4i4KJ..KR26198211-198808

main13103-64010×4i1C..CR26198211-198508

O/S 0.50

main13103-64030×4i2C..CR21,27198304-198508

O/S 0.50

main13103-64050×4i1C..CR26198508-198703

main13103-64070×4i2CT..CR21,28,30,37198508-198808

main13103-64080×4i2C..CR21,27,28,36198508-198701

main13103-64090×4i2C..CR21,27,28,36198701-198808

main13103-64100×4i1C..CR26198703-198808

main13103-71010×4i1YJ..YR26198211-198808

main13103-72010×4i2YU..YR20,28198211-198808

main13103-73010×4i3YEU..YR21,3#198305-198808

main13104-24010×4i4KJ..KR26198211-198808

main13104-71010×4i1YJ..YR26198211-198808

main13104-72010×4i2YU..YR20,28198211-198808

main13104-73010×4i3YEU..YR21,3#198305-198808

main13105-24010×4i4KJ..KR26198211-198808

main13105-71010×4i1YJ..YR26198211-198808

main13105-72010×4i2YU..YR20,28198211-198808

main13105-73010×4i3YEU..YR21,3#198305-198808

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-21088×8i4KJ..KR26198211-198808

main90521-29003×8i1C,2C#..CR2#,3#198211-198808

13201ROD SUB-ASSY, CONNECTING

main13201-13010×4i4KJ..KR26198211-198808

main13201-69025×4i1C,2C..CR2#198211-198308

sub13201-69026

main13201-69035×4i1C,2C..CR2#198308-198508

main13201-69036×4i1C,2C..CR2#198508-198508

sub13201-69037

main13201-69065×4i1C,2C..CR2#,36198508-198808

sub13201-69135

main13201-69075×4i2CT..CR21,28,30,37198508-198808

sub13201-69076

main13201-71011×4i1YJ,2YU..YR20,26,28198211-198808

main13201-79045×4i3YEU..YR21,3#198305-198808

sub13201-79046

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73070i4KJ..KR26198211-198808

main90999-73091×4i1C,2C..CR2#198211-198502

main90999-73101×4i1C,2C..CR2#198502-198508

main90999-73102×4i1C,2C#..CR2#,3#198508-198808

sub90999-73138

13202BEARING SET, CONNECTING ROD

main13202-13010i4KJ..KR26198211-198307

main13203-13010i4KJ..KR26198211-198307

main13204-13010i4KJ..KR26198211-198307

main13204-13040i4KJ..KR26198307-198808

main13204-64031i1C,2C..CR2#198211-198508

sub13204-64041

main13204-64050i1C,2C..CR2#,36198508-198808

main13204-71021i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198603-198808

sub13204-71011

main13205-13010i4KJ..KR26198211-198307

main13205-13040i4KJ..KR26198307-198808

main13206-13010i4KJ..KR26198211-198307

main13206-13040i4KJ..KR26198307-198808

13265BOLT, CONNECTING ROD

main13265-29015×8i4KJ..KR26198211-198507

main13265-29025×8i1YJ,2YU,3YEU..YR2#,3#198211-198808

main13265-49015×8i1C,2C#..CR2#,3#198211-198808

main13265-70010×8i4KJ..KR26198507-198808

sub13265-70020

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09001×8i1C,2C#..CR2#,3#198211-198808

main90170-09195×8i1YJ,2YU..YR2#198211-198303

main90179-10042×8i1C,2C#..CR2#,3#198211-198808

13405FLYWHEEL SUB-ASSY

main13405-24051i4KJ..KR26198508-198808

main13405-29125i4KJ..KR26198211-198508

main13405-64012i1C,2C..CR21,26..5F198508-198508

main13405-64030i2CT..CR21,28,30,37..5F198508-198808

sub13405-64031

main13405-64040i1C,2C..CR21,26,28..5F198508-198808

main13405-69047i1C,2C..CR21,26..5F198211-198508

sub13405-64011

main13405-79045i2YU,3YEU..YR20,21,28,3#..MTM198211-198808

sub13405-72011

main13405-79055i1YJ..YR26..MTM198211-198808

sub13405-71011

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i1C,2C#..CR21,26,28,3#..5F198211-198808

main90250-08120×3i4KJ..KR26198211-198808

13405BBOLT, FLYWHEEL SETTING

main90105-10042×6i1YJ,2YU,3YEU..YR2#,3#..MTM198211-198808

main90105-10045×8i1C,2C#..CR21,26,28,3#..5F198211-198808

main90913-01005×6i4KJ..KR26198211-198808

13411CRANKSHAFT

main13411-13010i4KJ..KR26198211-198306

main13411-13900i4KJ..KR26198306-198808

sub13411-13903

main13411-64010i1C,2C..CR2#198211-198412

main13411-64011i1C,2C#..CR2#,3#198412-198702

main13411-64900i1C,2C#..CR2#,3#198702-198808

sub13411-64901

sub13521-64011

main13411-71010i1YJ..YR26198211-198302

main13411-71900i1YJ..YR26198302-198808

main13411-72010i2YU..YR20,28198211-198808

sub13411-72900

main13411-73010i3YEU..YR21,3#198305-198808

sub13411-73900

13453GEAR, FLYWHEEL RING

main13453-10010i4KJ..KR26198211-198808

main13453-20010i1YJ,2YU,3YEU..YR2#,3#..MTM198211-198808

N=115

main13453-64011i1C,2C#..CR21,26,28,3#..5F198211-198808

13471PULLEY, CRANKSHAFT

main13407-13010i4KJ..KR26198211-198508

sub13470-13010

main13408-13010i4KJ..KR26198508-198808

main13408-64021i1C..CR26198211-198305

main13408-64022i2C..CR21198304-198305

main13408-64040i2C..CR21,27..4FC198305-198508

main13408-64050i1C,2C#..CR2#,3#198609-198808

main13408-71010i1YJ,2YU..YR20,26198211-198508

main13408-73010i2YU..YR20..HRF..(E,Q);2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198508-198808

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010i1YJ,2YU,3YEU..YR2#,3#198211-198609

main95161-10519i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198609-198808

main95161-20516i1C,2C#..CR2#,3#198211-198808

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90201-14007i1C,2C#..CR2#,3#198211-198705

sub90201-14030

main90209-13003i4KJ..KR26198211-198808

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12051i4KJ..KR26198211-198808

main90105-14013i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub90105-14069

main91511-61435i1C,2C#..CR2#,3#198211-198808

sub90105-14089

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-13020i4KJ..KR26198211-198808

main13521-33010i1YJ,2YU,3YEU..YR2#,3#198211-198808

N=18

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010i1YJ,2YU,3YEU..YR2#,3#198211-198609

main95161-10519i2YU..YR20..HRF..E;2YU..YR20..HRF..5F..G;2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198609-198808

main95161-20622i1C,2C#..CR2#,3#198211-198808

sub95161-30622

13521PPULLEY, CRANKSHAFT TIMING

main13521-64010i1C,2C#..CR2#,3#198211-198808

sub13521-64011

13566AGUIDE, TIMING BELT

main13566-64010i1C,2C#..CR2#,3#198211-198808

sub13566-64011

3101

26 parts on this diagram · 3 diagrams in section
