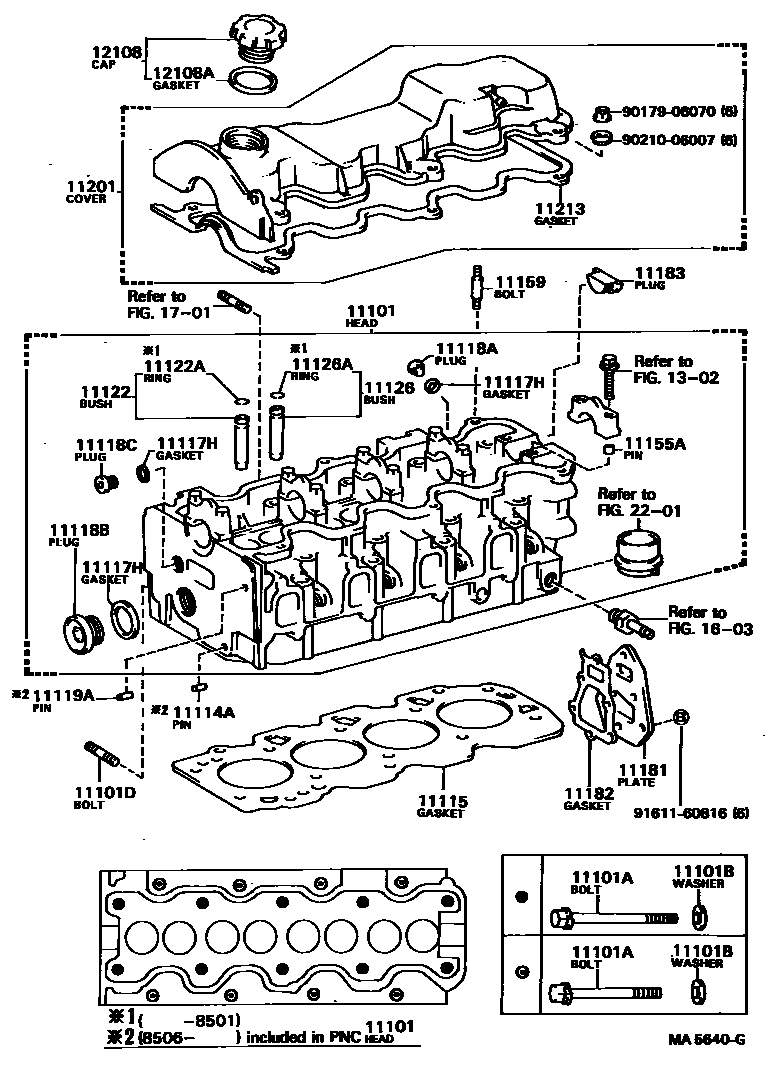

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-13011i4KJ..KR26198211-198808

main11101-64010i1C..CR26198211-198301

sub11101-64011

sub16261-64011

main11101-64011i1C..CR26198301-198504

sub11101-64320

sub90201-22010

main11101-64012i1C..CR26198504-198508

sub11101-64032

sub90201-22010

main11101-64020i2C..CR21,27198304-198504

sub11101-64270

sub11115-64122

main11101-64021i2C..CR21,27198504-198508

sub11101-64022

sub11115-64122

main11101-64060i1C..CR26198508-198808

sub11101-64061

main11101-64070i2CT..CR21,30198508-198708

sub11101-64071

sub11115-64122

main11101-64080i2C..CR21,27,28,36198508-198701

sub11101-64110

main11101-64090i2CT..CR21,28,30,37198708-198808

sub11101-64091

sub11115-64122

main11101-64100i2C..CR21,27,28,36198701-198801

sub11101-64110

main11101-64120i2C..CR27,36198801-198808

sub11101-64121

main11101-71010i1YJ,2YU..YR20,26,28198211-198808

main11101-71020i3YEU..YR21198305-198508

sub11101-71010

sub90340-18003

main11101-73020i3YEU..YR21,3#198508-198808

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-11011i1C,2C..CR2#198211-198508

*11-1.25PX123-30

main90105-11012i1C,2C..CR2#198211-198508

*11-1.25PX145-30

main90105-11018i1C,2C#..CR2#,3#198508-198808

*11-1.25PX123-51.5

sub90910-02097

main90105-11019i1C,2C#..CR2#,3#198508-198808

*11-1.25PX145-51.5

sub90910-02099

main90105-12056i1YJ,2YU,3YEU..YR2#,3#198211-198808

main90910-02069i4KJ..KR26198211-198808

main90910-02074i4KJ..KR26198805-198808

HEAD FR RIGHT

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10005i4KJ..KR26198211-198808

main90201-12222i1C,2C#..CR2#,3#198211-198808

main90201-13021i1YJ,2YU,3YEU..YR2#,3#198211-198808

11101DBOLT, STUD(FOR WATER OUTLET)

main92122-60820i1C,2C#..CR2#,3#198211-198808

11114APIN, STRAIGHT

main90250-06068i1C,2C#..CR2#,3#198211-198808

11115GASKET, CYLINDER HEAD

main11115-13031i4KJ..KR26198211-198808

sub11115-13050

main11115-64010i1C..CR26198211-198307

main11115-64030i2C..CR21198304-198307

sub11115-64090

main11115-64050i1C..CR26198307-198504

main11115-64060i2C..CR21,27198307-198508

sub11115-64080

main11115-64070i1C..CR26198504-198808

sub11115-64110

main11115-64080i2C#..CR21,27,28,3#198508-198610

sub11115-64100

main11115-64100i2C#..CR21,27,28,3#198610-198808

sub11115-64121

main11115-71010i1YJ,2YU,3YEU..YR2#198211-198508

main11115-71011i1YJ,2YU,3YEU..YR2#,3#198508-198808

sub11115-73040

11117HGASKET(FOR WATER HOLE)

main90430-10204i1C,2C#..CR2#,3#198211-198808

PNC 11118A

main90430-12005i1C,2C..CR2#198211-198501

PNC 11118C

main90430-12010i1C,2C#..CR2#,3#198501-198808

PNC 11118C

main90430-20004i1YJ,2YU,3YEU..YR2#,3#198211-198808

main90430-33133i1C,2C#..CR2#,3#198211-198808

PNC 11118B

11118APLUG, STRAIGHT, NO.1

main90341-10005i1C,2C#..CR2#,3#198211-198808

11118BPLUG, STRAIGHT, NO.2

main90341-32070i1C,2C#..CR2#,3#198211-198808

11118CPLUG, STRAIGHT, NO.3

main90341-12002i1C,2C#..CR2#,3#198211-198705

sub90341-12013

main90341-12013i1C,2C#..CR2#,3#198705-198808

11119APIN, STRAIGHT, NO.1

main90250-06068i1C,2C#..CR2#,3#198211-198808

main90250-08120i4KJ..KR26198211-198808

11122BUSH, INTAKE VALVE GUIDE

main11122-24020i4KJ..KR26198211-198808

main11122-64010i1C,2C#..CR2#,3#198501-198808

main11122-71020i1YJ,2YU,3YEU..YR2#,3#198211-198808

main11123-24020i4KJ..KR26198211-198808

main11123-64010i1C,2C#..CR2#,3#198501-198808

main11123-71020i1YJ,2YU,3YEU..YR2#,3#198211-198808

main11126-24020i1C,2C..CR2#198211-198501

STD

main11127-24020i1C,2C..CR2#198211-198501

O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049i1C,2C..CR2#198211-198808

11126BUSH, EXHAUST VALVE GUIDE

main11122-24020i4KJ..KR26198211-198808

main11123-24020i4KJ..KR26198211-198808

main11126-24020i1C,2C..CR2#198211-198501

STD

main11126-64010i1C,2C#..CR2#,3#198504-198808

sub11126-64030

main11126-64020i1C,2C..CR2#198501-198504

STD

main11126-71020i1YJ,2YU,3YEU..YR2#,3#198211-198808

main11127-24020i1C,2C..CR2#198211-198501

O/S 0.05

main11127-64010i1C,2C#..CR2#,3#198504-198808

sub11127-64030

main11127-64020i1C,2C..CR2#198501-198504

O/S 0.05

main11127-71020i1YJ,2YU,3YEU..YR2#,3#198211-198808

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049i1YJ,2YU,3YEU..YR2#198211-198808

11155APIN, RING W/HEAD

main90253-11021i1C,2C#..CR2#,3#198211-198808

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-06023i1C,2C#..CR2#,3#198211-198808

11181PLATE, CYLINDER HEAD, REAR

main11181-13020i4KJ..KR26198705-198808

main11181-24020i4KJ..KR26198211-198705

sub11181-13020

main11181-64010i1C,2C#..CR2#,3#198211-198808

main11181-71010i1YJ,2YU..YR20,26,28198211-198808

main11181-73010i3YEU..YR21,3#198305-198808

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-24010i4KJ..KR26198211-198808

sub11182-13020

main11182-64010i1C,2C#..CR2#,3#198211-198808

sub11182-64020

main11182-71010i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub11182-71011

11183PLUG, SEMICIRCULAR

main11183-64010i1C,2C#..CR2#,3#198211-198808

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-13021i4KJ..KR26198211-198712

main11201-19026i4KJ..KR26198712-198808

sub11201-13021

main11201-64060i1C,2C#..CR2#,3#198508-198808

main11201-69075i1C,2C..CR2#198211-198508

main11201-79035i1YJ,2YU,3YEU..YR2#,3#198211-198808

sub11201-71011

sub11213-71020

sub90210-09001

11213GASKET, CYLINDER HEAD COVER

main11213-22010i4KJ..KR26198211-198808

main11213-64020i1C,2C#..CR2#,3#198211-198808

sub11213-64040

main11213-71020i1YJ,2YU,3YEU..YR2#,3#198211-198808

12108CAP SUB-ASSY, OIL FILLER

main12180-13010i1C..CR26198211-198303

main12180-13030i4KJ..KR26198508-198808

sub12180-55010

main12180-61010i1YJ,2YU,3YEU..YR2#,3#198705-198808

sub12180-70020

main12180-70010i4KJ..KR26198301-198601

sub12108-78010

main12180-71010i1YJ,2YU,3YEU..YR2#198211-198506

main12180-71011i2YU..YR20..HRF..5F..G;2YU..YR20..HRF..(E,Q,X);2YU..YR20..MRF..(08S,09S);1YJ,2YU,3YEU..YR21,26,28,3#198506-198705

sub12180-61010

12108AGASKET(FOR OIL FILLER CAP)

main12195-71010i1YJ,2YU,3YEU..YR2#198211-198506

sub12195-71020

main12195-71020i1YJ,2YU,3YEU..YR2#,3#198506-198808

main90430-37140i4KJ..KR26198211-198808

1302

1603

1701

2201

9017906070

main90179-06070

9021006007

main90210-06007

9161160816

main91611-60816

31 parts on this diagram · 4 diagrams in section
