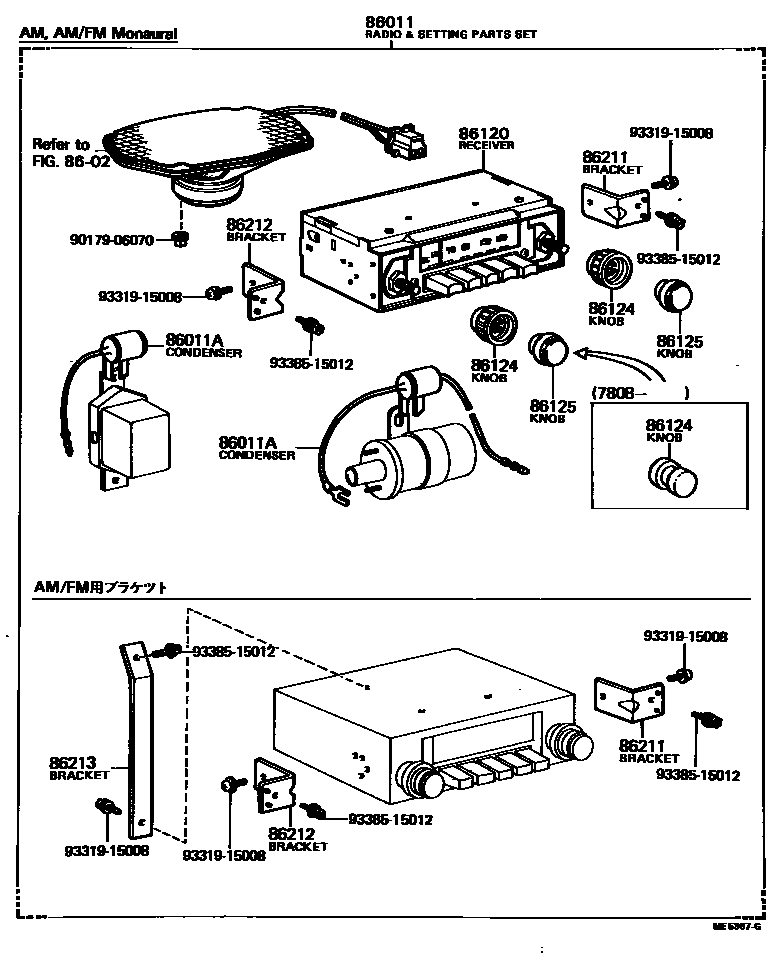

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

86011RADIO & SETTING PARTS SET

main86011-29185iKR11,RR10,20,TR10197902-197910

AM

sub86011-29215

main86011-29215iKR12,RR11,21,TR1#..DLX,HDX,STD197910-198210

AM

main86011-29255iTR15..GEX,SUE198101-198210

AM/FM MULTIPLEX

main86011-87001iKR1#,TR1#..DLX,STD197610-197808

AM

main86011-87002iKR1#,TR1#197610-197808

AM/FM

main86011-87005iTR15..DLX,STD197808-197910

AM

main86011-87006iKR11,RR10,20,TR10197808-197902

AM

main86011-87007iKR11,TR1#197808-197910

AM/FM

86011ACONDENSER, RADIO SETTING

main90980-04010iKR1#,RR1#,2#,TR1#197610-198210

REGULATOR

main90980-04020iKR1#,TR10,11197610-198210

IGNITION COIL

main90980-04028iTR15197808-198210

IGNITER

main90980-04032iRR1#,2#197902-198210

IGNITION COIL

main90980-04040iRR11,21198101-198210

REGULATOR

8602

86120RECEIVER ASSY, RADIO

main86120-14031iTR11..CTM197706-197706

SPECIAL WAGON,AM/FM MULTIPLEX

sub86120-10070

main86120-14051iKR1#,TR1#..DLX,STD197610-197808

AM

sub86120-12200

main86120-14061iKR10,TR1#197610-197704

AM/FM

sub86120-14062

main86120-14062iKR1#,TR1#197704-197903

AM/FM

main86120-14140iKR11,TR1#197903-197910

AM/FM

main86120-14150iTR15..GEX,SUE198101-198210

AM/FM MULTIPLEX

main86120-87001iKR1#,RR1#,2#,TR1#..DLX,HDX,STD197808-198210

AM

sub86120-14052

main86120-87002iTR15..CNP,CTM,SUE197910-198210

AM/FM

86124KNOB, RADIO RECEIVER CONTROL

main86124-12010iTR11..CTM197706-197706

RH,SPECIAL WAGON

main86124-12010iKR1#,TR1#197610-197808

main86124-14040iTR11..CTM197706-197706

LH,SPECIAL WAGON

main86124-16030iTR15..GEX,SUE198101-198210

RH,AM/FM MULTIPLEX

main86124-16040iTR15..GEX,SUE198101-198210

LH,AM/FM MULTIPLEX

main86124-87001iKR1#,RR1#,2#,TR1#197808-198210

RH

main86125-87002iKR1#,RR1#,2#,TR1#197808-198210

LH

86125KNOB, RADIO RECEIVER SWITCH

main86125-12011iKR1#,TR1#197610-197808

main86125-16030iTR15..GEX,SUE198101-198210

AM/FM MULTIPLEX

main86125-87001iKR1#,RR1#,2#,TR1#197808-198210

86211BRACKET, RADIO, NO.1

main86211-87001iKR1#,RR10,20,TR1#197610-197910

main86211-87002iKR12,RR11,21,TR1#197910-198210

86212BRACKET, RADIO, NO.2

main86212-87001iKR1#,RR1#,2#,TR1#197610-198210

86213BRACKET, RADIO, NO.3

main86215-87001iKR1#,TR1#197610-197903

AM/FM

main86215-87002iKR11,TR1#197903-197910

AM/FM

main86215-87002iTR15..CNP,CTM,GEX,SUE197910-198210

AM/FM,AM/FM MULTIPLEX

9017906070

main90179-06070

9331915008

main93319-15008

9338515012

main93385-15012

12 parts on this diagram · 6 diagrams in section
