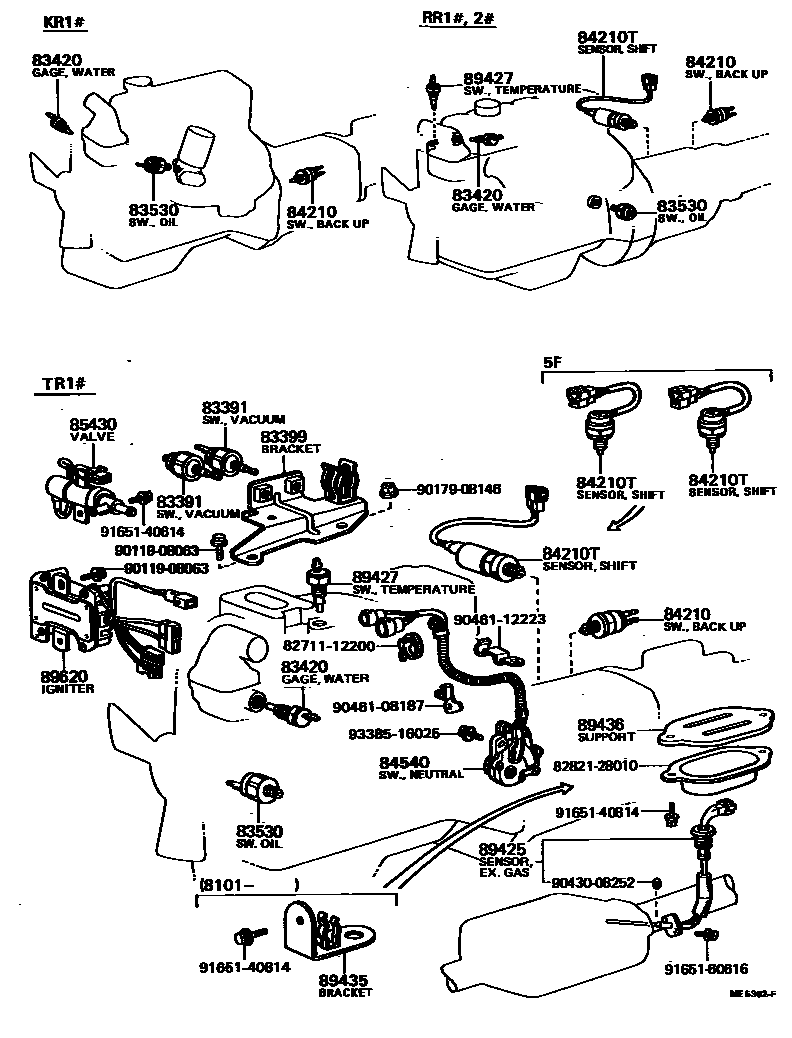

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

83391SWITCH, VACUUM

main83391-14010iTR15197808-198210

MARK=400B,FUEL CUT

main83391-14020iTR15197808-197910

MARK=300M,EGR

main83391-27010iTR15..MTM197910-198210

MARK=300M,EGR

83399BRACKET, VACUUM SWITCH

main83399-28010iTR15197808-197902

main83399-28011iTR15197902-198210

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-12010iKR1#,RR10,20,TR1#197610-197910

main83420-16010iKR12,RR11,21,TR1#197910-198210

DENSO

main83420-20020iKR12,RR11,21,TR1#197910-198210

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKR1#,RR10,20,TR1#197610-197910

sub83530-14030

main83530-14010iRR11,21198112-198210

sub83530-14030

main83530-30030iRR11,21197911-198112

84210SWITCH ASSY, BACK-UP LAMP

main84210-10060iTR1#..5F198101-198210

main84210-26010iKR1#,RR1#,2#,TR1#..4H197610-198210

84210TSENSOR ASSY, SHIFT POINT

main84220-20040×2iTR15..5F198101-198210

main84220-25020iTR15..4H197808-198210

main84220-35040iRR10,20197808-197911

sub84220-35020

84540SWITCH ASSY, NEUTRAL START

main84540-14110iTR15..3FC198105-198210

main84540-28010iTR15..3FC198101-198105

85430VALVE, OUTER VENT CONTROL

main85430-12020iTR15197808-198210

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-29105iTR15197808-198101

main89425-29205iTR15198101-198210

89427SWITCH, TEMPERATURE DETECT

main89427-14020iTR15197910-198210

MARK=50

main89427-14030iTR15197808-197910

MARK=50/95

main89428-12030iRR10,20197808-197911

MARK=60B

main89428-12050iTR11197610-197808

MARK=105/40

main89428-28010iRR10,20197808-197911

MARK=60/100,W/COOLER

main89428-28020iRR11,21197911-198210

MARK=60

89435BRACKET, CONNECTOR COVER

main89435-26030iTR15198101-198210

89436SUPPORT, CONNECTOR COVER

main89436-28010iTR15197808-198101

89620IGNITER ASSY

main89620-28020iTR15197808-197910

sub89620-28H90

main89620-28021iTR15197910-198210

sub89620-28H90

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8282128010RETAINER, HEADLAMP HARNESS

main82821-28010

9011908063

main90119-08063

9017908146

main90179-08146

9043008252

main90430-08252

9046108187

main90461-08187

9046112223

main90461-12223

9165140614

main91651-40614

9165140814

main91651-40814

9165160616

main91651-60616

9338516025

main93385-16025

24 parts on this diagram · 7 diagrams in section
