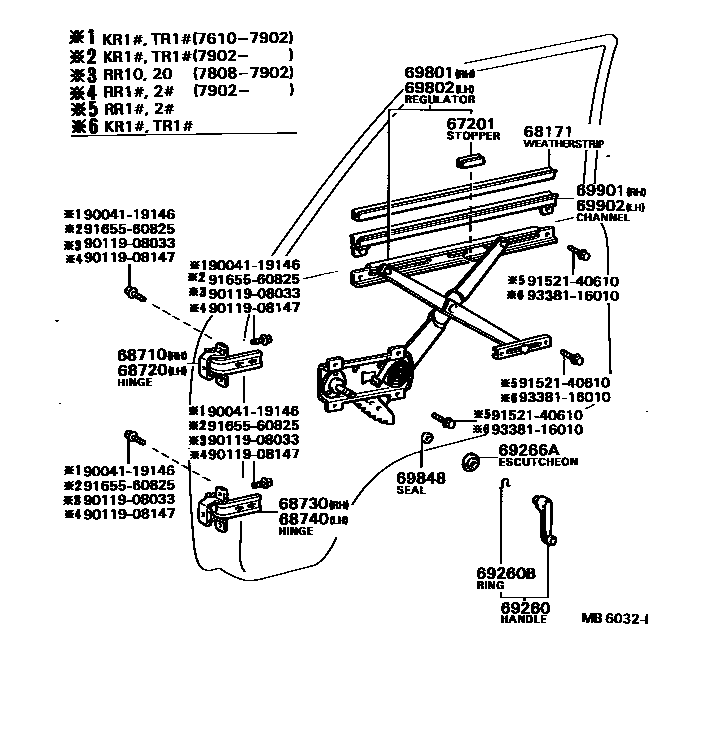

FRONT DOOR WINDOW REGULATOR & HINGE

67201STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)

main69982-95700×2iKR1#,RR1#,2#,TR1#197610-198109

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69981-95700×2iKR10,TR1#197610-197709

sub69981-95600

main69981-95701×2iKR1#,RR1#,2#,TR1#197709-198210

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-87001iKR1#,TR1#197610-198210

main68710-95700iRR1#,2#197808-198210

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-87001iKR1#,TR1#197610-198210

main68710-95700iRR1#,2#197808-198210

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-87001iKR1#,TR1#197610-198210

main68730-95700iRR10,20197808-197811

main68730-95D00iRR1#,2#197811-198210

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-87001iKR1#,TR1#197610-198210

main68740-95700iRR10,20197808-197811

main68740-95D00iRR1#,2#197811-198210

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040×2iKR1#,TR1#197610-197808

sub69260-16010

main69260-10040-01×2iKR11,RR10,20,TR10197808-197910

BLACK,BLACK

sub69260-16010

main69260-10040-05×2iTR15197808-198210

BEIGE,BEIGE

sub69260-16010

main69260-10040-26×2iKR12,TR11197910-198210

BROWN,BROWN

sub69260-16010

main69260-95A00iRR11,21197911-198210

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iKR1#,RR1#,2#,TR1#197610-198210

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010×2iKR1#,RR1#,2#,TR1#197610-198210

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95700iKR1#,RR1#,2#,TR1#197610-198210

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95700iKR1#,RR1#,2#,TR1#197610-198210

69848SEAL, WINDOW REGULATOR HOLE

main69848-95700×2iKR1#,RR1#,2#,TR1#197610-198210

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87001iKR1#,RR10,20,TR1#197812-198210

main69901-95700iKR10,TR1#197610-197709

main69901-95701iKR1#,RR10,20,TR1#197709-197812

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87001iKR1#,RR10,20,TR1#197812-198210

main69901-95700iKR10,TR1#197610-197709

main69901-95701iKR1#,RR10,20,TR1#197709-197812

9004119146

main90041-19146

9011908033

main90119-08033

9011908147

main90119-08147

9152140610

main91521-40610

9165560825

main91655-60825

9338116010

main93381-16010

20 parts on this diagram · 1 diagram in section
