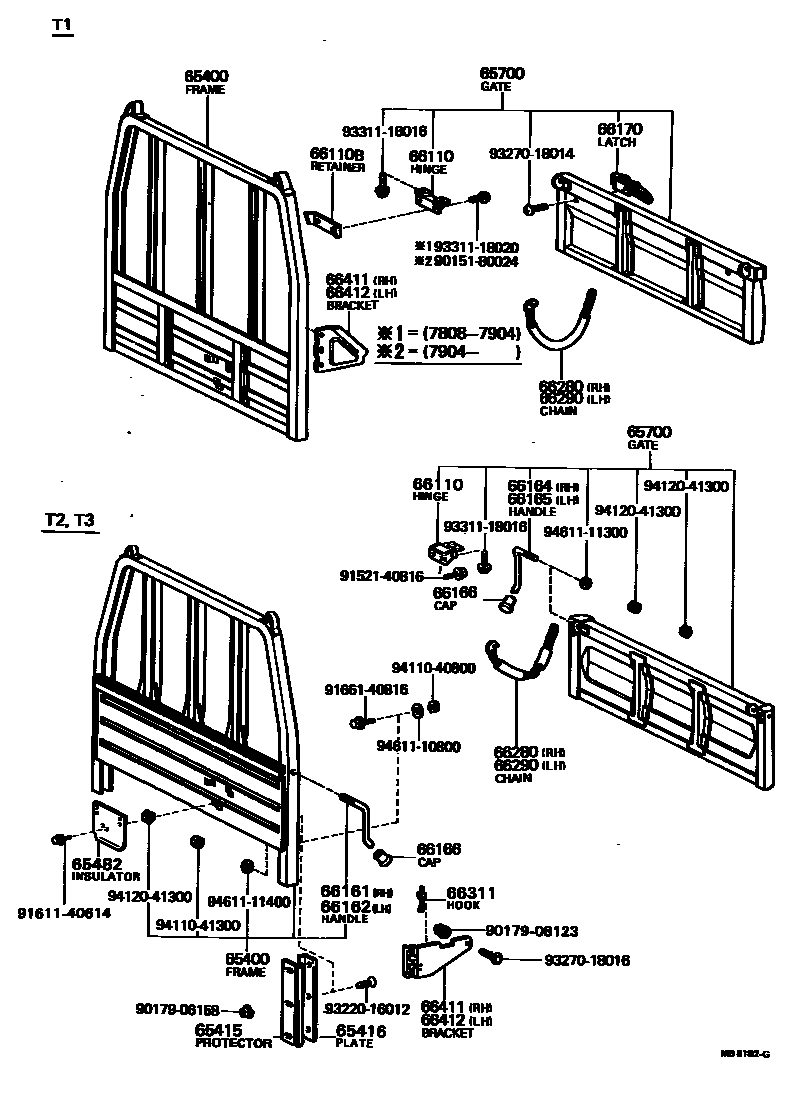

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65400FRAME ASSY, REAR BODY GUARD

main65400-95D00iRR1#,2#..T1197808-198210

main65400-95D01iRR10,20..T2,T3197808-197911

main65400-95D02iRR11,21..T2..TS197911-198210

main65400-95D03iRR21..TB198101-198210

65415PROTECTOR, GUARD FLAME

main65415-95D00×2iRR1#,2#..T2,T3197905-198210

65416PLATE, GUARD FRAME PROTECTOR

main65416-95D00×2iRR1#,2#..T2,T3197905-198210

65482INSULATOR, REAR BODY HEADER

main65482-95D01iRR11,21..(T2,T3)..TS197911-198210

65700GATE ASSY, REAR BODY TAIL

main65700-95D00iRR1#,2#..T1197808-198210

main65700-95D02iRR1#,2#..T2,T3197808-198006

main65700-95D03iRR21..TB198101-198210

main65700-95D04iRR11,21..(T2,T3)..TS198006-198105

66110HINGE ASSY, TAIL GATE

main66110-95018×4iRR11,21..(T2,T3)..TS198105-198210

main66110-95020×4iRR21..TB198105-198210

main66110-95601×3iRR1#,2#..T1197808-198105

sub66110-95A00

main66110-95D00×4iRR11,21..(T2,T3)..TS198006-198105

main66110-95D01×4iRR21..TB198101-198105

66110BRETAINER, TAIL GATE HINGE, LOWER

main66115-95012×3iRR1#,2#..T1197808-198210

main66115-95D00×4iRR21..TB198101-198210

66161HANDLE, SIDE GATE LATCH, RH

main66161-95D00iRR10,20..T2,T3197808-197911

main66161-95D01iRR11,21..T2197911-198210

66162HANDLE, SIDE GATE LATCH, LH

main66162-95D00iRR10,20..T2,T3197808-197911

main66162-95D01iRR11,21..T2197911-198210

66164HANDLE, TAIL GATE LATCH, RH

main66163-95011iRR1#,2#..(T2,T3)..TS197808-198210

main66163-95D00iRR21..TB198101-198210

66165HANDLE, TAIL GATE LATCH, LH

main66164-95011iRR1#,2#..(T2,T3)..TS197808-198210

main66164-95D00iRR21..TB198101-198210

66166CAP, GATE LATCH HANDLE

main66165-87402×4iRR11,21..T2,T3198001-198210

main66165-95010×4iRR1#,2#..T2,T3197808-198001

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95111×2iRR1#,2#..T1197808-198210

66280CHAIN ASSY, TAIL GATE, RH

main66280-95011iRR1#,2#..TS197808-198210

main66280-95015iRR21..TB198101-198210

sub66280-95403

66290CHAIN ASSY, TAIL GATE, LH

main66280-95011iRR1#,2#..TS197808-198210

main66280-95015iRR21..TB198101-198210

sub66280-95403

66311HOOK, ROPE

main66311-95D00×2iRR11,21..(T2,T3)..TS198101-198210

sub66311-95707

66411BRACKET, GUARD FRAME, RH

main66411-95018iRR1#,2#..T1197808-198210

main66411-95D00iRR1#,2#..(T2,T3)..TS197808-198210

66412BRACKET, GUARD FRAME, LH

main66412-95017iRR1#,2#..T1197808-198210

main66412-95D00iRR1#,2#..(T2,T3)..TS197808-198210

9015180024

main90151-80024

9017906158

main90179-06158

9017908123

main90179-08123

9152140816

main91521-40816

9161140614

main91611-40614

9166140816

main91661-40816

9322016012

main93220-16012

9327018014

main93270-18014

9327018016

main93270-18016

9331118016

main93311-18016

9331118020

main93311-18020

9411040800

main94110-40800

9411041300

main94110-41300

9412041300

main94120-41300

9461110800

main94611-10800

9461111300

main94611-11300

9461111400

main94611-11400

35 parts on this diagram · 2 diagrams in section
