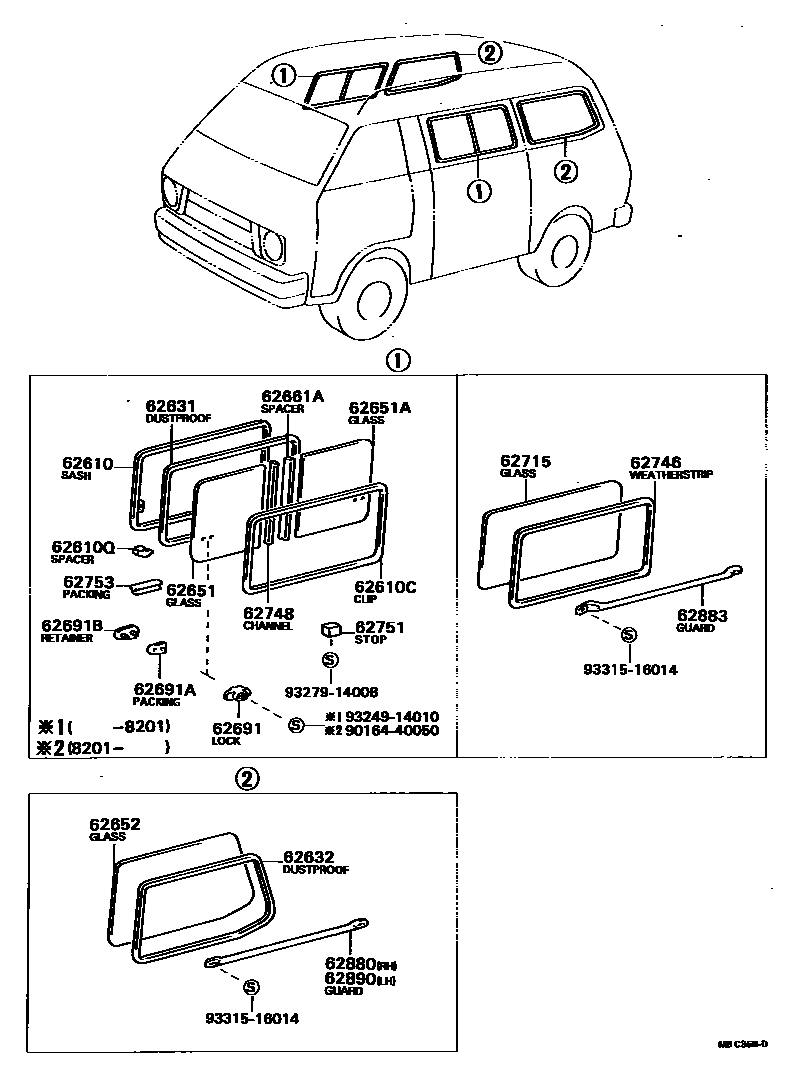

SIDE WINDOW

0001 1 0002 1

62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)

main62701-87003iTR15198006-198210

RH

main62701-87003iTR15..SNR..CEX198006-198006

RH,SILVER SPACE

main62701-95700iKR1#,TR10,11..V4D..(05S,06S)197610-198210

RH

sub62701-95702

main62701-95701iTR11,15..08S197610-198006

RH

main62702-87003iTR15..SNR..CEX198006-198006

LH,SILVER SPACE

main62702-87003iTR15198006-198210

LH

main62702-95700iKR1#,TR10,11..05S,06S197610-198210

LH

sub62702-95702

main62702-95701iTR11,15..08S197610-198006

LH

main62703-95700iKR1#,TR10,11..V5D..(05S,06S)197610-198210

RH

62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)

main62793-87001iTR11,15..WG;KR1#,TR10,11..V4D..(05S,06S)197610-198210

LH

main62795-87001iTR11;KR1#,TR10..V4D..(05S,06S)197610-198210

RH

62610QSPACER, SIDE WINDOW FRAME

main62779-87001iKR1#,TR1#..05S,06S,07S,08S197807-198210

62631DUST PROOF, SIDE WINDOW, NO.1

main62755-87002iTR15198006-198210

LH

main62757-87001iTR15198006-198210

RH

main62761-87001iTR15..SNR..CEX198006-198006

RH

sub62757-87001

main62761-87001iTR15198006-198006

RH,SILVER SPACE

sub62757-87001

main62761-95702iKR1#,TR10..V4D..(05S,06S)197610-198210

RH

main62761-95703iTR11,15..08S197610-198006

RH

main62762-87001iTR15198006-198006

LH

sub62755-87002

main62762-87001iTR15..SNR..CEX198006-198006

LH,SILVER SPACE

sub62755-87002

main62762-95702iKR1#,TR10,11..05S,06S197610-198210

LH

main62762-95703iTR11,15..08S197610-198006

LH

main62764-95700iKR10,11,TR10,11..V5D..(05S,06S)197610-198210

RH

62632DUST PROOF, SIDE WINDOW, NO.2

main62743-87001iKR1#,TR10,11..V197610-198210

main62743-87002iTR11,15197610-197910

sub62743-87003

main62743-87003iTR15197910-198210

62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)

main62728-87002iKR12,TR11..V5D..HDX198201-198210

RH,*TT,T=4.0

sub62728-95703

main62728-95700iKR1#..V5D197610-197901

RH,*TEM,T=4.0

sub62728-95703

main62728-95701iTR10..V5D197610-197901

RH,*TT,T=4.0

sub62728-95703

main62728-95702iKR11..V5D197901-198210

RH,*TEM,T=4.0

sub62728-95703

main62728-95703iTR11..V5D..HDX197901-198201

RH,*TT,T=4.0

main62731-87004iTR15..STD198201-198210

RH,*TEM,T=4.0

sub62731-87005

main62731-87005iKR12,TR11..V4D..HDX198201-198210

RH,*TT,T=4.0

main62731-87006iTR15..3FC,5F198201-198210

RH,BRONZE,*TT,T=4.0

main62731-95702iKR11..V4D..06S197610-197901

RH,*TEM,T=4.0

sub62731-95704

main62731-95703iTR10..V4D197610-197901

RH,*TT,T=4.0

sub62731-95705

main62731-95704iTR15..STD197901-198201

RH,*TEM,T=4.0

sub62731-95705

main62731-95705iTR15..CTM,DLX,GEX,SUE197901-198201

RH,*TT,T=4.0

main62733-87002iKR12,TR11..(05S,06S)..DLX198201-198210

LH,*TEM,T=4.0

sub62733-87003

main62733-87003iTR15..CNP,CTM,DLX,GEX,SUE198201-198210

LH,*TT,T=4.0

main62733-87004iTR15..3FC,5F198201-198210

LH,BRONZE,*TT,T=4.0

main62733-95702iKR1#..06S;TR11,15..STD197610-197901

LH,*TEM,T=4.0

sub62733-95704

main62733-95703iTR1#..CTM,DLX,SUE197610-197910

LH,*TT,T=4.0

sub62733-95705

main62733-95704iKR1#..06S197901-198201

LH,*TEM,T=4.0

sub62733-95705

main62733-95705iTR15..CTM,DLX,GEX,SUE197901-198201

LH,*TT,T=4.0

62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)

main62711-87002iTR11,15..STD197610-197901

RH,*TEM,T=4.0

sub62711-87003

main62711-87003iTR15..STD197901-198201

RH,*TEM,T=4.0

sub62711-87004

main62711-87004iTR15..CTM,DLX,GEX,SUE197901-198201

RH,*TT,T=4.0

main62711-87006iTR15..STD198201-198210

RH,*TEM,T=4.0

sub62711-87004

main62711-87007iTR15..CNP,CTM,DLX,GEX,SUE198201-198210

RH,*TT,T=4.0

main62711-87008iTR15..3FC,5F198201-198210

RH,BRONZE,*TT,T=4.0

main62729-95700iKR12,TR11..V5D..(05S,06S)..DLX197610-198210

RH,*TEM,T=4.0

sub62729-95701

main62729-95701iTR10..V5D197610-198210

RH,*TT,T=4.0

main62732-95702iKR12,TR11..V4D..(05S,06S)..DLX197610-198210

RH,*TEM,T=4.0

sub62732-95704

main62732-95703iTR11,15..CTM,DLX,SUE197610-197901

RH,*TT,T=4.0

sub62711-87004

main62732-95704iKR12,TR11..V4D..HDX197610-198210

RH,*TT,T=4.0

main62734-95702iTR11..DLX197610-198210

LH,*TEM,T=4.0

sub62734-95704

main62734-95703iTR11,15..CTM,DLX,SUE197610-197901

LH,*TT,T=4.0

sub68114-87004

main62734-95704iTR11..HDX197610-198210

LH,*TT,T=4.0

main68114-87002iTR11,15..STD197610-197901

LH,*TEM,T=4.0

sub68114-87003

main68114-87003iTR15..STD197901-198201

LH,*TEM,T=4.0

sub68114-87004

main68114-87004iTR15..CTM,DLX,GEX,SUE197901-198201

LH,*TT,T=4.0

main68114-87006iTR15..STD198201-198210

LH,*TEM,T=4.0

sub68114-87004

main68114-87007iTR15..CNP,CTM,DLX,GEX,SUE198201-198210

LH,*TT,T=4.0

main68114-87008iTR15..3FC,5F198201-198210

LH,BRONZE,*TT,T=4.0

62652GLASS, SIDE WINDOW, NO.2, FRONT (FOR SLIDE TYPE)

main62713-87001iKR1#,TR11..V197610-198210

RH,*TEM,T=4.0

sub62713-87002

main62713-87002iTR10197610-197910

RH,*TT,T=4.0

main62713-87003iTR11,15..WG..(CNP,CTM,DLX,GEX,SUE)197610-198210

RH,*TT,T=4.0

main62713-87004iTR11,15..STD197610-198210

RH,*TEM,T=4.0

sub62713-87003

main62713-87005iTR15..3FC,5F198201-198210

RH,BRONZE,*TT,T=4.0

main62714-87001iKR1#,TR11..V197610-198210

LH,*TEM,T=4.0

sub62714-87002

main62714-87002iTR10197610-197910

LH,*TT,T=4.0

main62714-87003iTR11,15..WG..(CNP,CTM,DLX,GEX,SUE)197610-198210

LH,*TT,T=4.0

main62714-87004iTR11,15..STD197610-198210

LH,*TEM,T=4.0

sub62714-87003

main62714-87005iTR15..3FC,5F198201-198210

LH,BRONZE,*TT,T=4.0

62661ASPACER, SIDE WINDOW, REAR, NO.1

main62746-95702iKR1#,TR1#..05S,06S,08S197610-198210

62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)

main62791-95700iKR1#,TR10..05S,06S197610-197901

main62791-95702iKR1#,TR10,11..05S,06S197901-198201

LH

main62791-95702iKR1#,TR10,11..05S,06S197901-198201

RH RR,LH FR

main62799-95700iTR15197901-198201

RH FR,LH RR

main62799-95700iKR1#,TR10,11..05S,06S197901-198201

RH

main62910-95702iTR15198201-198210

62691APACKING, SIDE WINDOW LOCK, NO.1

main62792-95700iKR1#,TR10..05S,06S197610-197901

sub62792-95701

main62792-95701iKR1#,TR10,11..05S,06S197901-198201

main62792-95A00iKR12,TR11..05S,06S198201-198210

62691BRETAINER, SIDE WINDOW LOCK, NO.1

main62781-87001iKR1#,TR10,11..05S,06S197901-198201

main62793-95700iKR1#,TR10..05S,06S197610-197901

main62793-95A01iKR12,TR11..05S,06S198201-198210

sub62793-95704

62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)

main62711-87001iKR1#,TR11..V4D..(02S,03S)197610-198210

RH,*TEM,T=4.0

main68113-87001iKR12,TR11..V5D..(02S,03S)198110-198210

main68114-87001iKR1#,TR11..02S,03S197610-198210

LH,*TEM,T=4.0

62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1

main62741-87001iKR1#,TR11..V4D..(02S,03S)197610-198210

RH

main62753-87001iTR15198009-198210

L=416

main62754-87001iTR15198009-198210

L=420

main68163-87001iKR12,TR11..V5D..(02S,03S)198108-198210

RH

main68163-87001iKR1#,TR11..02S,03S197610-198210

LH

62748CHANNEL, SIDE WINDOW GLASS

main62747-95701iKR1#,TR1#..05S,06S,08S197610-198210

main67436-87001iTR15198009-198210

62751STOP, SIDE WINDOW FIX GLASS

main62751-95661iKR1#,TR10,11..05S,06S197610-198210

62753PACKING, SIDE WINDOW

main62719-87001iKR12,TR1#..05S,06S,07S,08S198006-198210

main62755-87001iKR12,TR1#..05S,06S,08S198006-198006

SILVER SPACE

sub62719-87001

62880GUARD ASSY, REAR QUARTER WINDOW, RH

main62884-87001iKR1#,TR10,11..V197610-198210

62883GUARD ASSY, SIDE WINDOW

main62885-87001iKR1#,TR11..V4D..(02S,03S)197610-198210

62890GUARD ASSY, REAR QUARTER WINDOW, LH

main62884-87001iKR1#,TR10,11..V197610-198210

9016440050

main90164-40050

9324914010

main93249-14010

9327914008

main93279-14008

9331516014

main93315-16014

24 parts on this diagram · 2 diagrams in section
