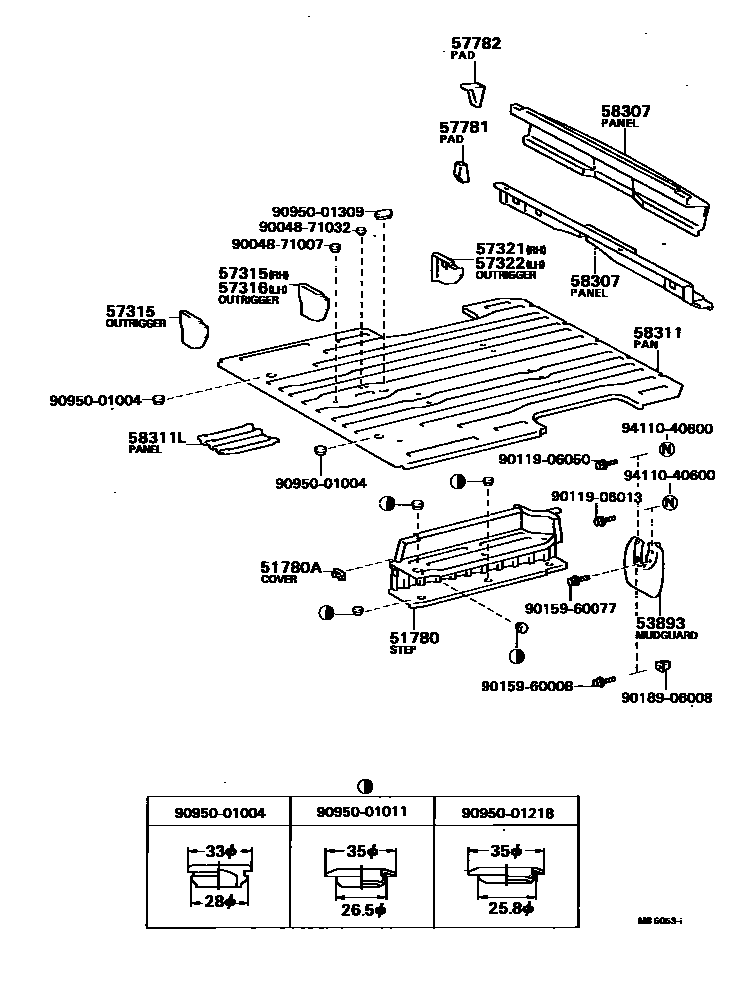

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

51780STEP ASSY, FRONT, LH

main58109-87001iKR1#,TR1#197610-198210

51780ACOVER, STEP LAMP HOLE

main57337-87001iTR15..CNP,CTM,DLX,STD197910-198210

53893MUDGUARD, REAR

main76607-87001iTR15197910-198101

RH

main76607-87005iTR15..GEX,SUE198101-198210

RH

main76608-87001iTR15197910-198101

LH

main76608-87005iTR15..GEX,SUE198101-198210

LH

57315OUTRIGGER, NO.3 RH

main57317-95701iTR11,15..WG;KR1#,TR10,11..V4D197610-198210

57316OUTRIGGER, NO.3 LH

main57318-95700iKR1#,TR1#197610-198210

57321OUTRIGGER, NO.4 RH

main57321-95700iKR1#,TR1#197610-198210

57322OUTRIGGER, NO.4 LH

main57322-95700iKR1#,TR1#197610-198210

57781PAD, DUST PROOF REAR FLOOR, NO.1

main57781-87001×2iKR10,TR1#197703-197801

COLD SPEC

57782PAD, DUST PROOF REAR FLOOR, NO.2

main57782-87001×2iKR10,TR1#197703-197801

COLD SPEC

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-87001iKR1#,TR1#197610-198101

OUTER

main58307-87002iKR12,TR1#198101-198210

OUTER

main58308-87001iKR1#,TR1#197610-198101

INNER

sub58372-87H00

main58372-87002iKR12,TR1#198101-198210

INNER

58311PAN, REAR FLOOR

main58311-87001iKR1#,TR10..V4D197610-198101

main58311-87002iKR1#,TR10,11..V5D197610-198101

main58311-87005iTR11,15..08S197610-198101

main58311-87008iKR12,TR11..V4D198101-198210

main58311-87009iKR12,TR11..V5D198101-198210

main58311-87010iTR15198101-198210

58311LPANEL, HEAT PROOF

main58387-87001iTR11197910-198210

9004871007

main90048-71007

9004871032

main90048-71032

9011906013

main90119-06013

9011906050

main90119-06050

9015960008

main90159-60008

9015960077

main90159-60077

9018906008

main90189-06008

9095001004

main90950-01004

9095001011

main90950-01011

9095001218

main90950-01218

9095001309

main90950-01309

9411040600

main94110-40600

24 parts on this diagram · 5 diagrams in section
