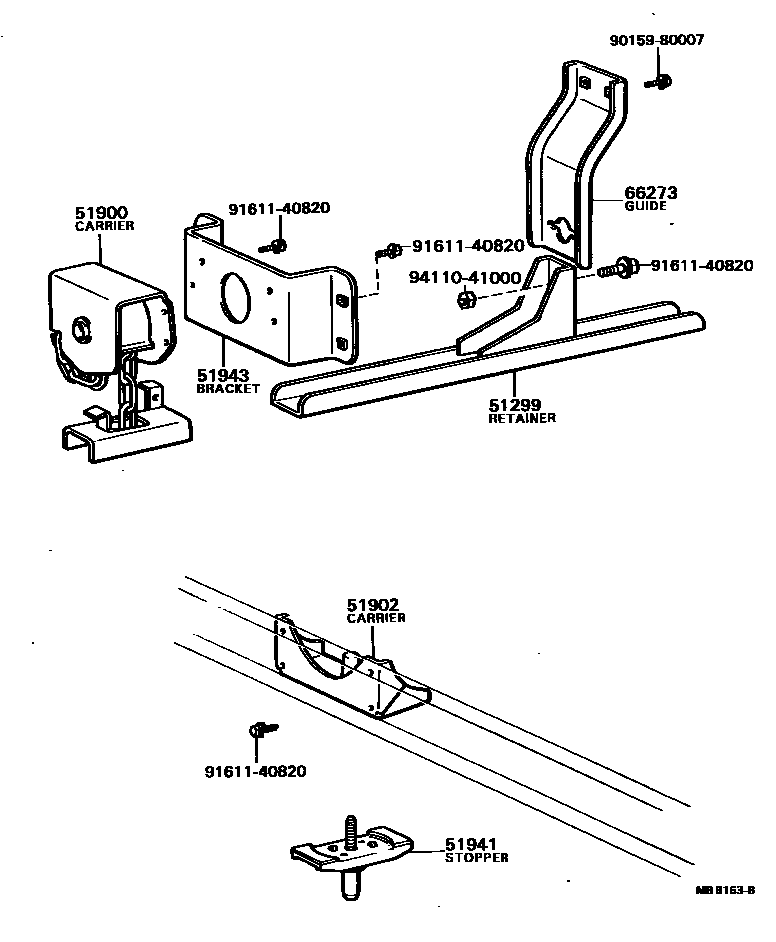

SPARE WHEEL CARRIER

0001 1 0002 1

51299RETAINER, SPARE WHEEL

main51299-28020iRR11,21..T2197911-198210

51900CARRIER ASSY, SPARE WHEEL

main51900-26011iRR1#,2#197808-198210

main51900-28010iKR1#,TR1#197610-198210

sub51900-27180

51902CARRIER SUB-ASSY, SPARE WHEEL

main51903-28010iRR11,21..T2197911-198210

sub51903-27011

51941STOPPER, SPARE WHEEL CARRIER

main51904-27010iRR11,21..T2197911-198210

51943BRACKET, SPARE WHEEL CARRIER, NO.1

main51943-28010iRR11,21..T2197911-198210

66273GUIDE, SPARE TIRE CARRIER

main66273-95010iRR10..T2197808-197911

9015980007

main90159-80007

9161140820

main91611-40820

9411041000

main94110-41000

9 parts on this diagram · 2 diagrams in section
