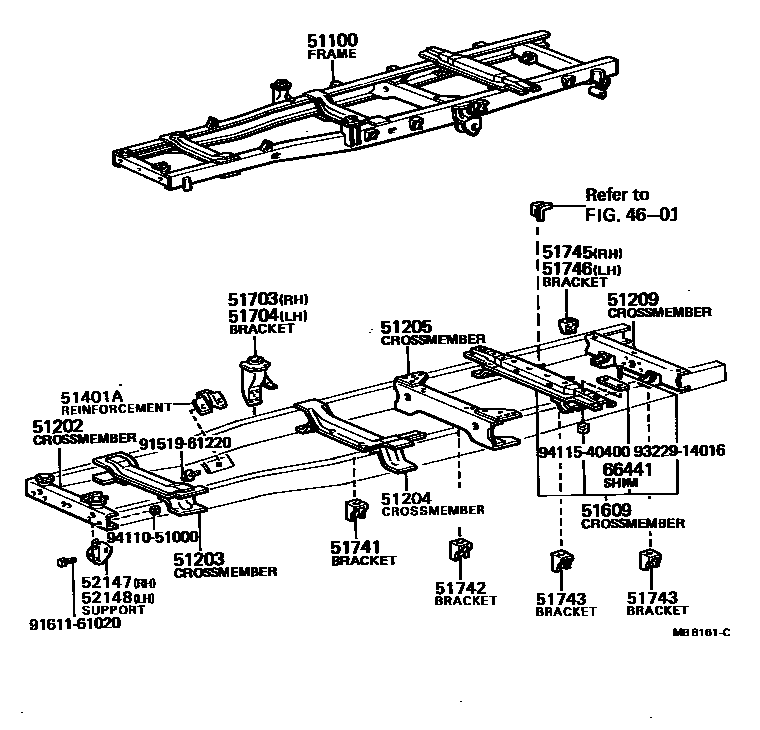

FRAME

0001 1 0003 1

4601

51100FRAME ASSY

main51001-28010iRR10..T1..CBU197808-197911

main51001-28020iRR10..(T2,T3)..CBU197808-197911

main51001-28030iRR20..T1..CBU197808-197911

main51001-28040iRR20..IV197808-197911

main51001-28050iRR11..T1..CBU197911-198210

main51001-28060iRR11..T1..IV197911-198210

main51001-28070iRR11..T2..CBU197911-198210

main51001-28080iRR21..T1..CBU197911-198210

main51001-28090iRR21..T3197911-198210

main51001-28100iRR21..T2..TS197911-198210

main51001-28110iRR11..T2..IV197911-198210

main51001-28120iRR21..T2..IV197911-198210

main51001-28130iRR21..TB198101-198210

51202CROSSMEMBER SUB-ASSY, FRAME, NO.1

main51201-28010iRR1#,2#197808-198210

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-26011iRR11,21198101-198210

main51202-26021iRR1#,2#197808-198101

sub51202-26011

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51204-28010iRR1#,2#197808-198210

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51205-28011iRR10,20197808-197911

main51205-28030iRR11,21197911-198210

51209CROSSMEMBER SUB-ASSY, FRAME, NO.8

main51209-28010iRR10,20197808-198210

main51291-28010iRR11,21..T2197911-198210

51401AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, RH

main51423-28011iRR10,20197808-197911

51609CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT

main51206-26030iRR11,21..T2197911-198210

main51206-28011iRR10,20197808-198210

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51705-28010iRR1#,2#197808-198210

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51706-28010iRR1#,2#197808-198210

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-26010iRR1#,2#197808-198210

51742BRACKET, BODY MOUNTING, NO.2

main51071-28010iRR11..T2197911-198210

main51741-26010iRR21;RR11..T1,T3197808-198210

51743BRACKET, BODY MOUNTING, NO.3

main51072-28010iRR11,21..T2197911-198210

main51741-26010iRR10,20197808-198210

51745BRACKET, BODY MOUNTING, NO.5

main51745-25030iRR20..T2,T3197808-197911

main51745-28010iRR10197808-197911

main51745-28020iRR11,21197911-198210

51746BRACKET, BODY MOUNTING, NO.6

main51746-25030iRR20..T1..IV197808-197911

main51746-28010iRR10197808-197911

main51746-28020iRR11,21197911-198210

52147SUPPORT, FRONT BUMPER, RH

main52147-28010iRR1#,2#197808-198210

52148SUPPORT, FRONT BUMPER, LH

main52148-28010iRR1#,2#197808-198210

66441SHIM, MOUNTING, NO.1

main66441-26010iRR1#,2#..T1197808-198210

9151961220

main91519-61220

9161161020

main91611-61020

9322914016

main93229-14016

9411051000

main94110-51000

9411540400

main94115-40400

24 parts on this diagram · 2 diagrams in section
