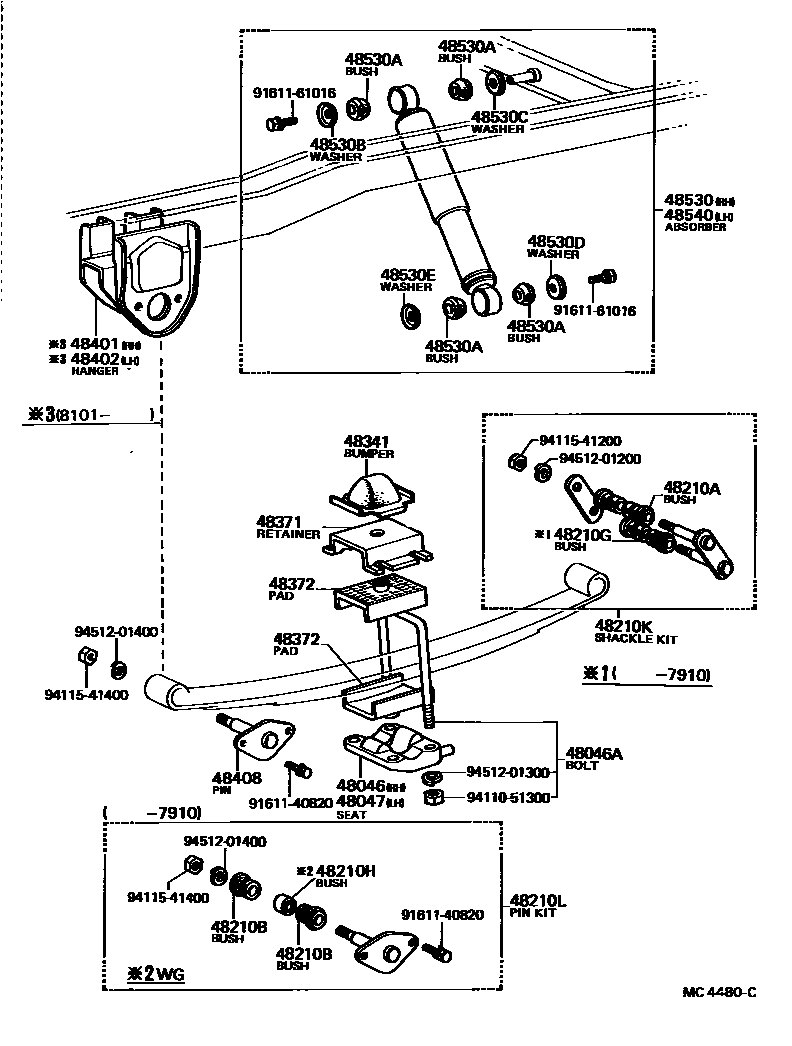

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-27030iRR11,21..T2197911-198210

main48046-28010iKR1#,TR1#197610-198210

main48046-28020iRR11,21..T1,T3197911-198210

48046ABOLT, U(FOR REAR SPRING)

main90118-13148×4iKR1#197610-198210

sub90117-13001

sub94110-51300

sub94512-01300

main90118-13149×4iTR10197610-197910

sub90117-13003

sub94110-51300

sub94512-01300

main90118-13150×4iTR11,15197610-197910

sub90117-13002

sub94110-51300

sub94512-01300

main90118-13153×4iRR1#,2#197808-198210

sub90999-99006

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-28010iKR1#,TR1#197610-198210

main48047-27030iRR11,21..T2197911-198210

main48047-28010iRR10,20197808-197911

48210SPRING ASSY, REAR RH

main48210-28010iKR1#197610-197910

main48210-28011iKR12197910-198210

main48210-28020iTR10197610-197910

main48210-28021iTR11..4H197910-198210

main48210-28030iTR11,15197610-197910

main48210-28031iTR15197910-198101

main48210-28032iTR15198101-198210

main48210-28040iRR1#,2#..T1,T3197808-198210

main48210-28050iRR10,20..T2197808-197911

main48210-28060iRR11,21..T2197911-198101

main48210-28080iRR21..TB;RR11,21..T2..IV198101-198210

main48210-28090iTR11..5F198101-198210

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-15001×4iKR1#,TR1#197610-198210

main90385-18046×4iRR1#,2#197808-198210

48210BBUSH(FOR REAR SPRING PIN)

main90385-18002×4iTR11,15197610-197910

main90385-18003×4iKR1#,TR10197610-197910

main90385-18046×4iRR1#,2#197808-198210

48210GBUSH(FOR REAR SPRING SHACKLE LOWER)

main90385-15001×4iKR1#,TR1#197610-197910

main90385-18046×4iRR1#,2#197808-198210

48210HBUSH(FOR REAR SPRING HANGER PIN)

main90389-18001×2iTR11,15197610-197910

48210KSHACKLE KIT, REAR SPRING

main04483-26010×2iRR11,21..T1,T3197911-198210

sub04483-35040

main04483-26030×2iRR11,21..T2197911-198210

main04483-28010×2iKR1#,TR1#197610-197910

main04483-28011×2iKR12,TR1#197910-198210

48210LPIN KIT, REAR SPRING

main04484-27010×2iRR1#,2#197808-198210

sub04482-35030

main04484-28010×2iKR1#,TR10197610-197910

main04484-28020×2iTR11,15197610-197910

48341BUMPER, REAR SPRING

main48341-28010×2iKR1#,TR1#197610-198210

main48341-28020×2iRR10,20197808-197911

main48341-28030×2iRR11,21..T2197911-198210

48371RETAINER, REAR SPRING PAD

main48371-28010×2iKR1#197610-198210

main48371-28020×2iTR11197910-198210

main48371-28030×2iTR11,15197610-197910

48372PAD, REAR SPRING

main48372-28010×4iKR1#,TR1#197610-198210

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48414-26011iRR10,20197808-197911

main48414-28010iRR11,21..T2197911-198210

main57707-87002iKR12,TR1#198101-198210

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48414-26011iRR10,20197808-197911

main48414-28010iRR11,21..T2197911-198210

main57707-87002iKR12,TR1#198101-198210

48408PIN SUB-ASSY, SPRING BRACKET

main48409-28010×2iKR12,TR1#197910-198210

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29325iKR1#,TR10197610-197910

main48531-29335iTR11,15197610-197910

main48531-29495iRR10,20197808-197911

main48531-29675iRR11,21..T2197911-198210

sub48531-29676

main48531-29875iTR15198101-198210

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16007×8iKR1#,RR1#,2#,TR1#197610-198210

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03007×2iKR1#,TR1#197610-198210

main90948-03012×2iRR1#,2#197808-198210

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004×2iKR1#,RR1#,2#,TR1#197610-198210

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007×2iKR1#,TR1#197610-198210

main90948-03012×2iRR1#,2#197808-198210

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004×2iKR1#,RR1#,2#,TR1#197610-198210

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29325iKR1#,TR10197610-197910

main48531-29335iTR11,15197610-197910

main48531-29495iRR11,21..T1,T3197911-198210

main48531-29675iRR11,21..T2197911-198210

sub48531-29676

main48531-29875iTR15198101-198210

9161140820

main91611-40820

9161161016

main91611-61016

9411051300

main94110-51300

9411541200

main94115-41200

9411541400

main94115-41400

9451201200

main94512-01200

9451201300

main94512-01300

9451201400

main94512-01400

31 parts on this diagram · 6 diagrams in section
