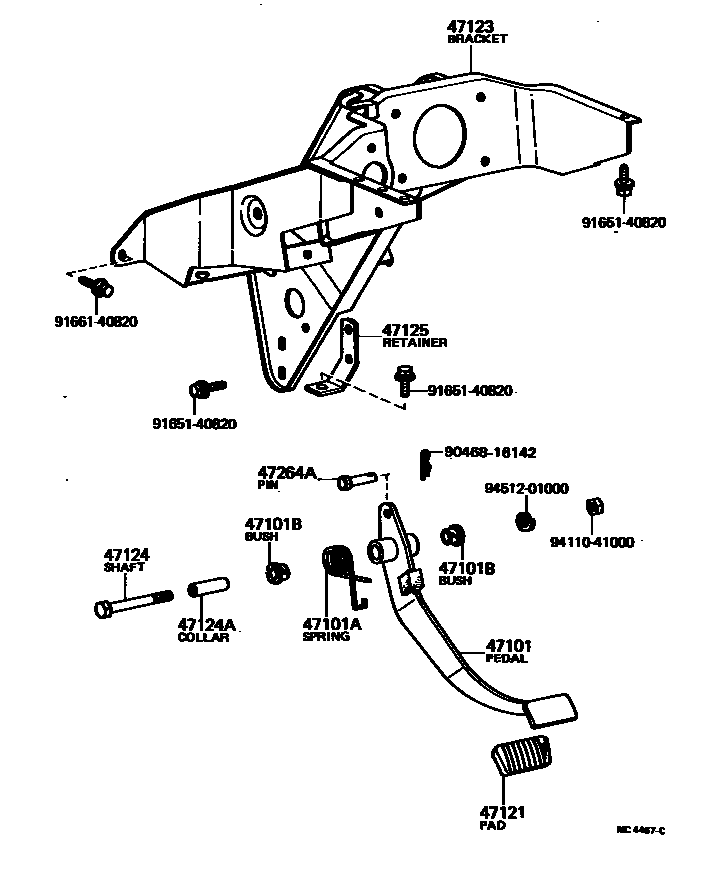

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-28010iKR1#,RR1#,2#,TR1#197610-198210

main47101-28020iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35386iKR1#,RR1#,2#,TR1#197610-198210

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iKR1#,RR1#,2#,TR1#197610-198210

47121PAD, BRAKE PEDAL

main31321-20020iKR1#,RR1#,2#,TR1#197610-198210

47123BRACKET, BRAKE PEDAL

main47105-87001iKR1#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

main47105-87002iTR15..GEX198101-198210

main47105-95D00iRR1#,2#197808-198210

47124SHAFT, BRAKE PEDAL

main91111-51070iKR1#,RR1#,2#,TR1#197610-198210

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iKR1#,RR1#,2#,TR1#197610-198210

47125RETAINER, BRAKE PEDAL BRACKET

main47125-87001iKR1#,RR1#,2#,TR1#197610-198210

47264APIN(FOR PUSH ROD)

main90240-08070iKR1#,RR1#,2#,TR1#197610-198210

9046816142

main90468-16142

9165140820

main91651-40820

9166140820

main91661-40820

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
