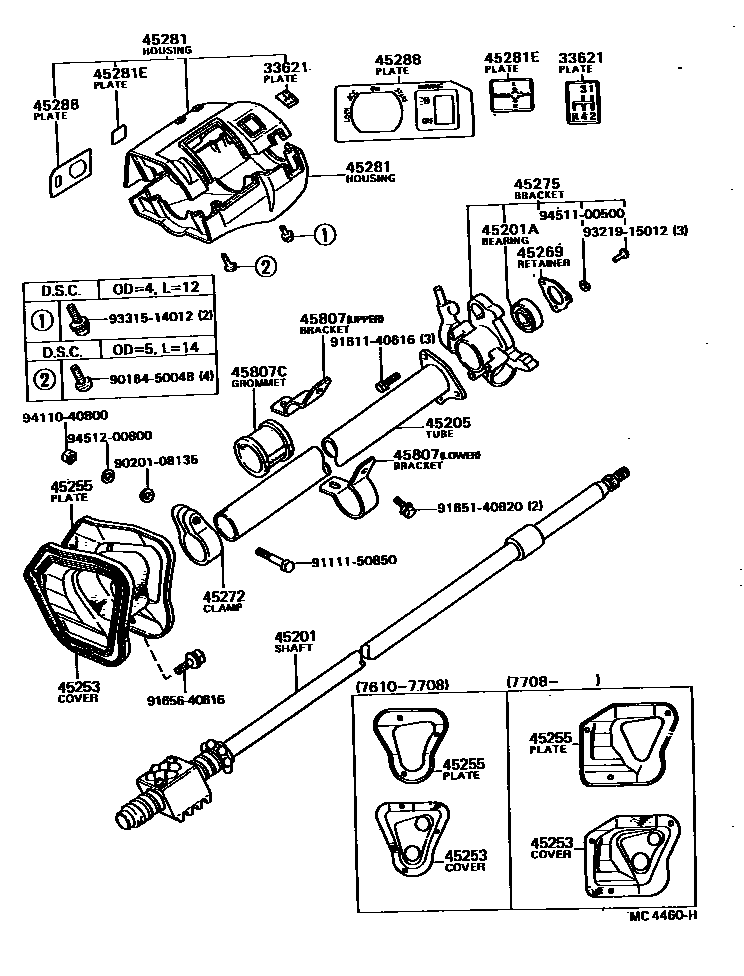

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33621PLATE, CONTROL LEVER CAUTION

main33621-36040iKR12,RR11,21,TR1#..4H197910-198210

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-28020iRR1#,2#197808-198210

main45201-28030iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

main45210-22050iTR15..GEX198101-198210

main45220-28010iKR1#,TR1#197610-198101

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18001iTR15..GEX198101-198210

UPR,W/TILT STEERING

main90363-18038iKR1#,RR1#,2#,TR1#..4H197610-198210

main90363-28001iTR15..GEX198101-198210

LWR,W/TILT STEERING

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-28010iKR1#,TR1#197610-198101

main45205-28020iRR1#,2#197808-198210

main45250-28020iTR15..GEX198101-198210

main45250-28030iKR12,TR1#..CNP,CTM,DLX,HDX,STD,SUE198101-198210

45253COVER, STEERING COLUMN HOLE

main45253-28010iRR1#,2#197808-198210

main45253-87001iKR10,TR1#197610-197708

main45253-87002iKR1#,TR1#197708-197906

main45253-87003iKR1#,TR1#197906-198101

main45253-87004iTR1#..3FC,5F198101-198210

main45253-87005iKR12,TR1#..4H198101-198210

45255PLATE, STEERING COLUMN HOLE COVER

main55672-87001iKR10,TR1#197610-197708

main55672-87002iKR1#,TR1#197708-197906

main55672-87003iKR1#,TR1#197906-198101

main55672-87004iKR12,TR1#198101-198210

45269RETAINER, MAIN SHAFT BEARING

main45269-35010iKR12,RR11,21,TR1#..4H197912-198210

main45269-36010iKR1#,RR1#,2#,TR1#197610-197912

45272CLAMP, STEERING COLUMN, LOWER

main45272-55010iKR1#,TR1#197610-198101

45275BRACKET, STEERING COLUMN, UPPER

main45280-22181iTR15..GEX198101-198209

W/TILT STEERING

main45280-60110iTR15..GEX198209-198210

W/TILT STEERING

main45307-28010iKR1#,RR1#,2#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

sub45307-28011

45281HOUSING, STEERING COLUMN

main45286-28010iKR1#,TR1#197610-197808

UPR

main45286-28010-01iKR11,RR10,20,TR1#..DLX,STD197808-197910

UPR,BLACK

main45286-28010-05iTR15..CTM,SUE197808-197910

UPR,BEIGE

main45286-28010-06iKR12,RR11,21,TR1#..4H197910-198210

UPR,BROWN

main45286-28030iTR1#..(3FC,5F)..(CNP,CTM,HDX,SUE)198101-198210

UPR

main45286-28040iTR15..GEX198101-198210

UPR

main45287-28010iKR1#,TR1#197610-197808

LWR

main45287-28010-01iKR11,RR10,20,TR1#..DLX,STD197808-197910

LWR,BLACK

main45287-28010-05iTR15..CTM,SUE197808-197910

LWR,BEIGE

main45287-28010-06iKR12,RR11,21,TR1#..4H197910-198210

LWR,BROWN

main45287-28030iTR1#..(3FC,5F)..(CNP,CTM,HDX,SUE)198101-198210

LWR

main45287-28040iTR15..GEX198101-198210

LWR

45281EPLATE, SAFETY CAUTION

main45283-22010iKR1#,RR1#,2#,TR1#197610-198210

45288PLATE, STEERING COLUMN COVER

main45288-20010iKR1#,RR1#,2#,TR1#197610-198210

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45271-87001iKR1#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

UPR

main45273-87001iKR1#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

LWR

main45807-28010iTR15..GEX198101-198210

45807CGROMMET(FOR STEERING COLUMN CLAMP)

main90480-45092iKR1#,TR1#..CNP,CTM,DLX,HDX,STD,SUE197610-198210

9016450048

main90164-50048

9020108135

main90201-08135

9111150850

main91111-50850

9161140616

main91611-40616

9165140820

main91651-40820

9165640616

main91656-40616

9321915012

main93219-15012

9331514012

main93315-14012

9411040800

main94110-40800

9451100500

main94511-00500

9451200800

main94512-00800

25 parts on this diagram · 7 diagrams in section
