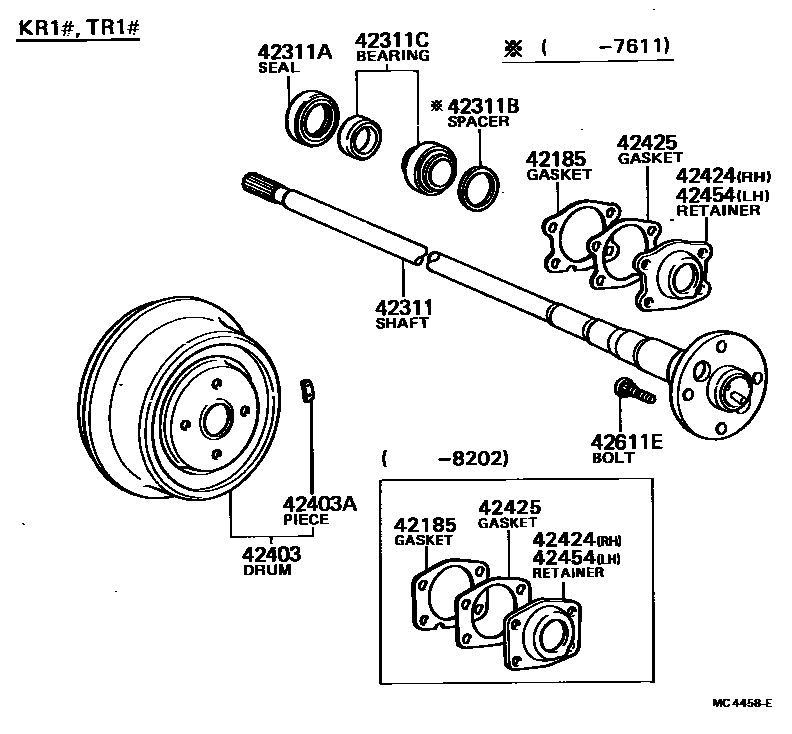

REAR AXLE SHAFT & HUB

0001 1 0002 1

42185GASKET, REAR AXLE HOUSING END

main42185-14020iTR11..5F;KR12,TR15;TR11..DLX198202-198210

main42185-22020iKR1#,TR1#197610-198202

42311SHAFT, REAR AXLE

main42311-22052iKR10,TR1#197610-197611

sub42311-22100

sub90369-35003

main42311-22100iKR1#,TR1#197611-198210

main42311-26010iRR10,20197808-198210

sub42311-26012

sub42421-35050

sub90313-54001

sub90363-40072

main42311-27010iRR11,21..T2197911-198210

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90310-50001iRR11,21..T1,T3198207-198210

sub90310-50006

main90310-50039iRR11,21..T1,T3197808-198207

main90311-52059iKR1#,TR1#197610-198210

main90311-58001iRR11,21..T2197911-198210

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-35153iKR10,TR1#197610-197611

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30011iKR1#,TR1#197610-198210

sub04421-30012

main97144-06308iRR10,20197808-198210

sub90363-40020

42403DRUM SUB-ASSY, REAR BRAKE

main42403-22021iKR1#,TR1#197610-197910

main42431-27020iKR12,TR1#197910-198210

sub42431-14061

main42431-27030iRR11,21..T2197911-198210

main42431-28010iRR10,20197808-198210

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01020iKR1#,TR1#197610-198210

main90937-01021iKR1#,TR1#197610-198210

main90937-01023iKR1#,TR1#197610-198210

main90937-01032iKR1#,TR1#197610-198210

main90937-01033iKR1#,TR1#197610-198210

main90937-01034iKR1#,TR1#197610-198210

main90937-01117iRR11,21..T1,T3197808-198210

main90937-01118iRR11,21..T1,T3197808-198210

main90937-01119iRR10,20197808-198210

main90937-01120iRR10,20197808-198210

main90937-01121iRR11,21..T1,T3197808-198210

main90937-01122iRR11,21..T1,T3197808-198210

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42421-26010iRR11,21..T1,T3197808-198210

main42424-14020iTR11..5F;KR12,TR15;TR11..DLX198202-198210

main42424-21010iKR1#,TR1#197610-198202

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iTR11..5F;KR12,TR15;TR11..DLX198202-198210

main42425-22020iKR1#,TR1#197610-198202

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42421-26010iRR10,20197808-198210

main42454-14010iTR11..5F;KR12,TR15;TR11..DLX198202-198210

main42454-21010iKR1#,TR1#197610-198202

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021iKR10,TR1#197610-197703

*12-1.5PX38-24

sub90942-02035

main90942-02035iKR1#,TR1#197703-198210

*12-1.5PX36-23.5

sub90942-02047

main90942-02037iRR10,20197808-198210

*12-1.5PX40-27.5

sub90942-02049

main90942-02043iRR11,21..T2197911-198210

11 parts on this diagram · 2 diagrams in section
