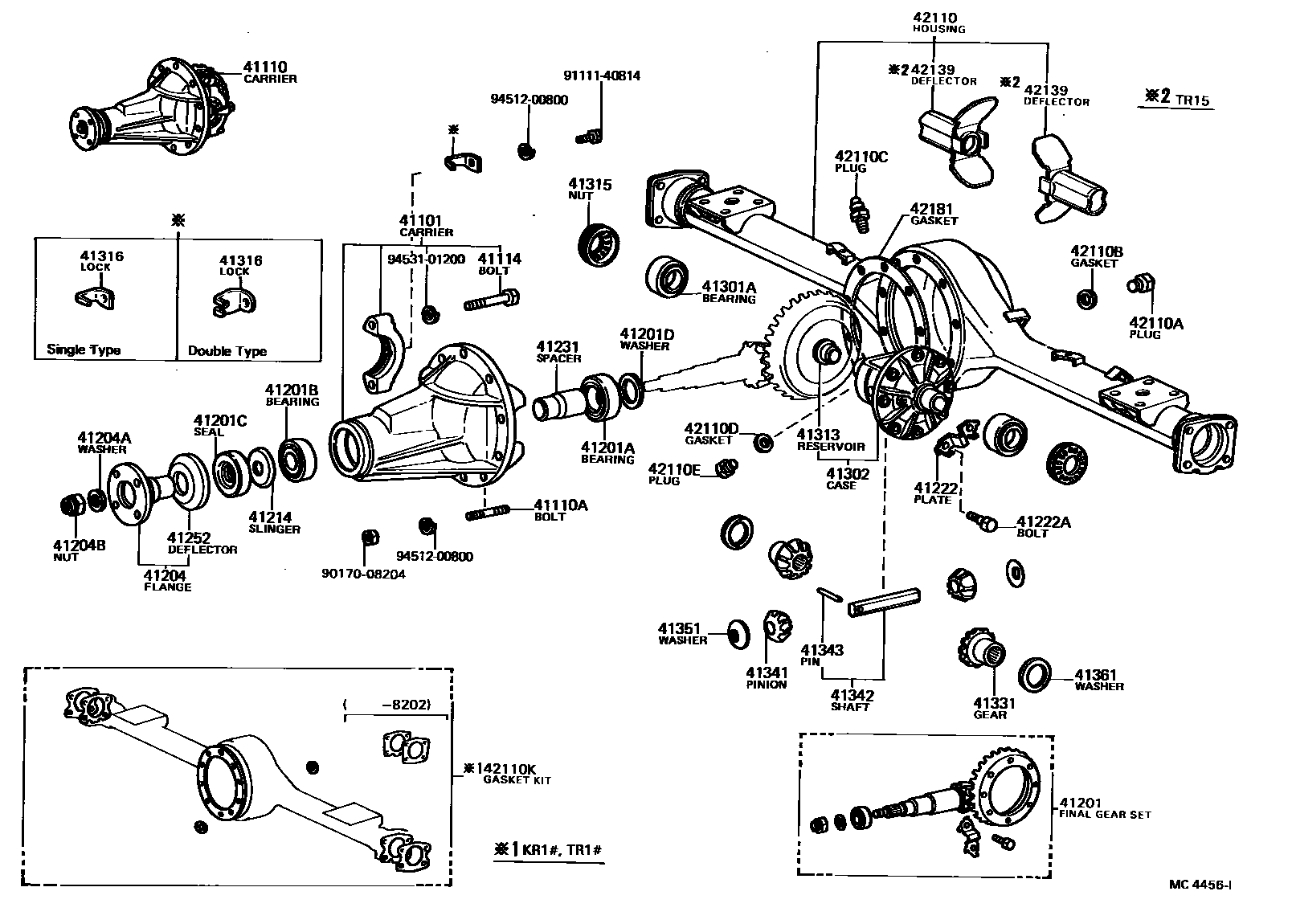

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0003 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-27010iRR11,21..T2197911-198210

main41101-30010iKR1#,TR1#197610-198210

main41101-61010iRR11,21..T1,T3197808-198210

sub41101-35030

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20241iTR15..3FC,4H197808-198210

main41110-21020iTR15..5F198101-198210

main41110-22110iTR10,11197610-198210

sub41110-27120

main41110-27030iKR12197910-198210

sub41110-27100

main41110-27040iKR1#197610-198210

sub41110-27110

main41110-28010iRR11,21..T2197911-198210

R=43:11,*AXC=E312

main41110-35051iRR1#,2#..T1,T3197808-198210

R=35:8,*AXC=G102

sub41110-35071

main41110-61022iRR11,21..T1,T3197808-198210

R=37:9,*AXC=G082

sub41110-35150

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08196iRR11,21..T1,T3197808-198210

sub90116-08333

main90116-08226iRR10,20197808-198210

main90116-08235iKR1#,TR1#197610-198210

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90101-12376iKR1#,RR1#,2#,TR1#197610-198210

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29166iRR11,21..T2197911-198008

R=43:11

sub41201-29167

main41201-29167iRR11,21..T2198008-198210

sub41201-29168

main41201-29216iTR15..5F198101-198210

R=43:10

sub41201-29217

main41201-29275iKR1#197610-198008

R=41:8

sub41201-29276

main41201-29276iKR12198008-198210

R=41:8

sub41201-29277

main41201-29305iKR12197910-198008

R=43:9

sub41201-29306

main41201-29306iKR12198008-198210

R=43:9

sub41201-29307

main41201-39207iRR1#,2#..T1,T3197808-198210

R=35:8

sub41201-39426

main41201-39217iTR15197808-198008

R=41:10

sub41201-39218

main41201-39218iTR15..3FC,4H198008-198210

sub41201-39555

main41201-39285iTR10,11197610-198008

R=41:9

sub41201-39286

main41201-39286iTR11198008-198210

R=41:9

sub41201-39287

main41201-69115iRR10,20..T2197808-198210

R=37:9

sub41201-39545

41201ABEARING (FOR REAR DRIVE PINION REAR)

main97609-32307iKR1#,RR1#,2#,TR1#197610-198210

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iKR1#,RR1#,2#,TR1#197812-198210

main97609-30306iKR1#,RR10,20,TR1#197610-197812

sub90366-30008

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38133iKR1#,RR1#,2#,TR1#197610-198210

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35396iKR12,TR1#;RR11,21..T2197610-198210

main90201-35397iKR12,TR1#;RR11,21..T2197610-198210

main90201-35398iKR1#,TR1#197610-198210

main90201-35399iKR1#,TR1#197610-198210

main90201-35400iKR1#,TR1#197610-198210

main90201-35401iKR12,TR1#;RR11,21..T2197610-198210

main90201-35402iKR1#,TR1#197610-198210

main90201-35403iKR1#,TR1#197610-198210

main90201-35404iKR1#,TR1#197610-198210

main90201-35434iKR12,TR1#;RR11,21..T2197610-198210

sub90201-35515

main90201-35435iKR1#,TR1#197610-198210

sub90201-35516

main90201-35436iKR1#,TR1#197610-198210

sub90201-35517

main90201-35437iKR1#,TR1#197610-198210

sub90201-35518

main90201-35438iKR12,TR1#;RR11,21..T2197610-198210

main90201-35439iKR1#,TR1#197610-198210

main90201-35440iKR12,TR1#;RR11,21..T2197610-198210

main90201-35441iKR1#,TR1#197610-198210

main90201-35497iRR11,21..T1,T3197808-198210

main90201-35498iRR10,20197808-198210

main90201-35499iRR10,20197808-198210

main90201-35500iRR10,20197808-198210

main90201-35501iRR10,20197808-198210

main90201-35502iRR11,21..T1,T3197808-198210

main90201-35503iRR10,20197808-198210

main90201-35504iRR11,21..T1,T3197808-198210

main90201-35505iRR10,20197808-198210

main90201-35506iRR10,20197808-198210

main90201-35507iRR11,21..T1,T3197808-198210

main90201-35508iRR11,21..T1,T3197808-198210

main90201-35509iRR10,20197808-198210

main90201-35510iRR10,20197808-198210

main90201-35511iRR10,20197808-198210

main90201-35512iRR11,21..T1,T3197808-198210

main90201-35513iRR11,21..T1,T3197808-198210

main90201-35514iRR11,21..T1,T3197808-198210

main90201-35515iRR10,20197808-198210

main90201-35516iRR11,21..T1,T3197808-198210

main90201-35517iRR10,20197808-198210

main90201-35518iRR11,21..T1,T3197808-198210

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iKR1#,TR1#197610-198210

main41204-26011iRR10,20197808-198210

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-18485iKR1#,TR1#197610-198210

main90201-20005iRR11,21..T1,T3197808-198210

41204BNUT (FOR REAR DRIVE PINION)

main90179-18001iKR12,TR1#;RR11,21..T2198008-198210

main90179-18060iKR12,TR1#;RR11,21..T2197610-198008

main90179-20001iRR11,21..T1,T3197808-198210

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iRR11,21..T1,T3198102-198210

main41214-30021iKR12,TR1#;RR11,21..T2197610-198210

main90201-28002iRR10,20197808-198102

sub41214-26010

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-30030iKR12,TR1#;RR11,21..T2197610-198210

sub41222-28010

main41222-35020iRR10,20197808-198210

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iKR1#,RR1#,2#,TR1#197610-198210

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22020iKR1#,TR1#197610-198210

main41231-39010iRR11,21..T1,T3197808-198210

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-30010iRR10,20197808-198210

main41252-30010iKR1#,TR1#197610-198210

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066iKR1#,RR1#,2#,TR1#197610-198210

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-30021iKR1#,TR1#197610-198008

sub41311-30022

main41311-30022iKR12,TR1#;RR11,21..T2198008-198210

main41311-35030iRR10,20197808-198209

sub41311-40020

main41311-40020iRR11,21..T1,T3198209-198210

sub41311-40021

sub90105-11063

41313RESERVOIR, DIFFERENTIAL CASE OIL

main41313-30020iKR1#,TR1#197610-198008

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-30010iKR1#,TR1#197610-198210

main41315-35010iRR11,21..T1,T3197808-198210

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iKR1#,RR1#,2#,TR1#197610-198210

SINGLE TYPE

main41317-30010iKR12,TR1#;RR11,21..T2197610-198210

DOUBLE TYPE

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-30020iKR1#,TR1#197610-198008

N=16

sub41331-30021

sub41361-22020

sub41361-22030

sub41361-22040

sub41361-22140

sub41361-22150

sub41361-22160

main41331-30021iKR12,TR1#;RR11,21..T2198008-198210

N=16

sub41331-22070

main41331-35010iRR10,20197808-198210

N=16

sub41331-35011

41341PINION, REAR DIFFERENTIAL

main41341-30010iKR1#,TR1#197610-198008

N=10

sub41341-30011

sub41351-30032

main41341-30011iKR12,TR1#;RR11,21..T2198008-198210

N=10

main41341-39020iRR11,21..T1,T3197808-198210

N=10

sub41341-35020

sub41351-30052

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39015iKR1#,TR1#197610-198210

sub41342-30011

main41342-39610iRR10,20197808-198210

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iKR12,TR1#;RR11,21..T2197610-198210

main90250-06085iRR11,21..T1,T3197808-198210

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30031iKR1#,TR1#197610-198008

main41351-30032iKR12,TR1#;RR11,21..T2198008-198210

main41351-30051iRR10,20197808-198210

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iKR12,TR1#;RR11,21..T2198008-198210

main41361-22030iKR12,TR1#;RR11,21..T2198008-198210

main41361-22040iKR12,TR1#;RR11,21..T2198008-198210

main41361-22140iKR12,TR1#;RR11,21..T2198008-198210

main41361-22150iKR12,TR1#;RR11,21..T2198008-198210

main41361-22160iKR12,TR1#;RR11,21..T2198008-198210

main41361-30020iKR1#,TR1#197610-198008

T=1.4-1.5

main41361-40021iRR10,20197808-198210

main41362-30020iKR12,TR1#;RR11,21..T2197610-198008

T=1.5-1.6

main41362-40021iRR10,20197808-198210

main41363-30010iKR1#,TR1#197610-198008

T=1.6-1.7

main41363-40021iRR11,21..T1,T3197808-198210

main41364-30010iKR12,TR1#;RR11,21..T2197610-198008

T=1.7-1.8

42110HOUSING ASSY, REAR AXLE

main42110-28010iKR1#,TR1#..DLX,STD197610-197910

W/O LSPV

sub42110-28011

sub90930-03031

main42110-28011iKR12,TR1#197910-198210

W/O LSPV

main42110-28020iKR1#,TR1#197610-197910

W/LSPV

sub42110-28021

sub90930-03031

main42110-28021iKR12,TR11197910-198210

W/LSPV

main42110-28030iRR10,20197808-197911

main42110-28060iRR11,21..T1,T3197911-198210

main42110-28070iRR11,21..T2197911-198210

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iKR1#,RR1#,2#,TR1#197610-198210

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iKR1#,RR1#,2#,TR1#197610-198210

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03019iKR1#,TR1#197610-197910

main90930-03031iRR10,20197808-198210

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iKR1#,RR1#,2#,TR1#197610-198210

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iKR1#,RR1#,2#,TR1#197610-198210

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-20030iTR11..5F;KR12,TR15;TR11..DLX198202-198210

main04412-23010iKR1#,TR1#197610-198202

main04412-35010iRR10,20197808-198210

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-22010iTR15198101-198210

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-27010iRR11,21..T2197911-198210

main42181-30010iKR1#,TR1#197610-198210

main42181-35010iRR10,20197808-198210

9017008204

main90170-08204

9111140814

main91111-40814

9451200800

main94512-00800

9453101200

main94531-01200

41 parts on this diagram · 2 diagrams in section
