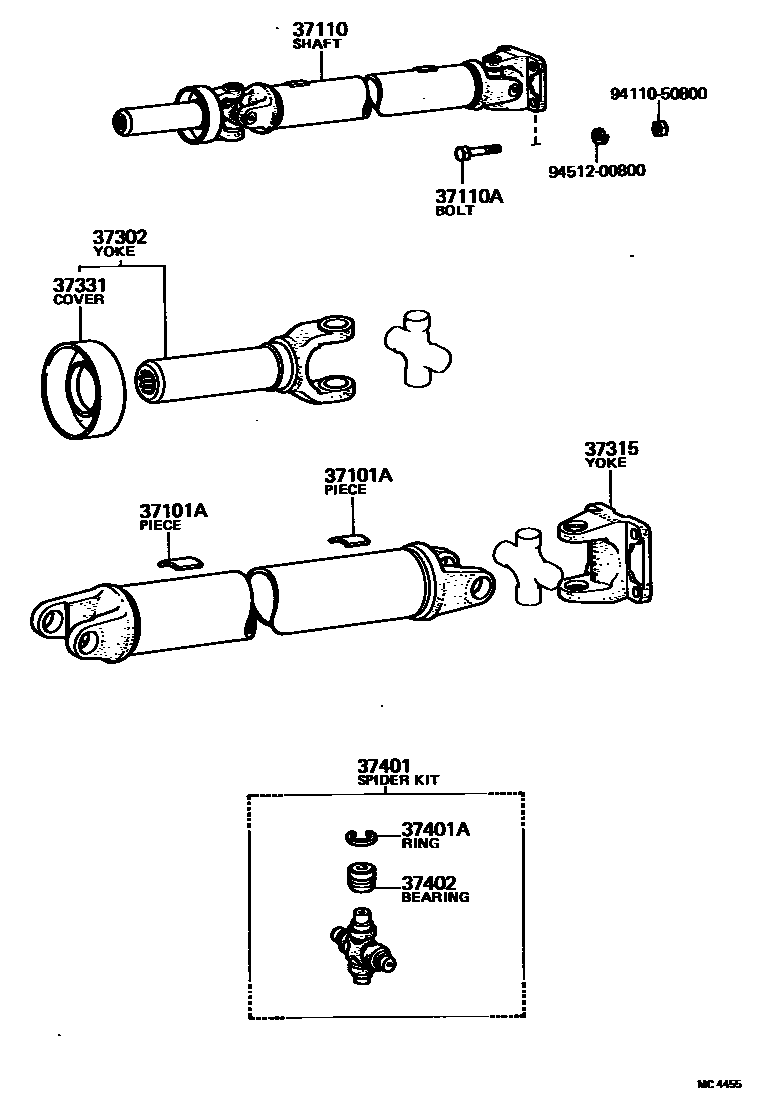

PROPELLER SHAFT & UNIVERSAL JOINT

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01003iRR11,21..T1,T3197808-198210

sub90937-01132

main90937-01004iRR11,21..T1,T3197808-198210

main90937-01005iRR10,20197808-198210

main90937-01029iRR10,20197808-198210

5G

main90937-01030iRR10,20197808-198210

15G

main90937-01031iRR11,21..T1,T3197808-198210

25G

main90937-01132iKR1#,RR1#,2#,TR1#197610-198210

main90937-01136iKR1#,RR1#,2#,TR1#197610-198210

main90937-01140iKR1#,RR1#,2#,TR1#197610-198210

main90937-01147iKR1#,RR1#,2#,TR1#197610-198210

main90937-01148iKR1#,RR1#,2#,TR1#197610-198210

main90937-01149iKR1#,RR1#,2#,TR1#197610-198210

main90937-01150iKR1#,RR1#,2#,TR1#197610-198210

main90937-01151iKR1#,RR1#,2#,TR1#197610-198210

main90937-01152iKR1#,RR1#,2#,TR1#197610-198210

main90937-01153iKR1#,RR1#,2#,TR1#197610-198210

main90937-01154iKR1#,RR1#,2#,TR1#197610-198210

main90937-01155iKR1#,RR1#,2#,TR1#197610-198210

main90937-01156iKR1#,RR1#,2#,TR1#197610-198210

main90937-01157iKR1#,RR1#,2#,TR1#197610-198210

main90937-01158iKR1#,RR1#,2#,TR1#197610-198210

37110SHAFT ASSY, PROPELLER

main37110-27050iTR1#..5F198101-198210

main37110-28020iTR1#;RR11..T2197610-198210

main37110-28030iKR1#197610-198210

main37110-28040iRR10197808-198210

main37110-28050iRR20197808-198210

main37110-28060iRR21..T2197911-198210

main37110-28070iTR15..3FC198101-198210

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08214iKR1#,RR1#,2#,TR1#197610-198210

sub90101-08262

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iKR12,TR1#;RR11,21..T2197610-198210

main37302-35010iRR11,21..T1,T3197808-198210

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iKR1#,TR1#197610-198210

main37315-35021iRR10,20197808-198210

37331COVER, SLIDING SHAFT DUST

main37331-30010iKR1#,RR1#,2#,TR1#197610-198210

37401SPIDER KIT, UNIVERSAL JOINT

main04371-22010iKR1#,TR1#197610-198210

main04371-25010iRR10,20197808-198210

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90521-29070iKR1#,RR1#,2#,TR1#197610-198210

main90521-29071iKR1#,RR1#,2#,TR1#197610-198210

main90521-29072iKR1#,RR1#,2#,TR1#197610-198210

main90521-29073iKR1#,TR1#;RR11,21..T2197610-198210

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020iKR1#,TR1#197610-198210

main37402-25020iRR10,20197808-198210

9411050800

main94110-50800

9451200800

main94512-00800

11 parts on this diagram · 1 diagram in section
