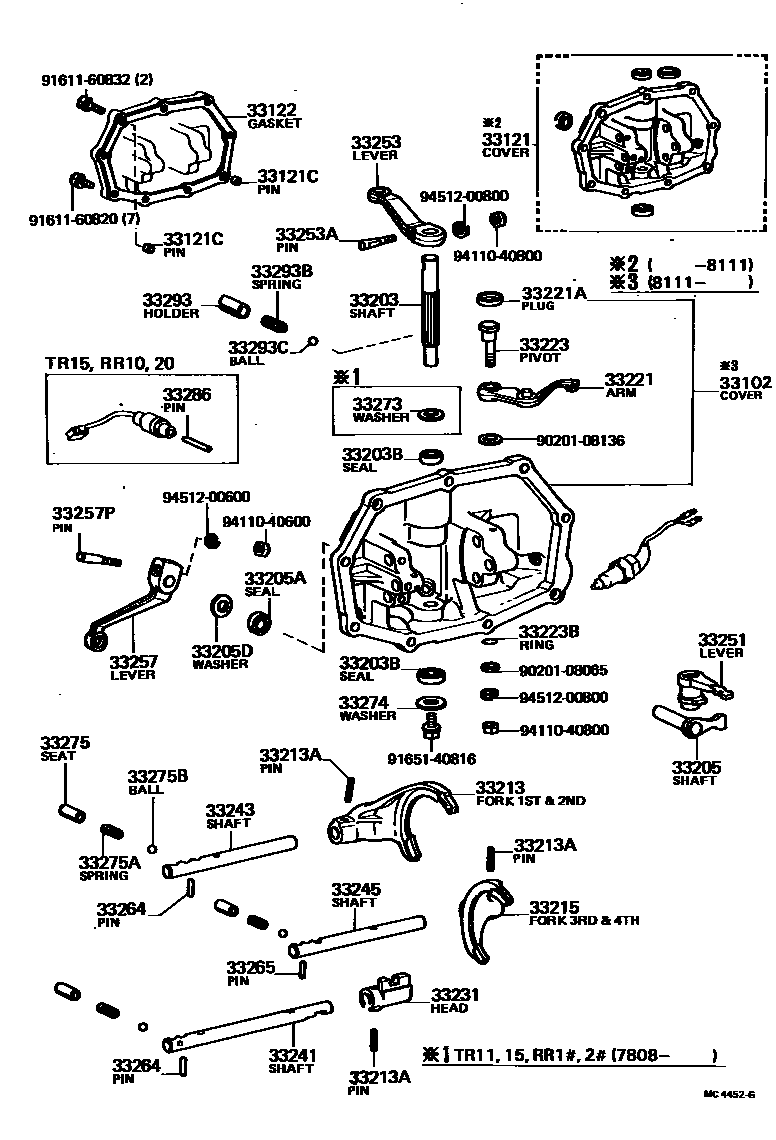

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-26010iKR12,RR11,21,TR11..4H198111-198210

sub33102-35040

main33102-26020iTR15..4H198111-198210

33121COVER, MANUAL TRANSMISSION CASE

main33121-26901iKR10,TR1#197610-197704

main33121-26903iTR15..4H197808-198111

sub33102-26020

main33121-26904iKR12,RR11,21,TR11..4H197704-198111

sub33102-26010

main33121-28010iTR15..5F198101-198210

main33121-35060iTR11..5F198101-198210

sub33121-28010

sub90341-18049

sub90430-18008

33121CPIN(FOR TRANSMISSION CASE COVER)

main90250-10214iTR1#..5F198101-198210

main90253-11001iKR1#,RR1#,2#,TR1#..4H197610-198210

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-30020iKR1#,RR1#,2#,TR1#..4H197610-198210

main33122-35020iTR1#..5F198101-198210

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33261-26021iKR1#,RR1#,2#,TR1#..4H197610-198210

main33261-26030iTR1#..5F198105-198210

main33261-26031iTR1#..5F198101-198105

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-13050iKR1#,RR1#,2#,TR1#..4H197610-198210

LWR

main90312-15003iKR1#,RR1#,2#,TR1#..4H197610-198210

UPR

main90312-20016iTR1#..5F198101-198210

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-26010iRR11,21197911-198210

main33262-27010iKR10,TR1#197610-197704

main33262-28010iRR10,20197704-198210

main33262-35031iTR1#..5F198101-198210

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iKR1#,RR1#,2#,TR1#..MTM197610-198210

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main94612-11300iKR1#,RR1#,2#,TR1#..MTM197610-198210

33213FORK, 1ST & 2ND SHIFT

main33212-26010iKR10,TR1#197610-197704

main33212-28010iKR1#,RR1#,2#,TR1#..4H197704-198210

main33212-35010iTR1#..5F198101-198210

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iKR1#,RR1#,2#,TR1#..MTM197610-198210

L=22.0

main90254-05016iTR1#..5F198109-198210

L=25.5

33215FORK, 3RD & 4TH SHIFT

main33213-26020iKR1#,RR1#,2#,TR1#..4H197610-198210

main33213-35020iTR1#..5F198101-198210

33221ARM, REVERSE SHIFT

main33201-35020iTR1#..5F198101-198210

main33221-30010iKR1#,RR1#,2#,TR1#..4H197610-198210

33221APLUG, TIGHT(FOR REVERSE SHIFT ARM)

main96411-12500iKR1#,RR1#,2#,TR1#..4H197610-198210

sub96411-42500

33223PIVOT, SHIFT ARM

main33223-30011iKR1#,RR1#,2#,TR1#..4H197610-198210

main33223-35020iTR1#..5F198101-198210

33223BRING, O(FOR SHIFT ARM PIVOT)

main90301-08001iKR1#,RR1#,2#,TR1#..4H197610-198210

main96710-01010iTR1#..5F198101-198110

main96711-19010iTR1#..5F198110-198210

33231HEAD, REVERSE SHIFT

main33202-26011iTR1#..5F198101-198210

main33231-26010iKR1#,RR1#,2#,TR1#..4H197704-198210

main33231-30010iKR10,TR1#197610-197704

33241SHAFT, REVERSE SHIFT FORK

main33241-26010iKR1#,RR1#,2#,TR1#..4H197610-198210

main33245-35020iTR1#..5F198101-198210

33243SHAFT, 1ST & 2ND SHIFT FORK

main33242-26010iKR1#,RR1#,2#,TR1#..4H197610-198210

main33242-35010iTR1#..5F198101-198210

33245SHAFT, 3RD & 4TH SHIFT FORK

main33243-26010iKR1#,TR10,11197610-198210

main33243-26020iTR15..4H197808-198210

main33243-28010iTR15..5F198101-198210

main33243-35030iTR11..5F198101-198102

sub33243-28010

33251LEVER, SHIFT & SELECT

main33251-26010iKR1#,RR1#,2#,TR1#..4H197704-198210

main33251-26030iTR1#..5F198101-198210

main33251-30030iKR10,TR1#197610-197704

33253LEVER, SHIFT OUTER, NO.1

main33253-26012iRR1#,2#197808-198210

main33253-28010iKR1#,TR1#..4H197610-198210

main33253-28020iTR1#..5F198101-198210

33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-30010iKR1#,RR1#,2#,TR1#..4H197610-198210

sub33281-16020

main33282-57010iTR1#..5F198101-198210

33257LEVER, SELECT OUTER

main33257-26011iRR1#,2#197808-198210

main33257-28010iKR1#,TR1#..4H197610-198210

main33257-28020iTR1#..5F198101-198210

33257PPIN, SELECT OUTER LEVER LOCK

main33282-35010iKR1#,RR1#,2#,TR1#..4H197610-198210

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main33264-30010iKR1#,RR1#,2#,TR1#..4H197610-198210

main90361-10001iTR1#..5F198101-198210

L=39.2

main90361-10008iTR1#..5F198101-198210

L=14.9

33265PIN, SHIFT INTERLOCK, NO.2

main33265-30010iKR1#,RR1#,2#,TR1#..4H197610-198210

main90250-05010iTR1#..5F198101-198210

33273WASHER, SHIFT LEVER SHAFT HOUSING, NO.1

main90201-15137iRR10,20197808-198210

33274WASHER, SHIFT LEVER SHAFT HOUSING, NO.2

main94612-11300iKR1#,RR1#,2#,TR1#..4H197610-198210

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-10010iKR1#,RR1#,2#,TR1#..4H197610-198210

main90341-12003iTR1#..5F198101-198210

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-13006iTR1#..5F198102-198210

main90501-14047iTR1#..5F198101-198102

sub90501-13006

main90501-14638iKR1#,RR1#,2#,TR1#..4H197610-198210

33275BBALL, SHAFT DETENT

main90360-10003iKR1#,RR1#,2#,TR1#..MTM197610-198210

33286PIN, SWITCH PRESSURE

main33286-26010iRR10,20,TR15197808-198210

33293HOLDER, REVERSE RESTRICT BALL

main33276-10010iKR1#,RR1#,2#,TR1#..4H197610-198210

33293BSPRING, COMPRESSION (FOR REVERSE RESTRICT BALL)

main90501-14007iKR1#,RR1#,2#,TR1#..4H197610-198210

33293CBALL (FOR REVERSE RESTRICT)

main90360-10003iKR1#,RR1#,2#,TR1#..4H197610-198210

9020108065

main90201-08065

9020108136

main90201-08136

9161160820

main91611-60820

9161160832

main91611-60832

9165140816

main91651-40816

9411040600

main94110-40600

9411040800

main94110-40800

9451200600

main94512-00600

9451200800

main94512-00800

45 parts on this diagram · 2 diagrams in section
