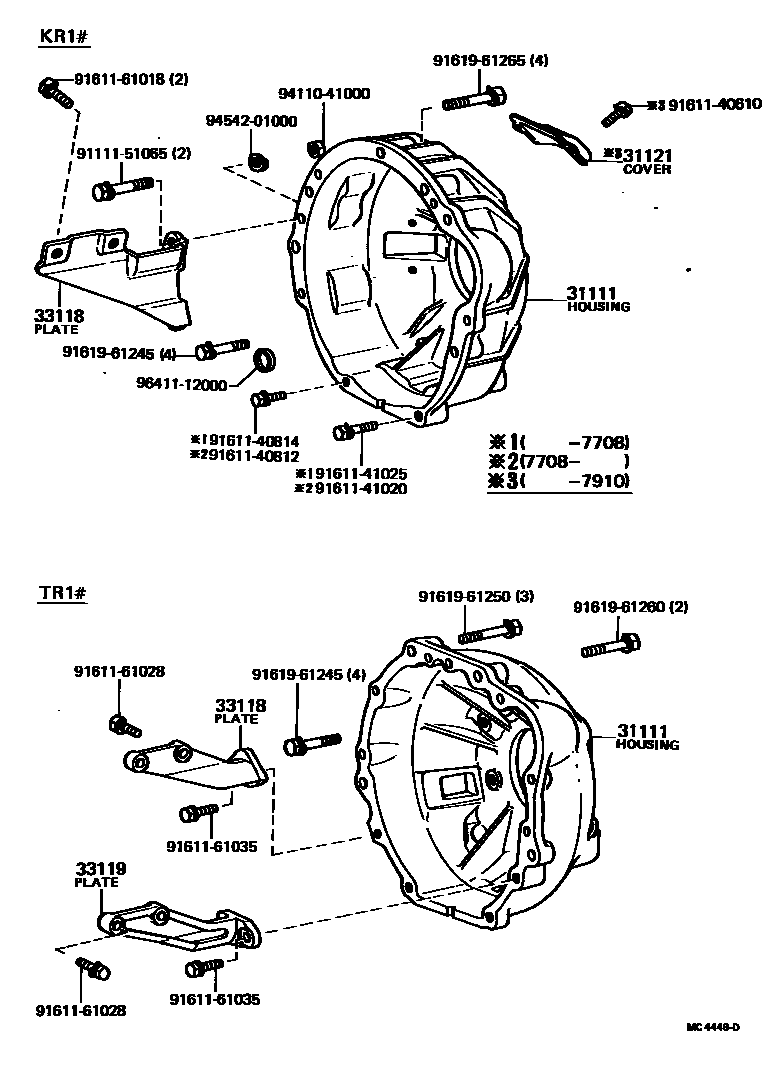

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1

31111HOUSING, CLUTCH

main31111-20060iTR1#197910-198007

sub11355-25012

sub91611-61060

sub94110-51000

main31111-20100iTR11197610-197808

COLD SPEC

main31111-20190iTR1#..4H198007-198210

main31111-27014iKR1#197610-197910

main31111-27020iKR12197910-198210

31121COVER, CLUTCH HOUSING, NO.1

main31121-30030iKR1#197610-197910

33118PLATE, STIFFENER, RH(MTM)

main33118-10010iKR1#197610-198210

main33118-12020iTR1#..MTM197610-198210

33119PLATE, STIFFENER, LH(MTM)

main33119-12011iTR1#..MTM197610-198210

9111151065

main91111-51065

9161140610

main91611-40610

9161140812

main91611-40812

9161140814

main91611-40814

9161141020

main91611-41020

9161141025

main91611-41025

9161161018

main91611-61018

9161161028

main91611-61028

9161161035

main91611-61035

9161961245

main91619-61245

9161961250

main91619-61250

9161961260

main91619-61260

9161961265

main91619-61265

9411041000

main94110-41000

9454201000

main94542-01000

9641112000

main96411-12000

20 parts on this diagram · 3 diagrams in section
