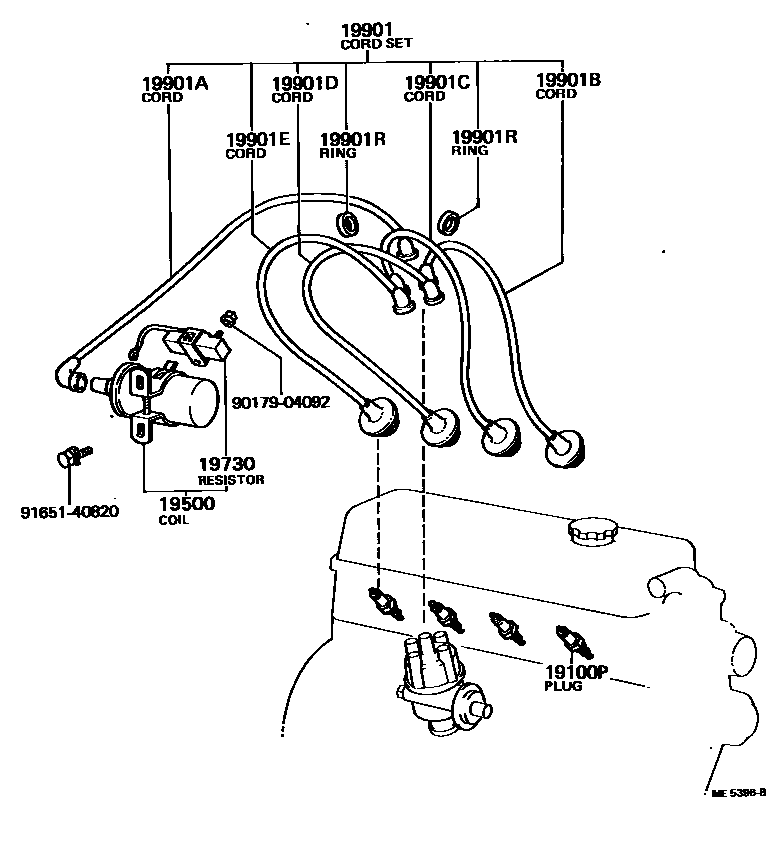

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01056×4i2TJ..TR10,11197610-198210

main90919-01059×4i12RJ..RR1#,2#197610-198210

sub90919-01064

main90919-01062×4i12T..TR11197610-197808

W20ET(DENSO)

main90919-01063×4i12T..TR11197610-197808

BP6EK(NGK)

main90919-01087×4i13TU..TR15197910-198210

BP5EK-A(NGK)

main90919-01088×4i13TU..TR15197808-197910

BP6EK-A(NGK)

main90919-01089×4i13TU..TR15197808-197910

W20ET-S(DENSO)

main90919-01090×4i13TU..TR15197910-198210

W16ET-S(DENSO)

19500COIL ASSY, IGNITION

main90919-02044i3KJ..KR10197610-197706

main90919-02092i2TJ..TR10197610-197910

main90919-02093i12T..TR11197610-197808

main90919-02100i3KJ,4KJ..KR1#197706-197910

main90919-02104i12RJ..RR1#,2#197808-198210

sub90919-02111

main90919-02106i13TU..TR15197808-198210

main90919-02120i4KJ..KR12197910-198210

main90919-02122i2TJ..TR11197910-198210

sub90919-02118

main90919-02126i4KJ..KR12197910-198210

COLD SPEC

19730RESISTOR, IGNITION COIL

main90919-04004i3KJ..KR10197610-197706

sub90919-04005

main90919-04019i12RJ..RR10,20197808-197910

main90919-04032i4KJ..KR12197910-198210

sub90919-04033

main90919-04036i2TJ..TR10,11197610-198210

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21077i3KJ,4KJ..KR1#197610-198210

main90919-21130i12T..TR11197610-197808

main90919-21131i2TJ..TR10,11197610-198210

main90919-21180i13TU..TR15197808-198210

main90919-21204i12RJ..RR10,20197808-197906

main90919-21247i12RJ..RR1#,2#197906-198210

19901ACORD, COIL RESISTIVE

main90919-13045i3KJ,4KJ..KR1#197610-198210

main90919-13065i12T,2TJ..TR10,11197610-198210

main90919-13100i13TU..TR15197808-198210

main90919-13112i12RJ..RR10,20197808-197906

main90919-13148i12RJ..RR1#,2#197906-198210

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12082i12RJ..RR10,20197808-197906

main90919-12085i3KJ..KR10197610-197802

main90919-12170i12T,13TU..TR11,15197610-198210

main90919-12174i2TJ..TR10,11197610-198210

main90919-12228i4KJ..KR1#197802-198210

sub90919-12481

main90919-12308i12RJ..RR1#,2#197906-198210

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12085i3KJ..KR10197610-197802

main90919-12145i12RJ..RR10,20197808-197906

main90919-12171i12T,13TU..TR11,15197610-198210

main90919-12175i2TJ..TR10,11197610-198210

main90919-12228i4KJ..KR1#197810-198210

sub90919-12481

main90919-12229i4KJ..KR11197802-197810

main90919-12310i12RJ..RR1#,2#197906-198210

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12085i3KJ..KR10197610-197802

main90919-12145i12RJ..RR10,20197808-197906

main90919-12172i12T,13TU..TR11,15197610-198210

main90919-12176i2TJ..TR10,11197610-198210

main90919-12228i4KJ..KR1#197810-198210

sub90919-12481

main90919-12229i4KJ..KR11197802-197810

main90919-12310i12RJ..RR1#,2#197906-198210

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12085i3KJ..KR10197610-197802

main90919-12146i12RJ..RR10,20197808-197906

main90919-12173i12T,13TU..TR11,15197610-198210

main90919-12177i2TJ..TR10,11197610-198210

main90919-12228i4KJ..KR1#197802-198210

sub90919-12481

main90919-12311i12RJ..RR1#,2#197906-198210

19901RRING, RUBBER SPARK PLUG RESISTIVE CORD

main90202-11067×2i12RJ..RR1#,2#197610-198210

9017904092

main90179-04092

9165140820

main91651-40820

12 parts on this diagram · 4 diagrams in section
