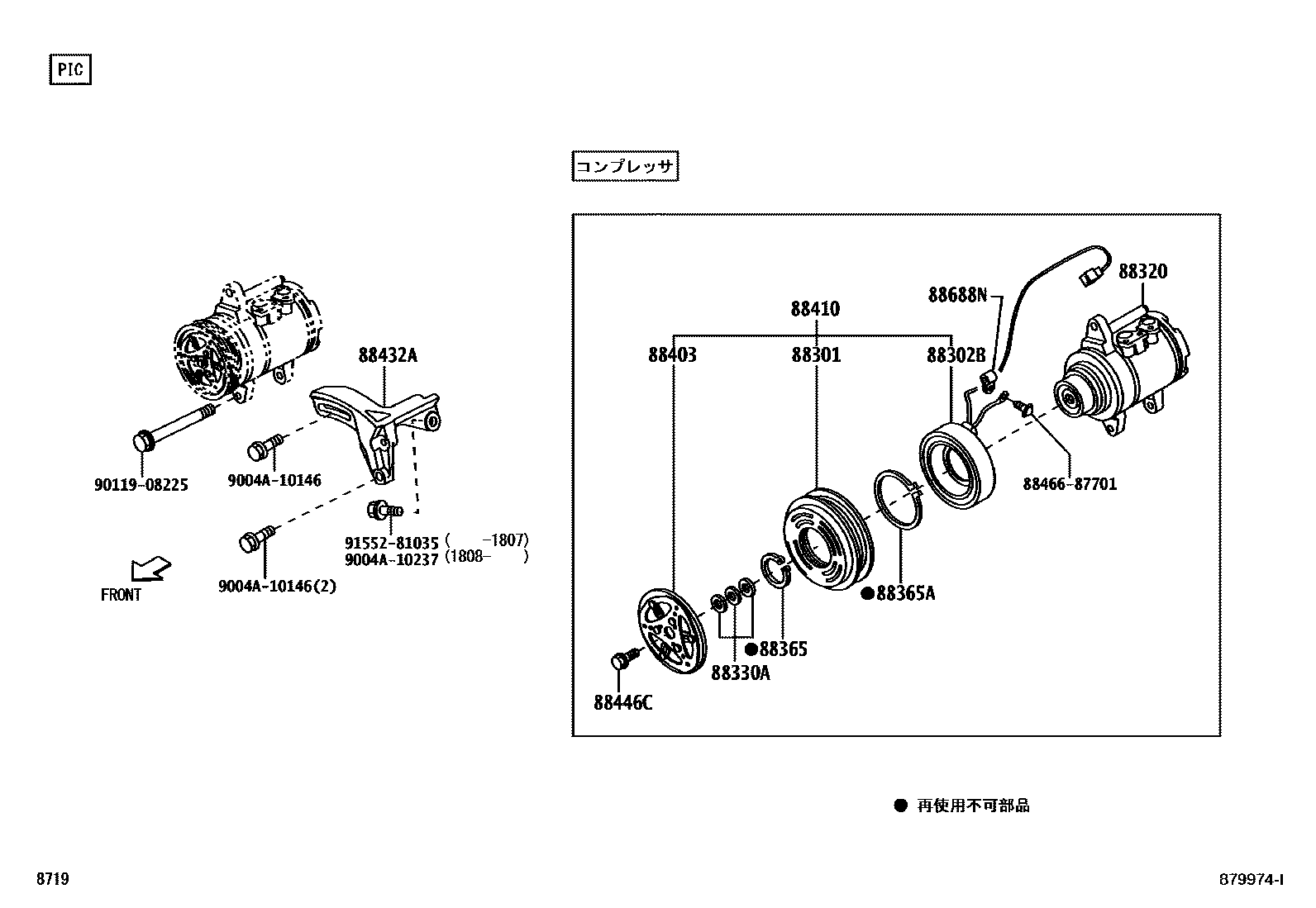

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-BZ060iS402,412..PIC200801-202007

main88412-BZ070iS402,412..VAN200801-202503

main88412-BZ160iS403,413..PIC..CBU202007

88302BSTATOR, MAGNET CLUTCH

main88411-BZ060iS402,412..PIC200801-202007

main88411-BZ070iS402,412..VAN200801-202007

main88411-BZ240iS403,413..PIC..CBU202007

main88411-BZ250iS403,413..VAN..5F202007-202503

88320COMPRESSOR ASSY, COOLER

main88320-BZ110iS402,412..PIC200801-202007

main88320-BZ120iS402,412..VAN200801-202503

main88320-BZ370iS403,413..PIC..CBU202007

88330AWASHER (FOR MAGNET CLUTCH)

main88318-87704iS402,412200801-202007

main88318-87705iS402,412200801-202007

main88318-87706iS402,412200801-202007

88365RING, SNAP

main90099-07065iS403,413..VAN..5F202007-202503

main90099-07125iS403,413..PIC..CBU200801-202007

88365ARING, SNAP (FOR COMPRESSOR)

main90099-07114iS403,413..PIC;S403,413..VAN..4FC200801-202503

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-87301iS403,413..IV;S403,413..VAN..4FC201108-202503

main88403-BZ040iS402..PIC200801-200806

sub88403-BZ070

main88403-BZ050iS402,412..VAN200801-201108

sub88403-87301

main88403-BZ070iS402,412..PIC200806-202007

main88403-BZ080iS403,413..PIC..CBU202007

88410CLUTCH ASSY, MAGNET

main88410-BZ130iS402,412..PIC200801-202007

sub88410-BZ510

main88410-BZ140iS402,412..VAN200801-201108

sub88410-BZ141

main88410-BZ141iS402,412..VAN201108-202007

main88410-BZ360iS403,413..PIC..CBU202007

main88410-BZ370iS403,413..VAN..5F202007-202503

88432AATTACHMENT, COMPRESSOR

main88437-BZ020iS402,412..PIC200801-202007

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iS403,413..PIC;S403,413..VAN..4FC200806-202503

main90099-04598iS402,412..VAN200801-202007

88688NBRACKET, COOLER

main85369-87702iS402..PIC200801-200809

main88569-87107iS412;S402..PIC200806-202007

8846687701

main88466-87701

9004A10146

main9004A-10146

9004A10237

main9004A-10237

9011908225

main90119-08225

9155281035

main91552-81035

16 parts on this diagram · 4 diagrams in section
